Description

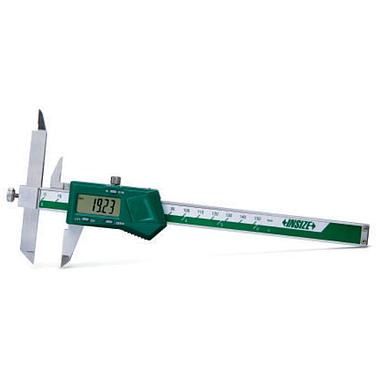

The INSIZE 1186‑150A Digital Offset Caliper is engineered for measuring stepped or offset surfaces where straight calipers cannot reach directly. The left jaw is adjustable — it can slide up and down — enabling you to measure recesses, ledges, and steps accurately.

It offers a measuring range of 0 to 150 mm (0 to 6 inches), with a fine resolution of 0.01 mm (0.0005″) and accuracy of ±0.04 mm. The tool supports functions such as zero setting, mm/inch conversion, an auto power-off mechanism, and optional data output via cable. The durable stainless steel construction ensures longevity in workshop and industrial settings. The jaw's movable design gives flexibility for complex measurement tasks.

Key Features:

Offset jaw design for measuring stepped surfaces
Left jaw slides vertically for access to internal steps
Digital display with mm/inch conversion
Resolution: 0.01 mm
Accuracy: ±0.04 mm
Zero reset and preset capability
Auto power-off to save battery life
Optional data output via cable
Sturdy stainless steel build

Specifications Table:

Specification	Value
Measuring Range	0 – 150 mm / 0 – 6 in
Resolution	0.01 mm / 0.0005 in
Accuracy	±0.04 mm
Movable Jaw Travel (d)	Sliding left jaw for stepped surfaces
Functions	On/Off, Zero, mm/inch conversion, Preset
Power / Auto Off	Auto power-off
Data Output	Cable interface (optional)
Material	Stainless Steel

INSIZE Digital Offset Caliper 0‑150 mm | 1186‑150A

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

SKU: 1186-150

434,000 IQD

Shipped today? Order within: Sep 07, 2026 17:00:00 +0300

Shipped today? Order within: Sep 07, 2026 17:00:00 +0300

Description

The INSIZE 1186‑150A Digital Offset Caliper is engineered for measuring stepped or offset surfaces where straight calipers cannot reach directly. The left jaw is adjustable — it can slide up and down — enabling you to measure recesses, ledges, and steps accurately.

It offers a measuring range of 0 to 150 mm (0 to 6 inches), with a fine resolution of 0.01 mm (0.0005″) and accuracy of ±0.04 mm. The tool supports functions such as zero setting, mm/inch conversion, an auto power-off mechanism, and optional data output via cable. The durable stainless steel construction ensures longevity in workshop and industrial settings. The jaw's movable design gives flexibility for complex measurement tasks.

Key Features:

Offset jaw design for measuring stepped surfaces
Left jaw slides vertically for access to internal steps
Digital display with mm/inch conversion
Resolution: 0.01 mm
Accuracy: ±0.04 mm
Zero reset and preset capability
Auto power-off to save battery life
Optional data output via cable
Sturdy stainless steel build

Specifications Table:

Specification	Value
Measuring Range	0 – 150 mm / 0 – 6 in
Resolution	0.01 mm / 0.0005 in
Accuracy	±0.04 mm
Movable Jaw Travel (d)	Sliding left jaw for stepped surfaces
Functions	On/Off, Zero, mm/inch conversion, Preset
Power / Auto Off	Auto power-off
Data Output	Cable interface (optional)
Material	Stainless Steel
