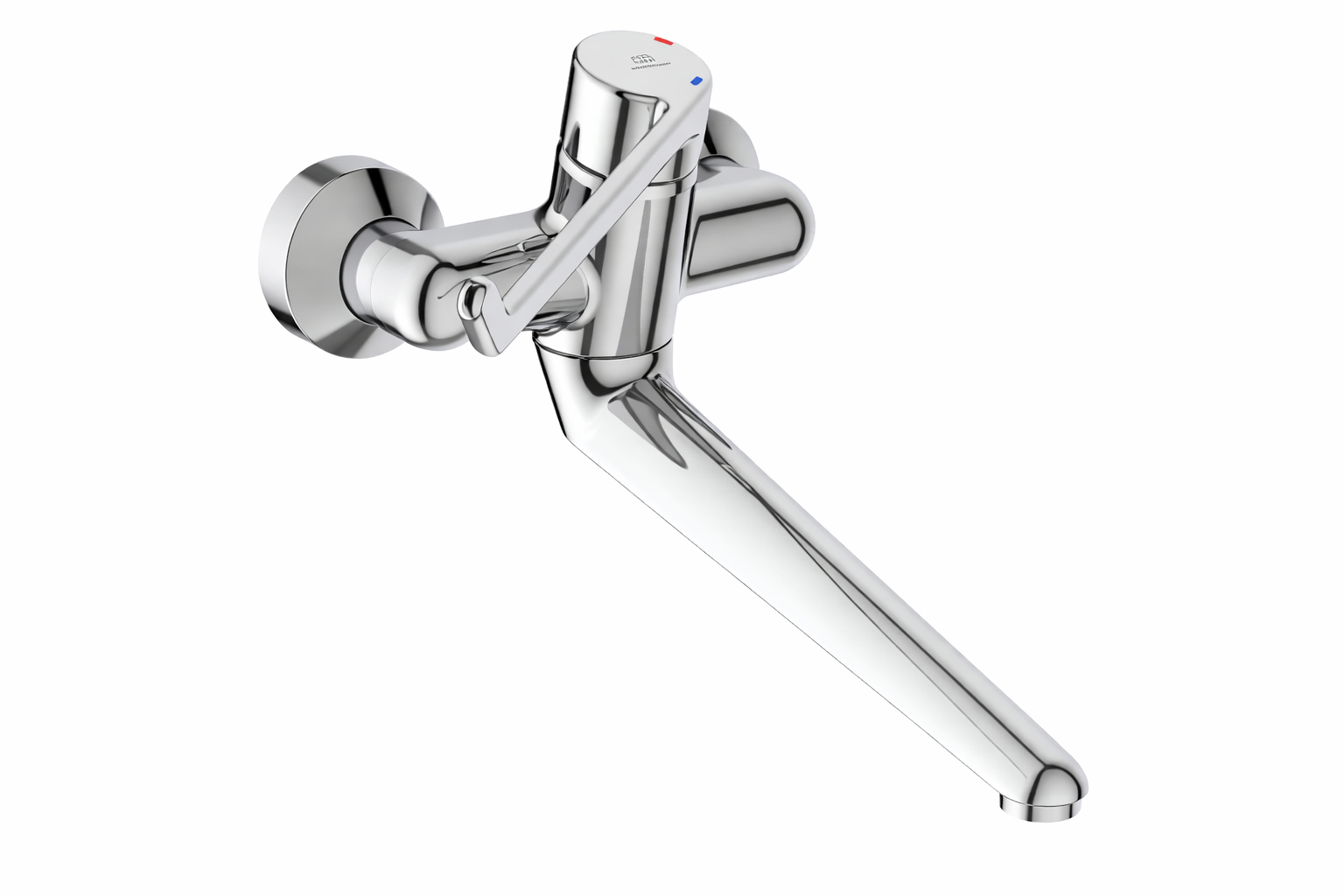

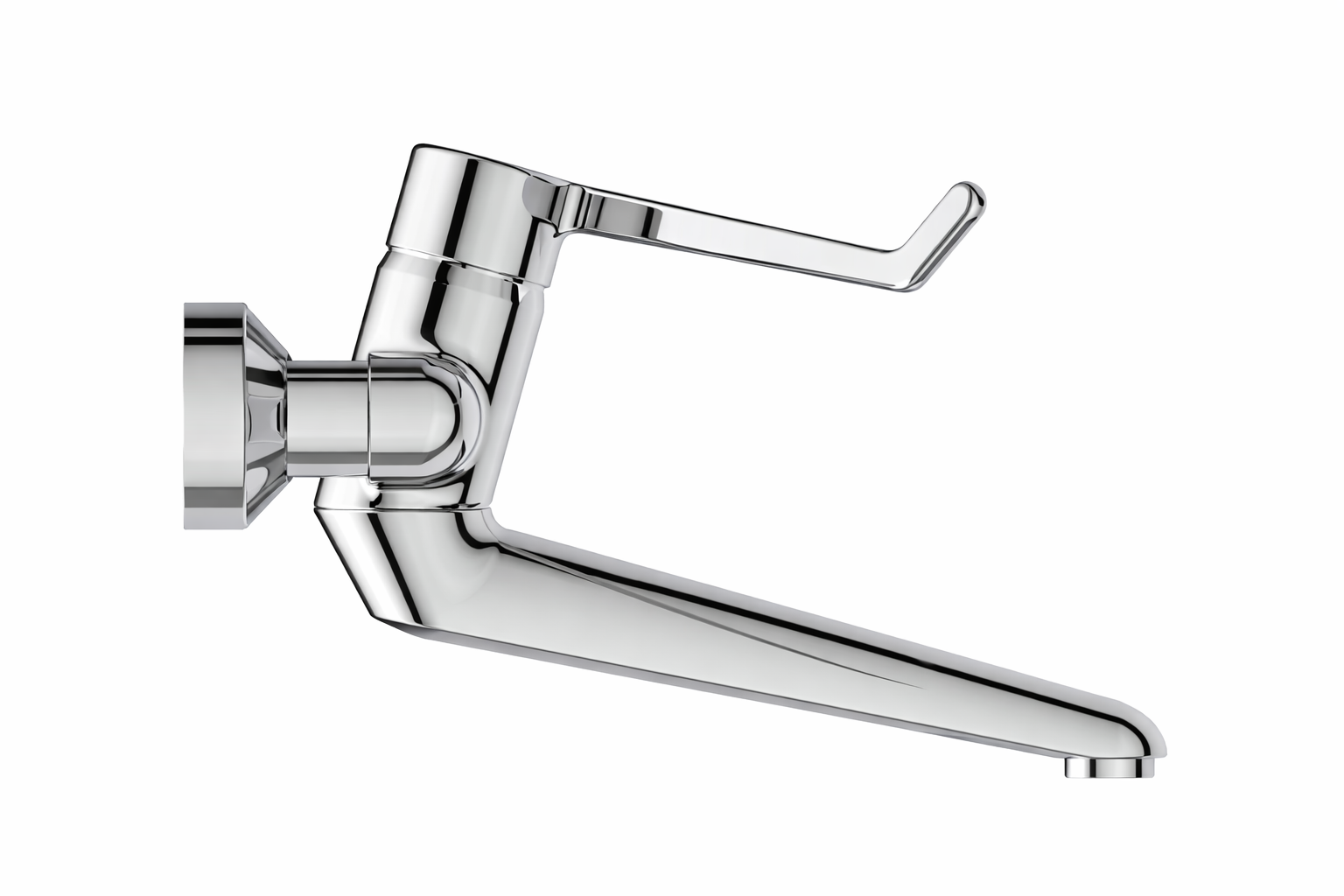

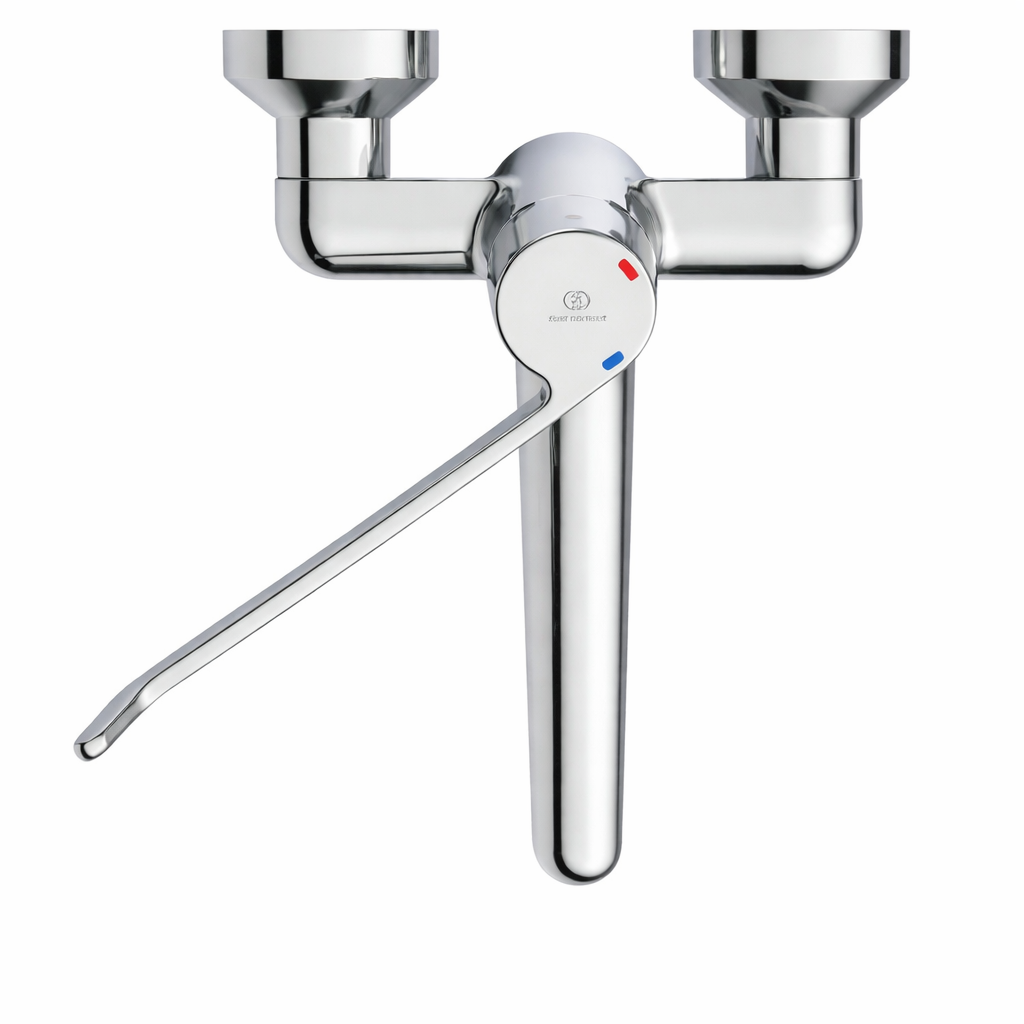

The Ideal Standard Ceraplus B8317AA Wall Mounted Basin Mixer is specifically engineered for healthcare and commercial environments where hygiene, reliability, and durability are critical. Designed by Artefakt, this professional-grade mixer combines functional medical operation with modern aesthetics.
Featuring a sequential cartridge system with FirmaFlow technology, the tap allows progressive control of water temperature and volume through a single medical-style handle positioned on top. The integrated temperature limiter enhances safety in sensitive environments.
With a 200 mm swivel spout projection and a maximum flow rate of 20 L/min at 3 bar, it delivers strong and consistent water performance. The SmartShine chrome-plated finish ensures long-lasting brilliance and corrosion resistance.
Wall-mounted using S-couplings, this model includes escutcheons and check valves, making it ideal for hospitals, clinics, laboratories, and high-traffic sanitary areas.
Features and Specifications
-
Wall mounted basin mixer
-
200 mm spout projection
-
Swivel spout design
-
Sequential cartridge operation
-
FirmaFlow ceramic cartridge
-
Medical handle design
-
Integrated temperature limiter
-
SmartShine chrome finish
-
Includes S-couplings and escutcheons
-
EPD certified
-
Designed for healthcare applications
Technical Specifications
| Specification |
Details |
| Brand |
Ideal Standard |
| Collection |
Ceraplus |
| SKU |
B8317AA |
| Product Type |
Wall Mounted Basin Mixer |
| Designer |
Artefakt |
| Material |
Brass |
| Finish |
Chrome Plated Glossy |
| Spout Projection |
200 mm |
| Spout Type |
Swivel Casted Body |
| Max Flow Rate |
20 L per minute at 3 bar |
| Max Operating Pressure |
10 bar |
| Min Operating Pressure |
0.5 bar |
| Cartridge Type |
Sequential FirmaFlow |
| Handle Type |
Medical |
| Temperature Control |
Manual |
| Temperature Limiter |
Yes |
| Mounting Method |
Wall Mounted |
| Fixing Method |
S-coupling |
| With Waste Set |
No |
| SmartShine |
Yes |
| Net Weight |
2.95 kg |
| EAN |
3800861004615 |
| Standards |
EN 248 DIN 4109-1 EN 200 |
