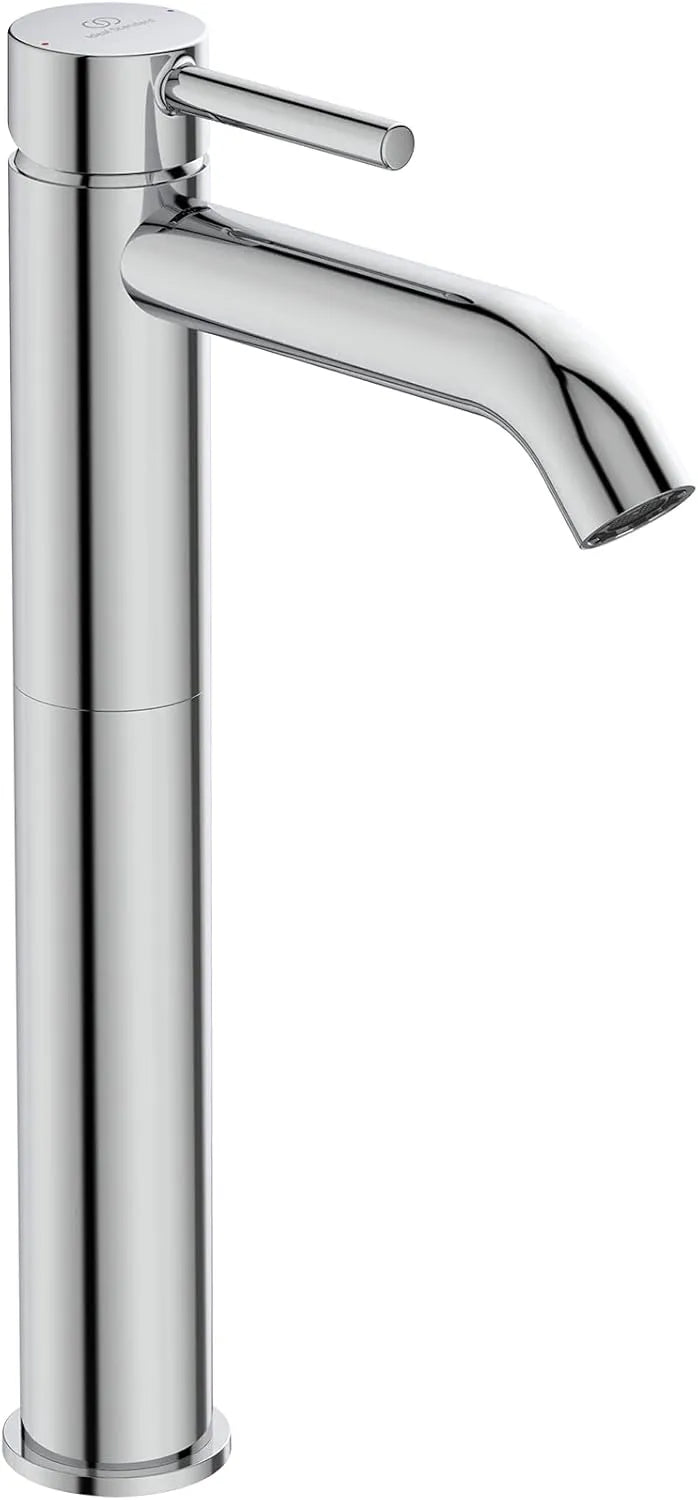

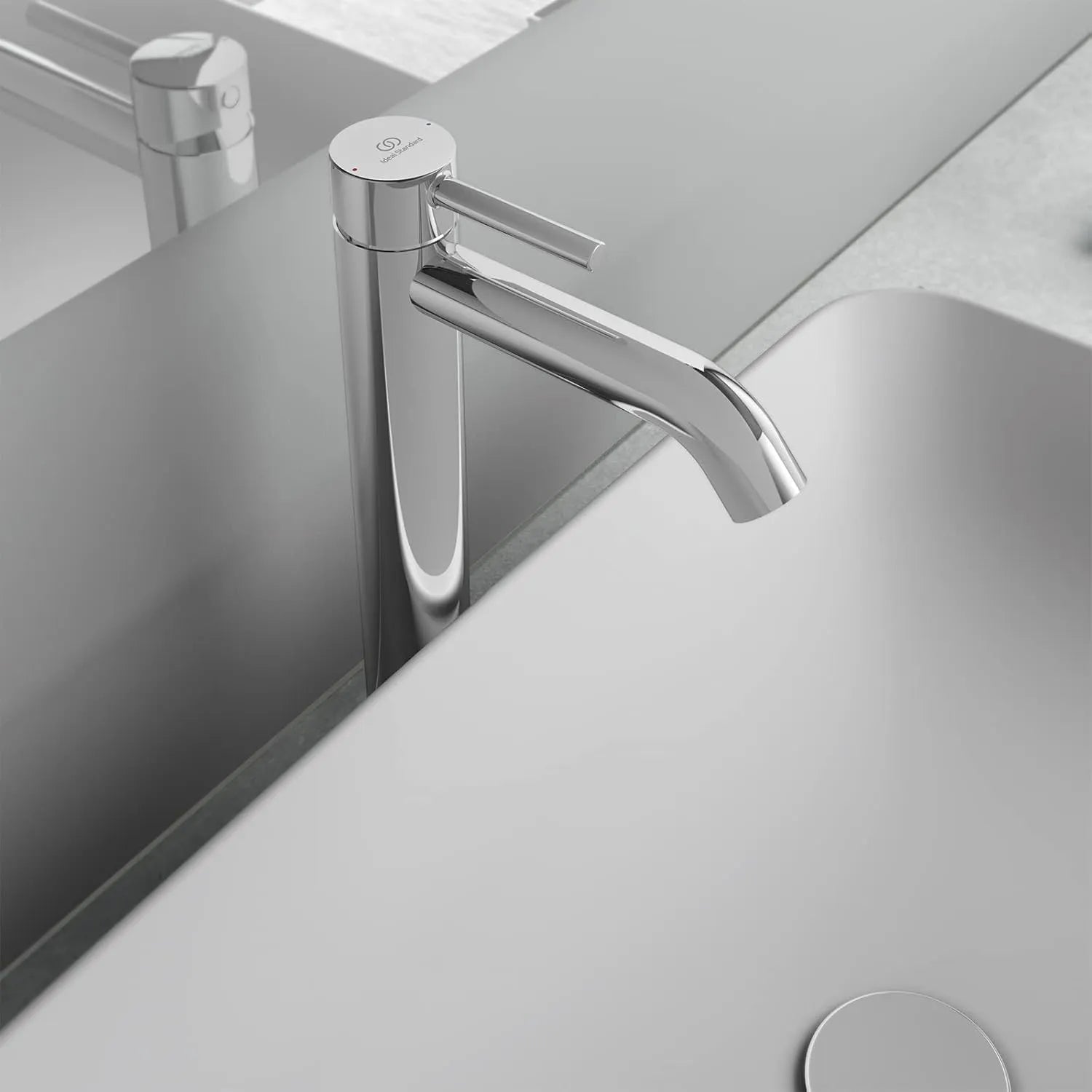

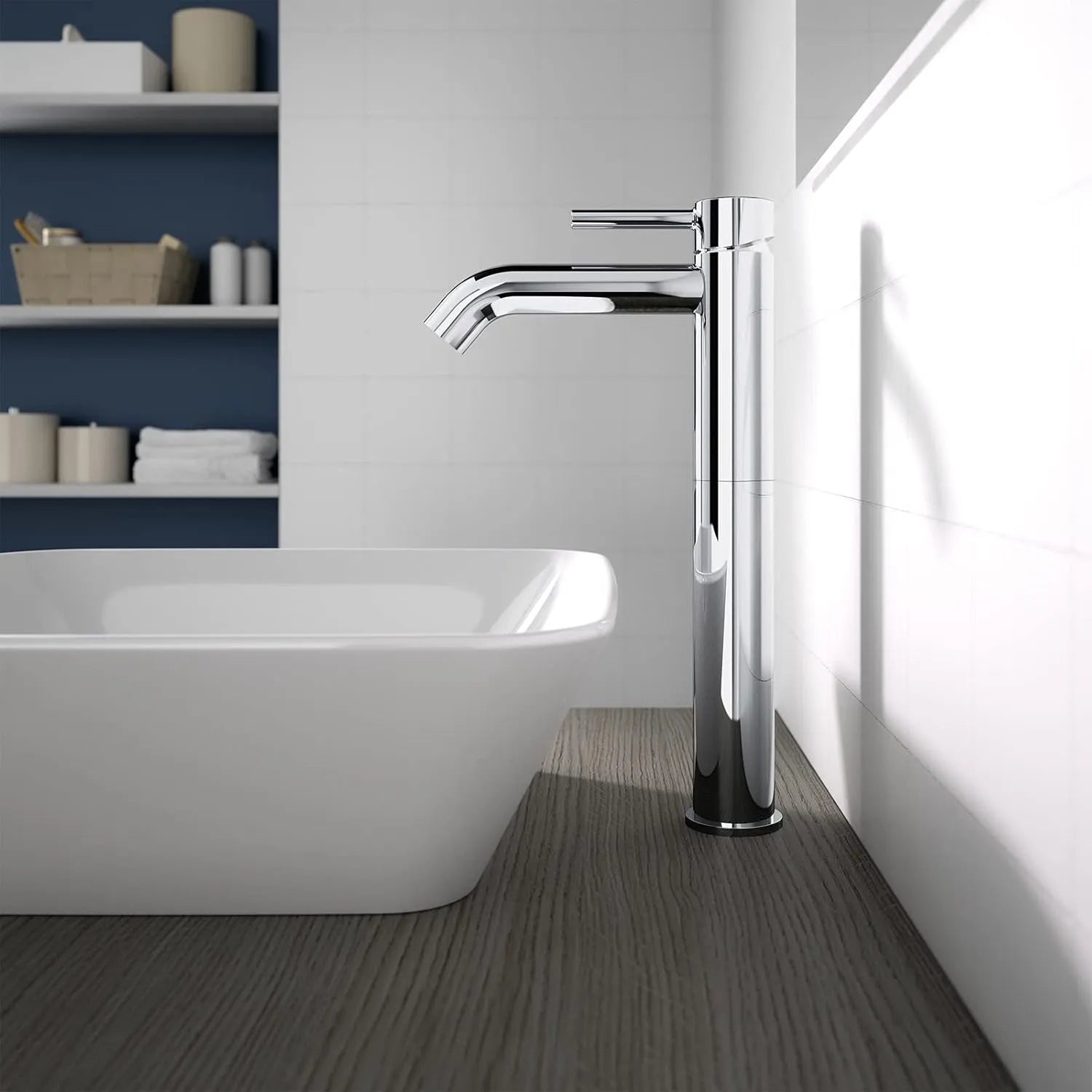

The Ideal Standard Ceraline Basin Mixer BC194AA is a premium chrome washbasin tap designed to combine modern aesthetics with water efficiency and long lasting durability.
With a sleek cylindrical design and a height of 321 mm, this basin mixer is ideal for countertop and vessel washbasins requiring a higher tap profile. The 150 mm spout projection ensures comfortable water reach and usability.
Engineered with a maximum flow rate of 3.8 L/min at 3 bar, the Ceraline mixer supports water saving performance without compromising pressure. It features a hidden aerator and flow straightener for smooth water delivery and a clean visual finish.
The durable brass body with chromium plated surface includes SmartShine technology, offering enhanced resistance to corrosion and easier cleaning. The mixer comes complete with a waste set for a full installation solution.
Certified according to EN 817, EN 248 and DIN 4109 standards, this mixer guarantees European quality and reliability.
Specifications referenced from official data sheet
Key Features
-
Single lever basin mixer
-
Chrome glossy finish
-
150 mm spout projection
-
Height 321 mm ideal for countertop basins
-
3.8 L/min flow rate at 3 bar
-
Water saving technology
-
Hidden aerator for clean look
-
SmartShine corrosion resistant surface
-
Includes waste set
-
Brass construction with metal handle
-
Temperature limiter included
Specifications
| Specification |
Details |
| Model |
BC194AA |
| Collection |
Ceraline |
| Product Type |
Basin mixer |
| Finish |
Chrome |
| Surface Cover |
Chromium plated |
| Height |
321 mm |
| Width |
50 mm |
| Projection |
190 mm |
| Spout Projection |
150 mm |
| Flow Rate |
3.8 L/min at 3 bar |
| Material |
Brass |
| Handle Type |
Single lever pin |
| Temperature Control |
Manual |
| Aerator |
Hidden |
| Max Operating Pressure |
10 bar |
| Min Operating Pressure |
0.5 bar |
| Mounting Method |
Tap hole |
| Fixing Method |
Shank fixation |
| Includes Waste Set |
Yes |
| SmartShine |
Yes |
| Certification |
EN 817 EN 248 DIN 4109 |
| EAN |
3800861065104 |
| Net Weight |
1.80 kg |
