Advanced multi-gas detector with NDIR CO2 sensor for IMO MSC.581(110) compliance, detecting LEL, O2, CO, H2S and CO2 simultaneously with Bluetooth connectivity and automated calibration support.

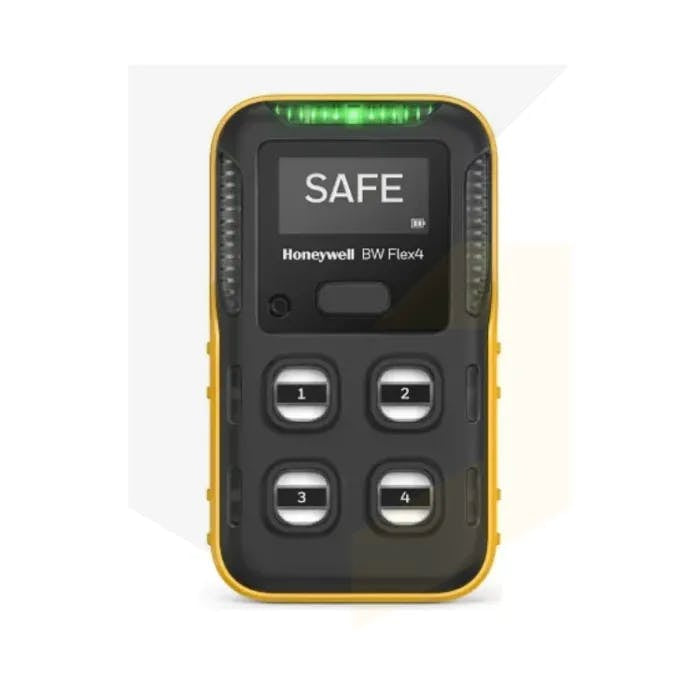

The Honeywell BW Flex (CPD-W6X1HMB1-Y-00) is a compact four-gas personal monitor engineered to detect LEL, O2, CO, H2S, and CO2 simultaneously, making it one of the most versatile portable gas detectors suited to CO2 monitoring requirements introduced by IMO Resolution MSC.581(110) for enclosed space entry aboard ships. This advanced detector combines filtered catalytic LEL sensor technology with oxygen deficiency detection, CO and H2S via COSH dual-toxic sensor, and carbon dioxide via an NDIR infrared sensor with a range of 0-5% vol (50,000 ppm). The NDIR CO2 sensor is infrared-based, meaning it operates independently of ambient oxygen levels, making it exceptionally suitable for confined spaces where low-oxygen conditions and CO2 accumulation occur simultaneously.
The BW Flex is specifically designed for use in potentially explosive atmospheres across industrial, marine, and mining applications. Its compact, wearable form factor with yellow housing and alligator clip makes it ideally suited to continuous personal monitoring during confined-space operations across brewing, water treatment, tunnelling, food processing, and offshore environments. The device features a large high-resolution dot matrix display with multilingual support, audible visual and vibration alarms, and STEL and TWA exposure level monitoring capabilities. With built-in rechargeable battery providing up to 15 hours runtime and i-Series intelligent sensors with predictive calibration and end-of-life alerts, this detector ensures reliable performance in demanding applications.
Fleet management is straightforward with the BW Flex through the IntelliDoX docking station which automates bump testing and calibration, generating records for compliance audit trails. The Honeywell Safety Suite platform accessible via Bluetooth on iOS, Android, or Windows handles device configuration, data download, and reporting across multiple instruments. For operators in the maritime sector, the NDIR CO2 sensor in this configuration meets the atmospheric testing requirements of IMO Resolution MSC.581(110) for enclosed space entry aboard ships, ensuring full compliance with SOLAS XI-1/7 obligations.
Key Features
- MSC.581(110) compliant for maritime enclosed space entry requirements
- NDIR CO2 sensor with 0-5% vol (50,000 ppm) detection range independent of oxygen levels
- Simultaneous detection of LEL, O2, CO, H2S and CO2 with i-Series intelligent sensors
- Bluetooth connectivity with Honeywell Safety Suite for iOS, Android and Windows configuration
- IntelliDoX automated docking station compatibility for bump testing and calibration
- Large high-resolution dot matrix display with multilingual support
- Audible, visual and vibration alarms with STEL and TWA exposure monitoring
- Built-in rechargeable battery with up to 15 hours runtime
- Compact and wearable yellow housing with alligator clip
- Predictive calibration and end-of-life alerts for sensor reliability
Technical Specifications
| Specification |
Value |
| Part Number | CPD-W6X1HMB1-Y-00 |
| Gases Detected | LEL (Filtered Catalytic Bead %LEL), Oxygen O2 (% vol), Carbon Monoxide + Hydrogen Sulphide COSH Dual Toxic, Carbon Dioxide CO2 NDIR (% vol / ppm) |
| Sensor Range | LEL: 0-100% LEL, O2: 0-25% vol, CO: 0-1,000 ppm, H2S: 0-100 ppm, CO2 (NDIR): 0-5% vol (50,000 ppm) |
| Number of Sensors | 4 sensors for up to 4 simultaneous gases |
| Sensor Technology | i-Series intelligent sensors with predictive calibration and end-of-life alerts |
| Display | Large high-resolution dot matrix display with multilingual support |
| Alarms | Audible, visual, and vibration alarms with STEL and TWA exposure level monitoring |
| Connectivity | Bluetooth (BLE) compatible with Honeywell Safety Suite Device Configurator app (iOS, Android, Windows) |
| Battery | Built-in rechargeable battery with up to 15 hours runtime (catalytic LEL configuration) |
| Dimensions | 108.2 mm x 61.5 mm x 43.2 mm (with alligator clip) |
| Weight | From 173 g (with Klick Fast Stud) |
| Sensor Life | CO2 NDIR: 3-5+ years; O2 and LEL: 3-5+ years |
| Compliance Status Indicator | IntelliFlash green/amber status indicator |
| Compatible Management System | Honeywell IntelliDoX docking station and Safety Suite software |
| Application | Confined spaces, potentially explosive atmospheres - industrial, marine, and mining |
| Housing Colour | Yellow |
| Compliance Standards | IMO Resolution MSC.581(110) for enclosed space entry aboard ships |
| Price | £1,488.00 inc VAT (£1,240.00 exc VAT) |
Order Honeywell BW Flex CO2 Multi-Gas Detector LEL O2 CO H2S at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
