Shop Legrand Green'up Premium Single Phase Mode 3 Electric Vehicle Charging Station 7.4kW 32A | 58001 In Iraq Best Prices
Single-phase Mode 3 EV charging station with 7.4kW power, 32A capacity, integrated 6mA DC protection, Bluetooth connectivity, and smart scheduling features for residential and commercial use.

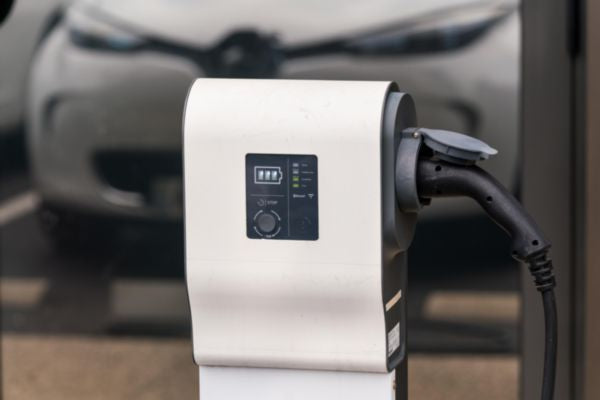

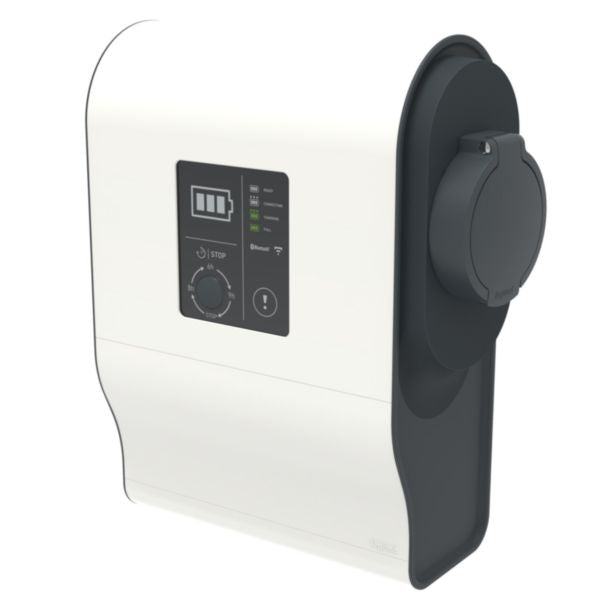

The Green'up Premium is a professional-grade single-phase Mode 3 charging station designed for residential and small commercial applications. Delivering 7.4kW of power at 230V with 32A capacity, this charging station features integrated 6mA DC protection to ensure safe and reliable electric vehicle charging. The device is equipped with embedded Bluetooth connectivity, enabling users to configure settings, update firmware, and monitor charging sessions directly through the EV Charge mobile application on iOS or Android devices.
This charging station offers exceptional flexibility and smart functionality. Users can adjust power settings locally on the device or remotely through the mobile app and web pages. The deferred start feature allows charging to be scheduled for specific times (3, 6, or 9 hours) by simply pressing buttons on the front panel. The station supports external command capabilities through contactor, clock, or switch inputs using 12V dry contact connections, making it ideal for integration with building management systems or energy management solutions.
The Green'up Premium comes with a wall-mounting kit for easy installation and can be upgraded with optional communication kits (ref. 0 590 56) for remote management capabilities including OCPP protocol support and RFID badge reader integration. With its IP44 protection rating and IK08 impact resistance, this charging station is built to withstand various environmental conditions. The plastic housing in white finish provides a modern aesthetic while maintaining durability. Operating temperature range of -25 to 50°C ensures reliable performance across diverse climates.
Key Features
- Embedded Bluetooth connectivity for local configuration and firmware updates via EV Charge mobile app
- Integrated 6mA DC protection for safe and reliable electric vehicle charging
- Adjustable power settings locally on device or remotely through app and web pages
- Deferred start charging capability with 3, 6, or 9-hour scheduling options
- External command support via contactor, clock, or 12V dry contact switch inputs
- Upgradeable with optional communication kit for remote management and OCPP protocol support
- IP44 protection rating and IK08 impact resistance for harsh environmental conditions
- Supplied with wall-mounting kit for easy installation
- Operating temperature range -25 to 50°C for diverse climate applications
- Compatible with iOS and Android platforms for comprehensive device control
Technical Specifications
| Specification |
Value |
| Product Type | Single-phase Mode 3 Electric Vehicle Charging Station |
| Nominal Power Output | 7.4 kW |
| Electrical Connection | Single phase 220-240V |
| Maximum Current | 32A |
| Number of Charging Units | 1 |
| Vehicle Connector Type | Type 2 socket outlet (1) |
| DC Protection | Integrated 6mA DC protection |
| Dimensions (W×H×D) | 295 mm × 365 mm × 140 mm |
| Housing Material | Plastic |
| Color | White |
| IP Protection Rating | IP44 |
| Impact Resistance Rating | IK08 |
| Operating Temperature Range | -25°C to +50°C |
| Storage Temperature Range | -25°C to +70°C |
| Connectivity | Bluetooth wireless communication |
| Operating Protocols | Bluetooth, OCPP 1.6J |
| Mobile Applications | EV Charge (iOS App Store and Android Google Play Store) |
| External Control Inputs | 12V dry contact (contactor, clock, switch) |
| Display | No integrated display |
| Energy Meter | No integrated energy meter |
| Miniature Circuit Breaker | Yes |
| Installation Method | Wall-mounted with supplied mounting kit |
| Reference Number | 058001 |
| EAN Code | 3414972345088 |
| Smart Features | Programmable, wireless configuration, firmware updates, deferred charging |
Order Legrand Green'up Premium Single Phase Mode 3 Electric Vehicle Charging Station 7.4kW 32A | 58001 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
