Shop Legrand Green'up Premium Metal Charging Station 7.4kW 32A Dual EV | 58044 In Iraq Best Prices
Professional dual electric vehicle charging station with 7.4kW power, Bluetooth connectivity, IK10 impact resistance, and IP55 weatherproof protection for safe simultaneous charging.

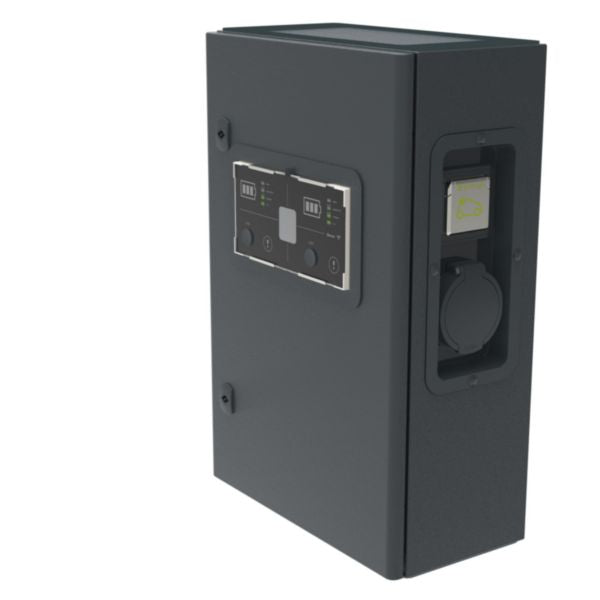

The Green'up Premium metal charging station is a professional-grade electric vehicle charging solution designed for simultaneous charging of two electric or hybrid vehicles. This single-phase 230V-32A charging station delivers a powerful 7.4kW output, making it ideal for residential and small commercial applications. The robust steel housing features IK10 impact resistance and IP55 protection rating, ensuring exceptional durability in various weather conditions and environments. With integrated DC protection and a miniature circuit breaker, this charging station guarantees safe and reliable operation for your electric vehicles.
Equipped with advanced connectivity features, this charging station supports local wireless communication via Bluetooth, enabling users to update, configure, and control the device through a dedicated smartphone or tablet application available on both iOS and Android platforms. The innovative two-sided design with dual Type 2 socket outlets maximizes space efficiency and installation convenience. The device operates within a temperature range of -25°C to +50°C, making it suitable for diverse climatic conditions. With programmable features and OCPP 1.6J protocol support, the Green'up Premium offers flexibility for future integration with smart building systems and remote management capabilities.
The charging station features restricted access control through an optional RFID badge reader, adjustable power settings that can be configured locally or remotely, and external command capabilities via contactor, clock, or switch with dry contact input. The black-colored unit measures 430mm in width, 740mm in height, and 243mm in depth, providing a compact yet powerful charging solution. This connected object is classified as a smart charging device and includes support for web-based software programming and configuration.
Key Features
- Dual simultaneous charging for 2 electric or hybrid vehicles with Type 2 socket outlets
- Local wireless Bluetooth communication for smartphone and tablet control via iOS/Android app
- Robust steel housing with IK10 impact resistance and IP55 weatherproof protection
- Integrated DC protection and miniature circuit breaker for enhanced safety
- Programmable with OCPP 1.6J protocol support for smart building integration
- Optional RFID badge reader for restricted access control
- Adjustable power settings configurable locally or remotely
- External command capability via contactor, clock, or switch
- Operating temperature range -25°C to +50°C for diverse climates
- Compact design measuring 430mm x 740mm x 243mm
Technical Specifications
| Specification |
Value |
| Product Reference | 058044 |
| EAN Code | 3414972345231 |
| Brand | Legrand - Green'up |
| Installation Type | Single phase connection |
| Nominal Power | 7.4 kW |
| Voltage | 220-240V AC |
| Current Rating | 32A |
| Number of Charging Units | 2 |
| Socket Type | Type 2 (2 socket outlets) |
| Housing Material | Steel |
| Color | Black |
| Width | 430 mm |
| Height | 740 mm |
| Depth | 243 mm |
| Impact Resistance Rating | IK10 |
| Degree of Protection | IP55 |
| Operating Temperature Range | -25°C to +50°C |
| Storage Temperature Range | -25°C to +70°C |
| Protection Features | Integrated DC protection, Miniature Circuit Breaker (MCB) |
| Connectivity | Bluetooth, OCPP 1.6J |
| Communication | Local wireless via Bluetooth, Optional remote IP via communication kit |
| Control Methods | Smartphone app, Web interface, External contactor, Clock, Switch |
| Programmable | Yes |
| Smart Features | Connected object, RFID badge reader compatible, Power adjustable |
| Application | EV Charge (iOS/Android) |
| Energy Meter | No |
| Display | No |
| Warranty | As per Legrand standard warranty |
