Professional 22kW three-phase metal charging station with IK10/IP55 protection, integrated MCB, DC protection, Bluetooth connectivity, Type 2 socket, and programmable OCPP support for secure electric vehicle charging.

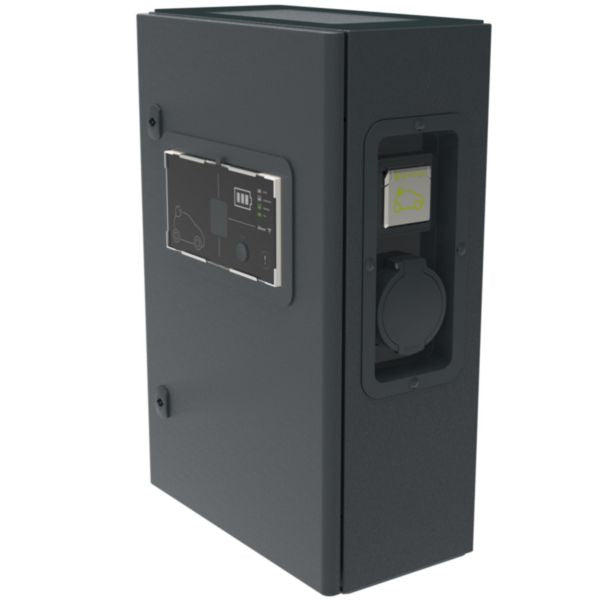

The Metal Charging Station Green'up Premium 3ph is a professional-grade electric vehicle charging solution designed for safe and reliable Mode 2 and Mode 3 operation. This 22kW three-phase 400V-32A charging station features a robust steel housing with IK10 impact resistance and IP55 weather protection, ensuring durability in harsh outdoor environments. The integrated MCB (Miniature Circuit Breaker) and DC protection provide comprehensive electrical safety, while the Bluetooth connectivity enables convenient configuration and monitoring via smartphone or tablet through the EV Charge application compatible with iOS and Android platforms.
This intelligent charging station offers exceptional flexibility with local wireless communication via Bluetooth for real-time updates, configuration, and control of the charging process. The device supports adjustable power settings that can be configured locally on the device or remotely through the mobile app and web pages. The charging station is evolutive and scalable, allowing integration with optional communication kits for remote management capabilities such as OCPP protocol support, or RFID badge reader kits for secure user access management. The Type 2 socket outlet provides universal compatibility with modern electric vehicles.
With an operating temperature range of -25°C to +50°C and storage capability from -25°C to +70°C, this charging station maintains reliable performance in diverse climatic conditions. The programmable features and interoperable connection protocols make it suitable for residential, commercial, and fleet charging applications. The compact dimensions (430mm width × 740mm height × 243mm depth) and black color finish allow for discreet installation while maintaining professional aesthetics. Complete technical documentation and firmware updates are available through the manufacturer's support portal.
Key Features
- 22kW three-phase 400V-32A power output for rapid electric vehicle charging
- IK10 impact resistance and IP55 weatherproof steel housing for outdoor durability
- Integrated MCB (Miniature Circuit Breaker) and DC protection for comprehensive electrical safety
- Bluetooth wireless communication with iOS/Android EV Charge app for local configuration and control
- Programmable adjustable power settings configurable locally or remotely via web pages
- OCPP 1.6J protocol support for remote management and fleet charging integration
- Optional RFID badge reader kit for secure user access management and authentication
- Type 2 socket outlet providing universal compatibility with modern electric vehicles
- Operating temperature range -25°C to +50°C for reliable performance in diverse climates
- Evolutive and scalable design with optional communication kits for extended functionality
Technical Specifications
| Specification |
Value |
| Nominal Connection Power | 22 kW |
| Installation Connection Type | 3-phase 400V |
| Nominal Current | 32A |
| Number of Charging Units | 1 |
| Vehicle Connector Type | Type 2 Socket Outlet (1x) |
| Housing Material | Steel |
| Degree of Protection (IP) | IP55 |
| Degree of Impact Strength (IK) | IK10 |
| Width | 430 mm |
| Height | 740 mm |
| Depth | 243 mm |
| Color | Black |
| Operating Temperature Range | -25°C to +50°C |
| Storage Temperature Range | -25°C to +70°C |
| Nominal Voltage Range | 380-415V |
| Integrated MCB | Yes |
| DC Protection | Yes |
| Wireless Communication | Bluetooth |
| Operating Method | Bluetooth, OCPP 1.6J |
| Programmable | Yes |
| Connected Object | Yes |
| Application Name | EV Charge |
| Application Store Compatibility | App Store, Google Play Store |
| Interoperable Connection Protocol | Yes |
| Programming Method | Web Software |
| Product Use Function | Electric Vehicle Charging |
| Reference Number | 058048 |
| EAN Code | 3414972345248 |
| Charging Modes | Mode 2 and Mode 3 |
| Energy Meter | No |
| Display | No |
