Shop Legrand Green'up One Home 22 kW Electric Vehicle Charging Station | 57016 In Iraq Best Prices
Premium 22 kW three-phase home EV charging station with 5m Type 2 cable, Bluetooth app control, IP54 IK10 housing, and intelligent load management for safe and flexible electric vehicle charging.

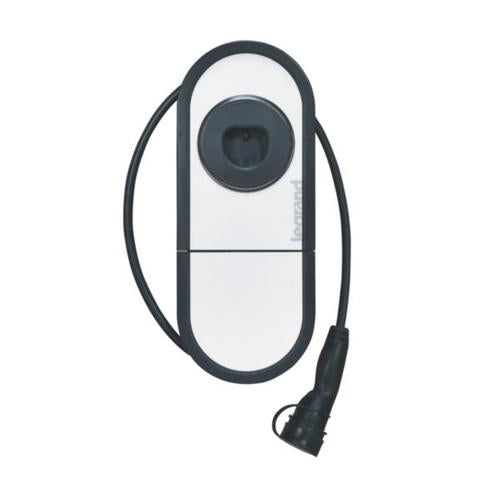

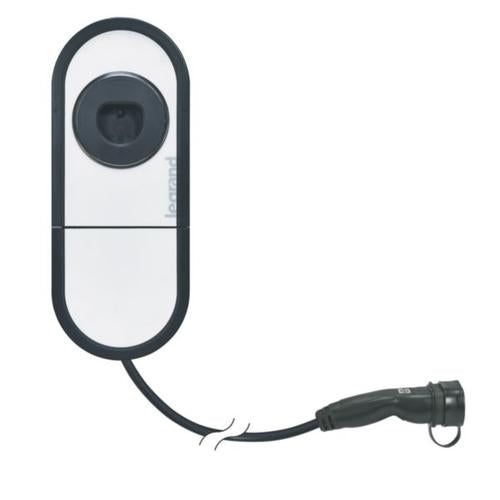

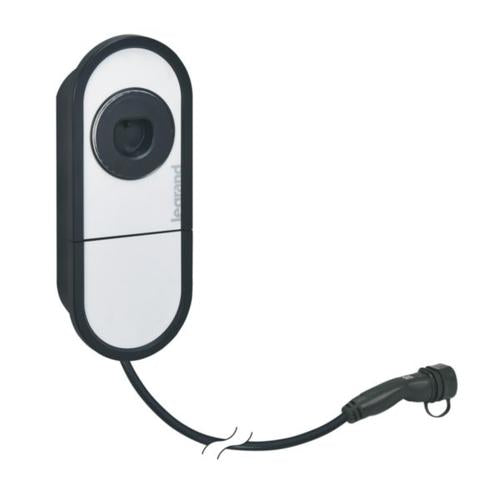

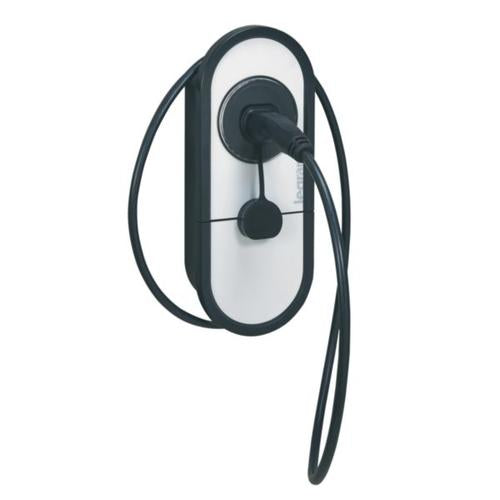

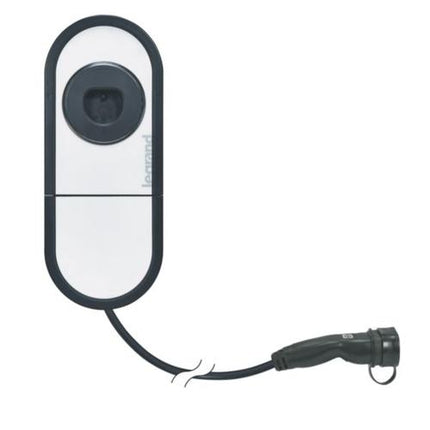

The Green'up One Home 22 kW is a premium three-phase electric vehicle charging station designed for residential applications. This wall-mounted charging station delivers 22 kW of power via a 400V 32A three-phase connection, enabling efficient Mode 3 charging for electric and hybrid vehicles. The unit comes equipped with a 5-meter Type 2 cable, providing convenient charging capability directly from your home's electrical infrastructure. Its robust IP54 rated housing with IK10 impact strength ensures durability and weather resistance for outdoor installations.
This intelligent charging solution features Bluetooth wireless communication, allowing users to control, configure, and update the charging station remotely via the dedicated smartphone app. The integrated static load management system enables dynamic power modulation during charging to prevent exceeding your home's energy contract limits. Users can also command the station externally through contactors, timers, switches, or connected dry contacts with Legrand's Drivia Netatmo system. The compact design (208mm width, 513mm height, 135mm depth) allows flexible installation options including direct wall mounting or optional pole-mounted configurations for single or dual station setups.
Operating across a temperature range of -40°C to +50°C, this charging station is engineered for reliability and performance in diverse climates. The station includes DC residual current detection for enhanced safety and supports smartphone app-based programming for easy setup and management. With its combination of high power delivery, intelligent load management, and user-friendly controls, the Green'up One Home 22 kW represents an excellent investment in convenient home EV charging infrastructure.
Key Features
- 22 kW three-phase power delivery via 400V 32A connection for rapid EV charging
- Integrated 5-meter Type 2 charging cable with Mode 3 protocol compliance
- Bluetooth wireless app control for remote configuration, monitoring and updates via smartphone
- IP54 weatherproof housing with IK10 impact resistance for outdoor durability
- Intelligent static and dynamic load management to optimize home energy consumption
- DC residual current detection for enhanced electrical safety
- External command capability via contactors, timers, switches and Drivia Netatmo integration
- Compact wall-mount design with optional pole installation for flexible placement
- Operating temperature range -40°C to +50°C for diverse climate compatibility
- Power modulation capability to prevent exceeding home energy contract limits
Technical Specifications
| Specification |
Value |
| Product Reference | REF. 057016 |
| EAN Code | 3414972485289 |
| Brand | Legrand - Green'up One |
| Connection Type | Three-phase 400V 32A |
| Nominal Power | 22 kW |
| Frequency | 50 Hz |
| Charging Protocol | Mode 3 - Type 2 connector |
| Number of Charging Units | 1 |
| Charging Cable Length | 5 meters (attached) |
| Cable Type | Type 2 Mode 3 |
| Connectable Conductor Cross Section | 2.5 - 10 mm² |
| Width | 208 mm |
| Height | 513 mm |
| Depth | 135 mm |
| Housing Material | Plastic |
| IP Rating | IP54 |
| IK Rating | IK10 |
| Operating Temperature Range | -40°C to +50°C |
| DC Residual Current Detection | Yes |
| Static Load Management | Integrated |
| Dynamic Load Management | Suitable |
| Bluetooth Connectivity | Yes |
| Mobile App Control | Yes - Charger Control App |
| LAN Connectivity | No |
| 5G Standard | No |
| Display | No |
| Programming Method | Smartphone App |
| External Control | Yes - Contactor, Clock, Switch, Drivia with Netatmo |
| Installation Type | Wall-mounted or optional pole-mounted |
| House Connection Box | No |
| Backend System | Not included |
| Warranty | Standard manufacturer warranty |
| CE Compliance | Yes - RED Directive 78/001 A |
| RoHS Compliance | Yes |
| REACH Compliance | Yes |
Order Legrand Green'up One Home 22 kW Electric Vehicle Charging Station | 57016 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
