Shop Legrand Green'up One Home 22kW Electric Vehicle Charging Station 3-Phase | 57017 In Iraq Best Prices
Professional 22kW three-phase electric vehicle charging station with integrated RCBO, attached 5m Type 2 cable, Bluetooth app control, and compact wall-mount design for residential use.

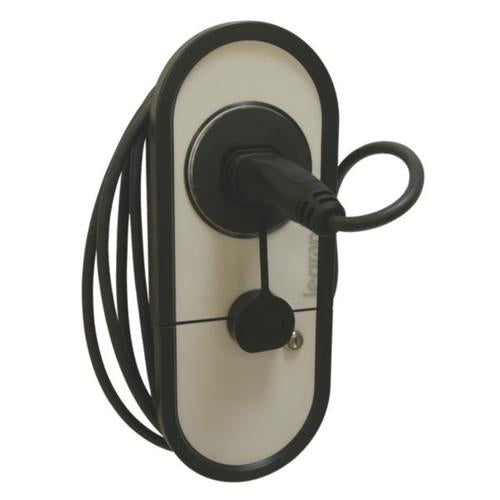

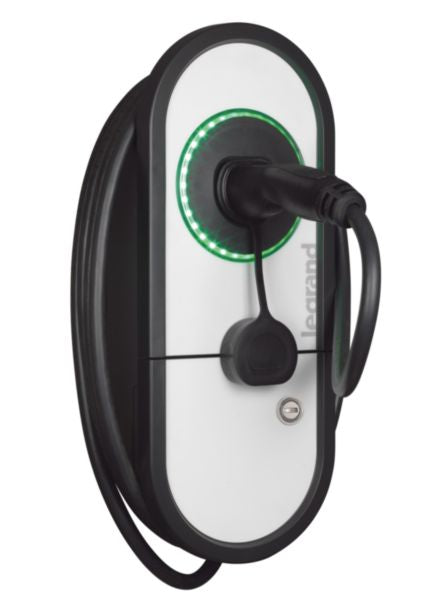

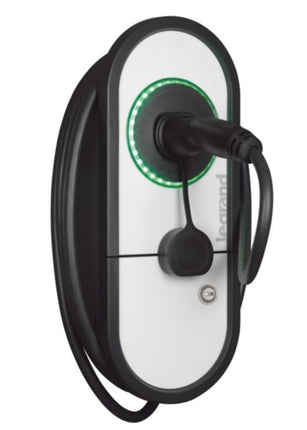

The Green'up One Home is a professional-grade electric vehicle charging station designed for residential installations. This 22kW (32A) three-phase charging station features an integrated RCBO (Residual Current Circuit Breaker with Overload protection) for enhanced safety and comes with a pre-attached 5-meter Type 2 charging cable. The compact wall-mounted design makes it ideal for home garages and driveways, while the robust plastic housing with IP54 protection rating ensures durability in various weather conditions.
Equipped with Bluetooth wireless communication technology, users can easily update, configure, and control the charging station via the dedicated Charger Control smartphone application. The station supports Mode 3 safe charging protocol and can be externally controlled through contactors, timers, switches, or connected dry contacts via Legrand's Drivia system with Netatmo integration. The intelligent power management system allows users to limit and modulate charging power through the app to prevent exceeding their home's energy contract limits, with optional integration of Legrand energy meters for dynamic load management.
Operating across a temperature range of -40°C to +50°C, this charging station is built for reliability and convenience. The IK10 impact resistance rating provides protection against physical damage, while the static load management system ensures optimal performance. Installation is straightforward with direct wall mounting or optional pole installation options that accommodate single or dual charging stations on the same pole.
Key Features
- 22kW (32A) three-phase power output for fast charging
- Integrated 32A RCBO for enhanced electrical safety and overload protection
- Pre-attached 5-meter Type 2 charging cable included
- Bluetooth wireless app control via Charger Control application
- Mode 3 safe charging protocol compliance
- Intelligent power management and load modulation
- External control via contactor, timer, or connected dry contact
- Compact wall-mount design with optional pole installation
- IP54 protection rating for weather resistance
- IK10 impact resistance for durability
Technical Specifications
| Specification |
Value |
| Product Type | Electric Vehicle Charging Station |
| Model | Green'up One Home |
| Reference Number | 057017 |
| EAN Code | 3414972525084 |
| Power Rating | 22 kW |
| Electrical Phase | 3-Phase |
| Current Rating | 32 Amperes |
| Voltage | 400V |
| Frequency | 50 Hz |
| Charging Cable Length | 5 meters |
| Connector Type | Type 2 |
| Charging Mode | Mode 3 (Safe Charging) |
| Integrated Protection | 32A RCBO (Residual Current Circuit Breaker with Overload) |
| DC Residual Current Detection | Yes |
| Width | 208 mm |
| Height | 513 mm |
| Depth | 135 mm |
| Housing Material | Plastic |
| IP Protection Rating | IP54 |
| IK Impact Resistance | IK10 |
| Operating Temperature Range | -40°C to +50°C |
| Installation Type | Wall-Mounted or Pole-Mounted |
| Wireless Communication | Bluetooth |
| Mobile App Control | Yes - Charger Control Application |
| Static Load Management | Integrated |
| Dynamic Load Management | Suitable |
| External Control | Contactor, Timer, Switch, Dry Contact |
| Smart Integration | Drivia with Netatmo Compatible |
| Display | No |
| LAN Connectivity | No |
| 5G Support | No |
| Conductor Cross Section | 2.5 - 10 mm² |
| Backend Included | No |
| Number of Charging Units | 1 |
| Max Power per Charging Point | 22 kW |
| House Connection Box | No |
| Charging Cable Type | Attached |
| Programming Method | Smartphone Applications |
| Power Limitation | Via App |
| Power Modulation | Yes - To Prevent Energy Contract Overrun |
