Shop Legrand Green'up One 3.7kW Electric Vehicle Charging Station Attached Cable | 57010 In Iraq Best Prices
Professional home EV charging station with 3.7kW power, integrated 5m Type 2 cable, Bluetooth app control, IP54/IK10 protection, integrated load management, and support for dynamic power modulation for residential 230V installations.

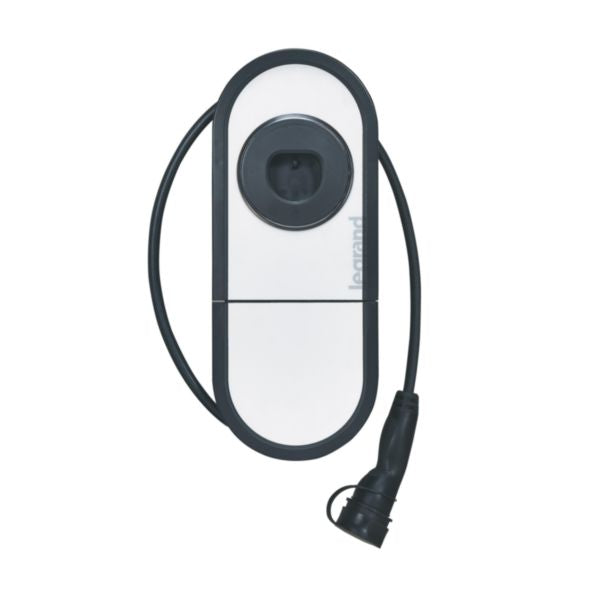

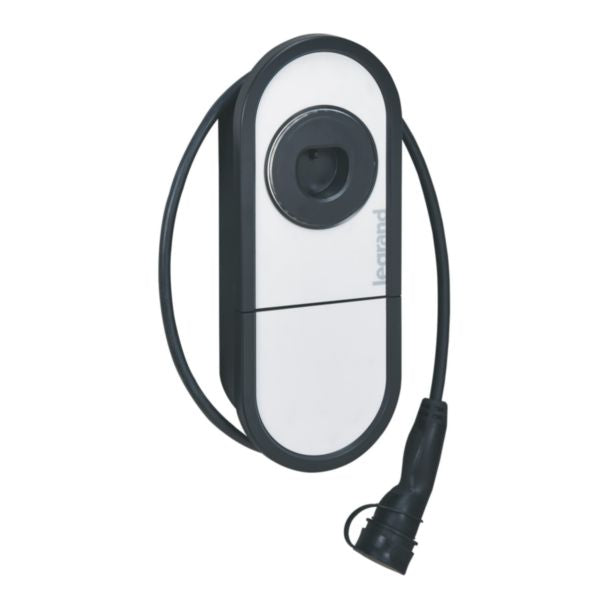

The Green'up One 3.7kW is a professional-grade home charging station designed for electric and hybrid vehicles, delivering safe Mode 3 charging at 3.7kW (16A) via its integrated 5-meter Type 2 cable. This compact and reliable solution features IP54/IK10 rated housing, making it suitable for residential installations on 230V single-phase connections. The charging station is equipped with integrated static load management capabilities and can be controlled remotely via Bluetooth connectivity through the dedicated Charger Control smartphone application, allowing users to update, configure, and monitor charging sessions from their mobile devices or tablets.
With its lightweight and compact design, the Green'up One can be easily wall-mounted or installed on an optional pole for flexible placement options. The device incorporates advanced safety features including DC residual current detection and supports external command capabilities through contactors, timers, switches, and connected dry contacts like Drivia with Netatmo integration. The charging power can be dynamically modulated during the charging process to prevent exceeding the household energy contract limits, and with an additional Legrand energy meter (sold separately), users can achieve optimal energy management and load balancing for their residential installations.
The charging station operates across a wide temperature range from -40°C to +50°C, ensuring reliable performance in various climate conditions. Its robust plastic housing with IK10 impact strength rating provides excellent durability and weather resistance. The device supports connectable conductor cross-sections from 2.5 to 10 mm², offering flexibility in installation configurations. Regular firmware updates are easily accessible through the Bluetooth application at no additional cost, ensuring the charging station remains current with the latest features and security protocols.
Key Features
- Safe Mode 3 charging at 3.7kW (16A) for electric and hybrid vehicles
- Integrated 5-meter Type 2 attached cable for convenient plug-and-play installation
- Bluetooth wireless communication with Charger Control smartphone app for real-time monitoring and control
- Integrated static load management with dynamic power modulation capabilities
- Compact IP54/IK10 rated housing with wall-mounting or optional pole installation options
- DC residual current detection for enhanced electrical safety
- External command capability via contactor, clock, switch, and connected dry contacts
- Wide operating temperature range from -40°C to +50°C for reliable all-weather performance
- Free firmware updates via Bluetooth application for continuous feature improvements
- Compatible with additional Legrand energy meter for advanced energy management
- Connectable conductor cross-section from 2.5 to 10 mm² for flexible installation
- Single-phase 230V connection at 50Hz frequency for standard residential installations
Technical Specifications
| Specification |
Value |
| Product Name | Green'up One 3.7kW Electric Vehicle Charging Station |
| Reference Number | 057010 |
| EAN Code | 3414972517966 |
| Installation Type | Single Phase Connection |
| Frequency | 50 Hz |
| Nominal Connection Power | 3.7 kW |
| Charging Current | 16 Amperes |
| Number of Charging Units | 1 |
| Maximum Power Per Charging Point | 3.7 kW |
| Voltage | 230V Single Phase |
| Width | 208 mm |
| Height | 513 mm |
| Depth | 135 mm |
| Length of Charging Cable | 5 meters |
| Cable Type | Type 2 |
| Degree of Protection (IP Rating) | IP54 |
| Degree of Impact Strength (IK Rating) | IK10 |
| Housing Material | Plastic |
| DC Residual Current Detection | Yes |
| Static Load Management | Integrated |
| Dynamic Load Management Compatible | Yes |
| Display | No |
| Wireless Communication | Bluetooth |
| Mobile App Control | Yes - Charger Control App |
| LAN Connectivity | No |
| 5G Mobile Standard | No |
| Connectable Conductor Cross Section (Min) | 2.5 mm² |
| Connectable Conductor Cross Section (Max) | 10 mm² |
| Operating Temperature Range (Min) | -40°C |
| Operating Temperature Range (Max) | +50°C |
| Programming Method | Smartphone Apps |
| Backend Included | No |
| House Connection Box | No |
| Product Use Function | Electric Vehicle Charging |
| Charging Standard | Mode 3 IEC 62196-2 |
| Installation Method | Wall Mounted or Pole Mounted |
| External Command Support | Contactor, Clock, Switch, Connected Dry Contacts |
| Firmware Updates | Free via Bluetooth Application |
| Energy Meter Integration | Compatible with Additional Legrand Energy Meter |
