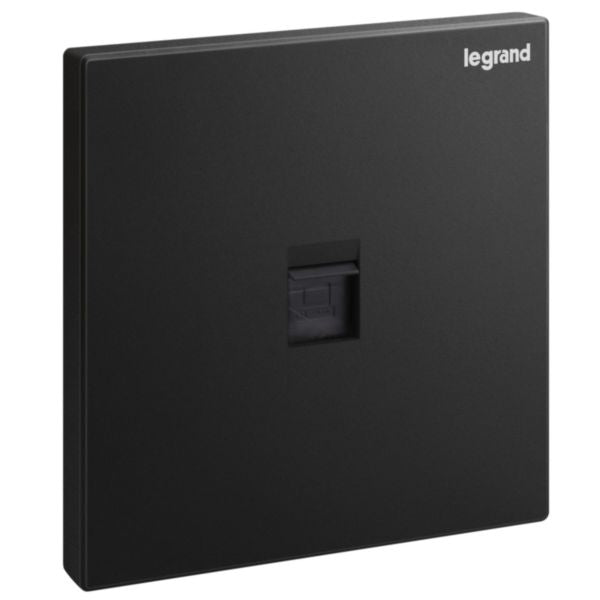

Shop Legrand Galion 1 Gang Single RJ45 Category 5E UTP Socket Outlet Matt Black | 282460-C In Iraq Best Prices
Professional RJ45 category 5E UTP socket outlet with tool-less quick connector, 1 Gigabit/s data rate, suitable for surface and flush mounting, complete with installation hardware and dust protection.
The Galion 1 gang single RJ45 category 5E UTP socket outlet in matt black is a professional-grade networking component designed for reliable data transmission in residential and commercial installations. This socket outlet supports data rates up to 1 Gigabit/s, allowing you to download a 1 Gigabyte file in just 8 seconds. The product features a tool-less quick connector system that ensures intuitive and reliable wiring without requiring specialized installation tools. The honeycomb design supporting frame provides exceptional stability and rigidity, making it ideal for both surface-mounted and flush-mounted installations.
Delivered as a complete, ready-to-install unit under a single catalog number, this socket outlet comes equipped with paint and dust protection for optimal condition upon arrival. The package includes all necessary screws for both flush-mounting and surface-mounting configurations, accommodating plastic or metal boxes. With an IP20 degree of protection and IK04 impact strength rating, this outlet is built to withstand typical residential and commercial environments. The 110 connection type and color coding system simplify installation and maintenance procedures.
The Galion RJ45 socket outlet is specifically recommended for indoor use and operates reliably within a temperature range of -10°C to 70°C. Its compact dimensions (86mm width, 88mm height, 35mm depth) and 26mm built-in depth make it compatible with standard installation boxes. This product represents a professional solution for network infrastructure, combining durability, ease of installation, and reliable performance for modern connectivity needs.
Key Features
- Category 5E UTP support with data rates up to 1 Gigabit/s for high-speed network connectivity
- Tool-less quick connector system for intuitive and reliable wiring without specialized tools
- Honeycomb design supporting frame providing exceptional stability and rigidity
- Dual installation capability with both surface-mounted and flush-mounted mounting options
- Complete ready-to-install package with paint protection, dust cover, and all necessary screws
- IP20 degree of protection and IK04 impact strength for durability in residential and commercial environments
- Color coding system for simplified installation and maintenance procedures
- Compact dimensions compatible with standard installation boxes and configurations
- Operating temperature range of -10°C to 70°C for reliable performance in various climates
- RJ45 8(8) connector type with 110 connection method for professional-grade networking
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Outlet |
| Category | Category 5E UTP |
| Data Rate | Up to 1 Gigabit/s |
| Number of Connectors | 1 connector |
| Connector Type | RJ45 8(8) |
| Connection Method | 110 Connection Type |
| Installation Type | Surface mounted and flush-mounted |
| Fastening Type | Screwing |
| Assembly Type | Basic element with complete housing |
| Color | Matt Black |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 35 mm |
| Built-in Depth | 26 mm |
| IP Rating | IP20 |
| Impact Strength (IK Rating) | IK04 |
| Operating Temperature Range | -10°C to 70°C |
| Storage Temperature Range | -5°C to 50°C |
| Shielded Buses | No |
| Shielded Housing | No |
| Separate Earthing Connection | No |
| Label Space | No |
| Dust Cover | Yes |
| Outlet Direction | Straight |
| Mechanical Coding | No |
| Colour Coding | Yes |
| Horizontal Fixing Center Distance | 60.3 mm |
| Antimicrobial Treatment | No |
| SKU/Reference Number | 282460-C |
| EAN Code | 3414972022309 |
| Brand | Legrand |
| Series | Galion |
| Recommended Use | Indoor use only |
| Connector Design | Tool-less quick connector |
| Supporting Frame | Honeycomb design |
| Included Accessories | Screws for flush and surface mounting, dust protection |
Order Legrand Galion 1 Gang Single RJ45 Category 5E UTP Socket Outlet Matt Black | 282460-C at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
