Shop Legrand Galion 2 Gangs Multistandard Switched Socket Outlet Rose Gold | 282435-C1 In Iraq Best Prices
Premium Galion 2-gang multistandard switched socket outlet featuring Rose Gold finish, dual 2P+E connections, enhanced safety shutters, screw terminals, and complete installation hardware for modern residential and commercial applications.

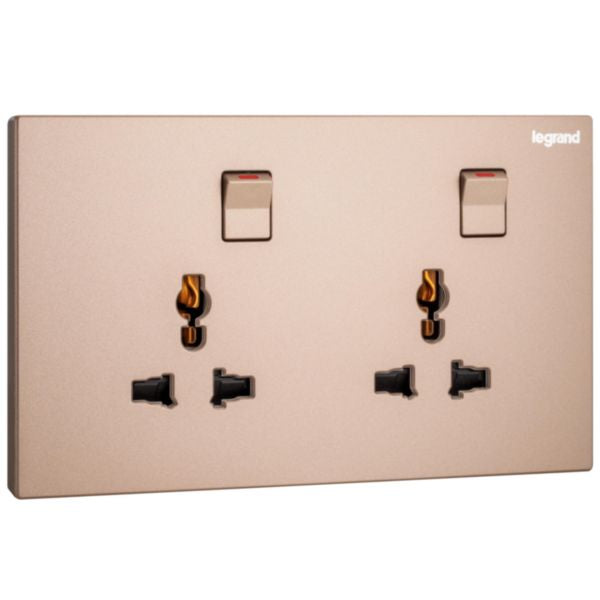

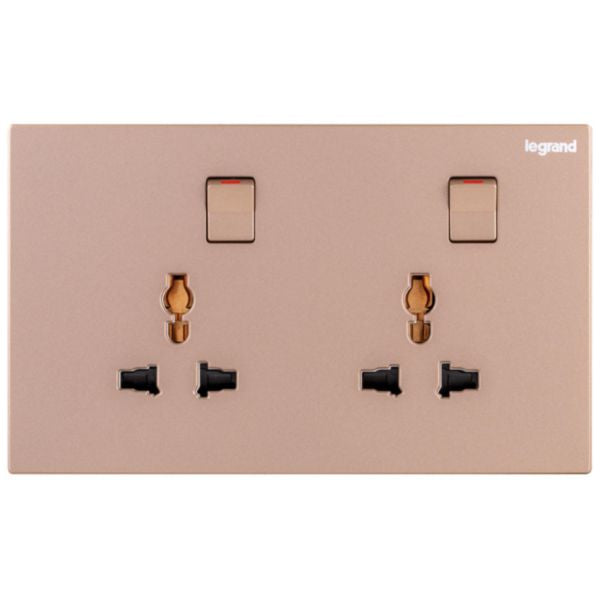

The Galion 2 Gangs Multistandard Switched Socket Outlet in Rose Gold is a premium electrical installation device designed for modern homes and commercial spaces. This sophisticated outlet features dual gang configuration with multistandard compatibility, accommodating various international plug types including 2P+E connections rated at 15A, 127V~ and 16A, 250V~. The product combines elegant Rose Gold finish with robust functionality, featuring screw-type terminals for enhanced electrical contacts and marked terminals for easy identification during installation.
This switched socket outlet is engineered with advanced safety features including honeycomb design supporting frame for superior stability and rigidity, fitted safety shutters to maximize child protection, and enhanced contact protection. The device is delivered complete and ready to install, with all necessary screws for both flush-mounting and surface-mounting boxes, whether plastic or metal. The strip length indicator prevents wire waste, making installation more efficient and cost-effective for professional electricians and DIY enthusiasts alike.
The Galion multistandard socket outlet meets stringent international standards with IP20 degree of protection and IK04 impact strength rating. Operating temperature range of -5 to 50°C ensures reliable performance in various environmental conditions. With dimensions of 146mm width, 88mm height, and 41.2mm depth, this compact yet powerful outlet fits seamlessly into modern interior designs while maintaining the highest standards of electrical safety and functionality.
Key Features
- Multistandard compatibility with 2P+E sockets accommodating international plug types
- Enhanced safety shutters for maximum child protection and electrical safety
- Screw-type terminals with marked identification for secure and easy installation
- Honeycomb design supporting frame providing superior stability and rigidity
- Complete installation package with screws for flush-mounting and surface-mounting boxes
- Strip length indicator to prevent wire waste during installation
- IP20 degree of protection and IK04 impact strength rating
- Rose Gold elegant finish complementing modern interior designs
- Delivered complete and ready to install
- Operating temperature range -5 to 50°C for reliable performance
Technical Specifications
| Specification |
Value |
| Product Type | Multistandard Switched Socket Outlet |
| Configuration | 2 Gangs with 2P+E connections |
| Voltage Rating | 127V~ - 16A, 250V~ |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Protection Degree | IP20 |
| Impact Strength | IK04 |
| Material | Thermoplastic, Halogen Free |
| Surface Finish | Lacquered Matt |
| Colour | Rose Gold |
| Width | 146 mm |
| Height | 88 mm |
| Depth | 41.2 mm |
| Built-in Depth | 29.3 mm |
| Minimum Installation Box Depth | 35 mm |

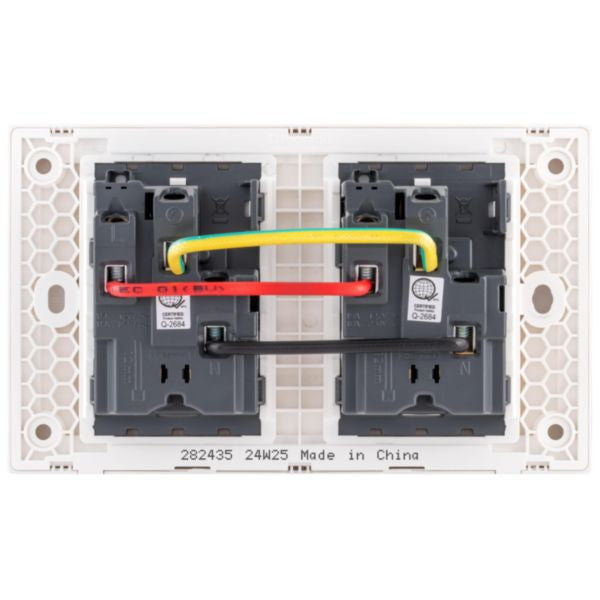

| Connection Type | Screwed Terminal |
| Terminal Capacity | 1-4 mm² |
| Cable Section | 1-4 mm² |
| Operating Temperature | -5 to 50°C |
| Storage Temperature | -10 to 70°C |
| Number of Socket Outlets | 2 |
| Number of Modules | 4 |
| Switchable Socket Outlets | 2 |
| With On/Off Switch | Yes |
| Enhanced Contact Protection | Yes |
| Safety Shutters | Yes |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with Screw |
| Reference Number | 282435-C1 |
| EAN Code | 3414971700888 |
