Shop Legrand Galion 2 Gangs Euro US Socket Outlet 16A Dark Silver | 282436-C3 In Iraq Best Prices
Premium dual-socket outlet with 2x 2P+E Euro-US configuration, 16A rated, featuring safety shutters, screw terminals, and honeycomb frame design for maximum stability and child protection.

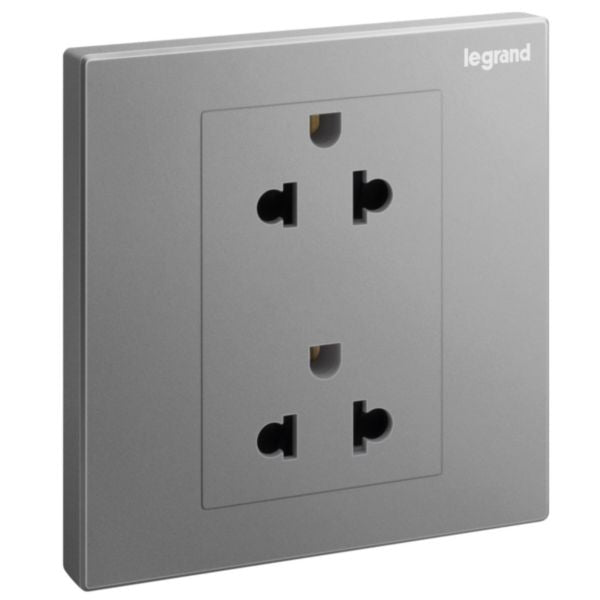

The Galion 2 Gangs Euro/US Socket Outlet is a premium electrical outlet designed for modern residential and commercial applications. This dual-socket outlet features 2x 2P+E Euro-US configuration rated at 16A and 250V~, providing versatile power distribution for multiple devices simultaneously. The product is sold complete under catalog number 282436-C3 and comes ready for installation with all necessary components included. Built with screw-type terminals for enhanced contact reliability and marked terminals for easy identification, this outlet ensures safe and efficient electrical connections. The honeycomb design supporting frame provides exceptional stability and rigidity during installation and operation.
This socket outlet is engineered with comprehensive safety features including fitted safety shutters to maximize child protection and enhanced contact protection. The device is delivered with paint and dust protection and includes screws for both flush-mounting and surface-mounting boxes, accommodating both plastic and metal installations. The strip length indicator helps minimize wire waste during installation, making it an economical choice for professional electricians and homeowners alike.
The Galion outlet features an eject-mechanism for safe device removal and is suitable for indoor use only. With dimensions of 86mm width, 88mm height, and 34.05mm depth, it fits standard flush-mounting boxes with minimum 35mm depth. The product operates within a temperature range of -5 to 50°C and supports flexible or rigid cables with 1-4mm² cross-section capacity. Meeting IP20 protection rating and IK04 impact strength standards, this outlet delivers reliable performance and durability for everyday electrical needs.
Key Features
- Dual 2P+E Euro-US socket configuration for versatile device connectivity
- Safety shutters with enhanced contact protection for maximum child safety
- Screw-type terminals with marked identification for secure and easy installation
- Honeycomb design supporting frame for superior stability and rigidity
- Strip length indicator to minimize wire waste during installation
- Eject-mechanism for safe and convenient device removal
- Suitable for both flush-mounting and surface-mounting installations
- Delivered with paint and dust protection for product preservation
Technical Specifications
| Specification |
Value |
| Product Model | Galion 2 Gangs Euro/US Socket Outlet |
| Reference Number | 282436-C3 |
| EAN Code | 3414971760547 |
| Socket Configuration | 2x 2P+E Euro-US, 16A, 250V~ |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 2 |
| Connection Type | Screwed terminal |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 34.05 mm |
| Built-in Depth | 24.65 mm |
| Minimum Box Depth | 35 mm |
| Protection Rating | IP20 |
| Impact Strength | IK04 |
| Operating Temperature Range | -5 to 50°C |
| Storage Temperature Range | -10 to 70°C |
| Cable Section Capacity | 1-4 mm² |
| Cable Type | Flexible or rigid |
| Mounting Method | Flush-mounted |
| Fastening Type | Mounting with screw |
| Color | Dark Silver |
| Surface Finishing | Matt lacquered |
| On/Off Switch | Yes |
| Eject-mechanism | Yes |
| Safety Shutters | Yes |
| Enhanced Contact Protection | Yes |
Order Legrand Galion 2 Gangs Euro US Socket Outlet 16A Dark Silver | 282436-C3 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
