Galion 2 gang multistandard switched socket outlet with integrated 3A USB-A and USB-C chargers, featuring 15W power delivery, safety shutters, and screw-type terminals for secure installation in residential and commercial applications.

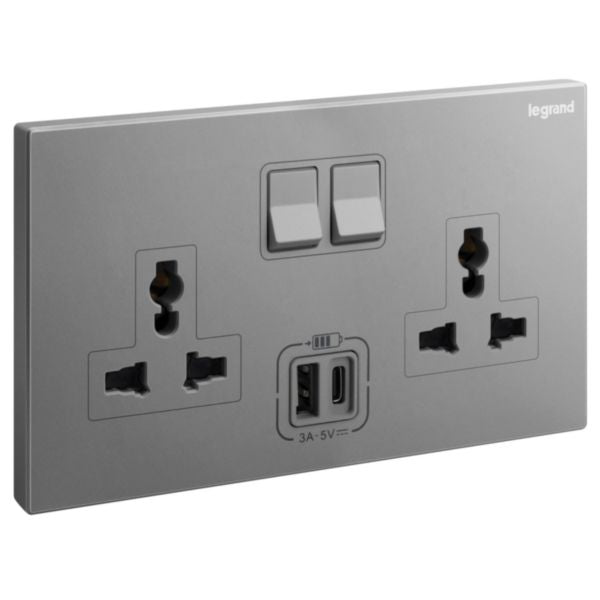

The Galion 2 Gang Multistandard Switched Socket Outlet with 3A Type-A and Type-C USB Chargers in Dark Silver is a premium wiring device designed for modern residential and commercial applications. This innovative product combines traditional power outlets with contemporary USB charging capabilities, offering a complete solution for powering and charging multiple devices simultaneously. The socket features two 2P+E multi-standard 16A, 250V~ outlets paired with integrated USB-A and USB-C charging ports rated at 3A and 5Vdc with 15W power delivery, making it ideal for optimal charging of smartphones, tablets, and other portable devices.
The product is engineered with superior safety and usability features including honeycomb design supporting frame for enhanced stability and rigidity, safety shutters to maximize child protection, and screw-type terminals for secure and enhanced electrical contacts. The marked terminals facilitate easy identification during installation, while the strip length indicator helps prevent wire waste. This device is delivered complete under one catalog number and ready for immediate installation, with included screws compatible with both flush-mounting and surface-mounting boxes, whether plastic or metal.
With a device width of 146mm, height of 88mm, and depth of 30.2mm, the Galion outlet is designed for seamless integration into standard electrical installations. The product features a thermoplastic material construction that is halogen-free with lacquered matt surface finishing, meeting IP20 degree of protection and IK04 degree of impact strength standards. Operating safely across -5 to 50°C temperature range, this multi-functional outlet represents the convergence of traditional electrical infrastructure with modern charging technology.
Key Features
- 2 x 2P+E Multi-standard 16A, 250V~ power outlets with dual USB charging integration
- Integrated 3A USB-A and USB-C chargers with 15W power delivery for optimal device charging
- Safety shutters providing enhanced child protection and electrical safety
- Honeycomb design supporting frame ensuring stability, rigidity, and durability
- Screw-type terminals with marked identification for secure connections and easy installation
- Halogen-free thermoplastic construction with lacquered matt surface finishing
- Strip length indicator preventing wire waste during installation
- Compatible with both flush-mounting and surface-mounting boxes
- IP20 degree of protection and IK04 impact strength rating
- Operating temperature range -5 to 50°C with -10 to 70°C storage capability
Technical Specifications
| Specification |
Value |
| Product Type | Multi-standard Switched Socket Outlet with USB Chargers |
| Number of Socket Outlets | 2 x 2P+E outlets |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| USB Ports | 1 x USB-A and 1 x USB-C |
| USB Output Power | 15 W (3A at 5Vdc) |
| Number of Modules | 4 |
| Connection Type | Screw-type terminals |
| Terminal Capacity | 1-4 mm² (flexible or rigid cable) |
| Device Width | 146 mm |
| Device Height | 88 mm |
| Device Depth | 30.2 mm |
| Built-in Depth | 18.2 mm |
| Minimum Installation Box Depth | 25 mm |
| Material | Thermoplastic |
| Material Quality | Halogen-free thermoplastic |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Color | Dark Silver |
| Degree of Protection | IP20 |
| Impact Strength | IK04 |
| Operating Temperature | -5 to +50°C |
| Storage Temperature | -10 to +70°C |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with screw |
| With On/Off Switch | Yes |
| With Safety Shutters | Yes |
| Enhanced Contact Protection | Yes |
| Reference Number | 282444-C3 |
| EAN Code | 3414971703018 |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Power Delivery Support | No |
