Shop Legrand Galion 2 Gang Multistandard Switched Socket USB Charger Champagne | 282444-C2 In Iraq Best Prices
Premium 2-gang multistandard socket outlet with integrated USB-A and USB-C chargers, 15W power delivery, safety shutters, and screw terminals for secure installation in residential and commercial spaces.

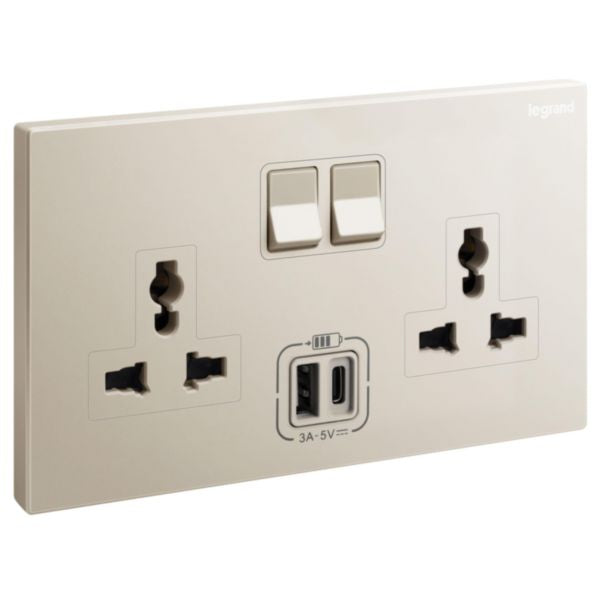

The Galion 2 gangs Multistandard switched socket outlet is a premium electrical installation solution designed for modern homes and commercial spaces. This sophisticated device combines two 2P+E multi-standard 16A, 250V~ socket outlets with integrated USB charging capabilities, featuring both USB-A and USB-C ports delivering 3A at 5Vdc with 15W total power output. The product is delivered complete and ready to install, eliminating the need for additional components or complex assembly procedures.
This innovative socket outlet features screw-type terminals for secure and enhanced electrical contacts, with marked terminals for easy identification during installation. The honeycomb design supporting frame provides exceptional stability and rigidity, ensuring long-lasting performance and durability. Safety shutters are integrated to maximize child protection, while the dual functionality as both a power outlet and convenient USB charging station makes it ideal for simultaneously powering traditional electrical devices and charging multiple USB devices including smartphones and tablets.
The Galion socket is finished in elegant Champagne color with a matt lacquered surface, complementing any interior design aesthetic. Constructed from halogen-free thermoplastic material, it meets modern environmental and safety standards. The device features enhanced contact protection and operates reliably across 50-60 Hz frequencies with an IP20 protection rating suitable for indoor residential and light commercial applications.
Key Features
- Dual 2P+E multi-standard 16A socket outlets with 250V~ rating for universal compatibility
- Integrated USB-A and USB-C charging ports delivering 15W power at 5Vdc for optimal device charging
- Safety shutters with enhanced contact protection for maximum child safety
- Screw-type terminals with marked identification for secure and easy installation
- Honeycomb design supporting frame for superior stability, rigidity and durability
Technical Specifications
| Specification |
Value |
| Model | Multi-standard switched socket outlet with USB charging |
| Socket Configuration | 2 x 2P+E multi-standard 16A, 250V~ + USB A & C chargers 3A, 5Vdc |
| USB Power Output | 15W total (USB-A and USB-C combined) |
| Number of Modules | 4 modules |
| Connection Type | Screw-type terminals with strip length indicator |
| Terminal Capacity | 1-4 mm² flexible or rigid cable |
| Dimensions | Width: 146mm, Height: 88mm, Depth: 30.2mm |
| Built-in Depth | 18.2mm |
| Minimum Box Depth | 25mm |
| Material | Halogen-free thermoplastic with lacquered matt finish |
| Color | Champagne |
| Protection Rating | IP20 |
| Impact Strength | IK04 |
| Frequency | 50-60 Hz |
| Operating Temperature | -5 to +50°C |
| Storage Temperature | -10 to +70°C |
| Mounting Method | Flush-mounted with screw fastening |
| Safety Features | Safety shutters, enhanced contact protection |
| Reference Number | 282444-C2 |
| EAN Code | 3414971702981 |
Order Legrand Galion 2 Gang Multistandard Switched Socket USB Charger Champagne | 282444-C2 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
