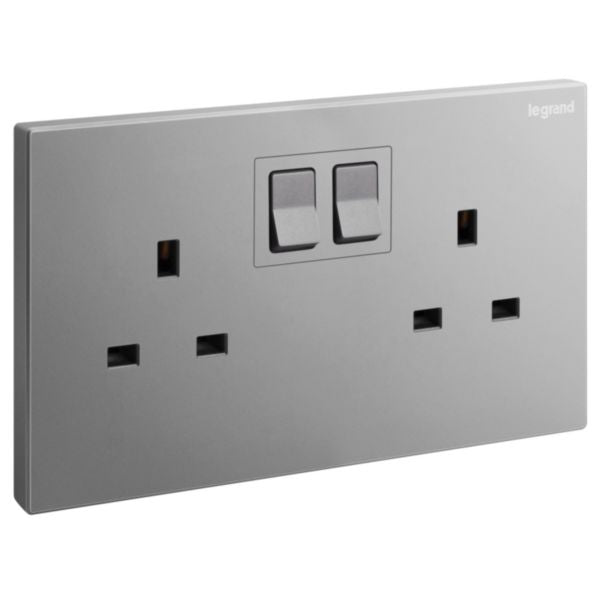

Shop Legrand Galion 2 Gang British Standard Switched Socket Outlet 13A Dark Silver | 282481-C3 In Iraq Best Prices
Premium dual-gang British Standard switched socket outlet with integrated power indicators, advanced safety shutters, and secure screw terminals. 13A, 250V, IP20 rated for safe indoor electrical installations.
The Galion 2 gangs British Standard switched single pole socket outlet with power indicator is a premium electrical installation component designed for residential and commercial applications. This dual-gang socket outlet features two 2P+E British Standard 13A, 250V~ outlets, each independently switchable with integrated power indicator lights for enhanced functionality and safety. The product is manufactured from durable thermoplastic material with a lacquered matt finish in dark silver, providing both aesthetic appeal and robust protection against wear and environmental factors.
This socket outlet incorporates advanced safety features including honeycomb design supporting frame for exceptional stability and rigidity, fitted safety shutters to maximize child protection, and screw-type terminals for secure and enhanced electrical contacts. The marked terminals facilitate easy identification during installation, while the strip length indicator helps prevent wire wastage. With a nominal current rating of 13A and voltage rating of 250V, it operates at 50-60 Hz frequency and is suitable for IP20 degree of protection with IK04 impact strength rating.
The product is delivered complete and ready to install with paint and dust protection, including all necessary screws for both flush-mounting and surface-mounting boxes (plastic or metal compatible). The installation depth of 15.2mm with a minimum box depth requirement of 25mm makes it suitable for standard British electrical installations. This Legrand Galion product (REF. 282481-C3, EAN 3414972021616) is halogen-free, complies with RoHS directives, and is recommended for indoor use only, making it an ideal choice for modern British Standard electrical systems.
Key Features
- Two 2P+E British Standard 13A, 250V~ socket outlets with independent switching
- Integrated power indicator lights on each outlet for visual confirmation of power status
- Honeycomb design supporting frame for exceptional stability and rigidity
- Safety shutters for maximum child protection and enhanced safety
- Screw-type terminals with marked identification for secure and enhanced electrical contacts
- Strip length indicator to prevent wire wastage during installation
- Halogen-free thermoplastic material with lacquered matt finish in dark silver
- Complete installation package with screws for flush and surface mounting
- IP20 degree of protection and IK04 impact strength rating
- Operating temperature range -5°C to +50°C for reliable performance
Technical Specifications
| Specification |
Value |
| Product Type | 2 Gang British Standard Switched Socket Outlet |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| Socket Configuration | 2 x 2P+E British Standard outlets |
| Number of Modules | 4 modules |
| Switchable Outlets | 2 independently switchable outlets |
| Power Indicator | Yes - integrated luminous signal on each outlet |
| Connection Type | Screw-type terminals with marked identification |
| Terminal Capacity | 1-4 mm² flexible or rigid cable |
| Cable Section | 1-4 mm² |
| Material | Thermoplastic - Halogen free |
| Surface Finishing | Lacquered matt finish |
| Color | Dark Silver |
| Device Width | 146 mm |
| Device Height | 88 mm |
| Device Depth | 27.2 mm |
| Built-in Depth | 15.2 mm |
| Minimum Box Depth | 25 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -10°C to +70°C |
| Mounting Method | Flush-mounted with screw fastening |
| Safety Features | Enhanced contact protection with safety shutters |
| Assembly Arrangement | Basic element with full cover plate |
| Protective Contact | Flat protective contact |
| Concurrently Switching Neutral | No |
| With On/Off Switch | Yes |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Certification | RoHS Compliant, G-MARK certified |
| Recommended Use | Indoor use only |
| Reference Number | 282481-C3 |
| EAN Code | 3414972021616 |
| Manufacturer | Legrand |
| Product Series | Galion - British Standard |
