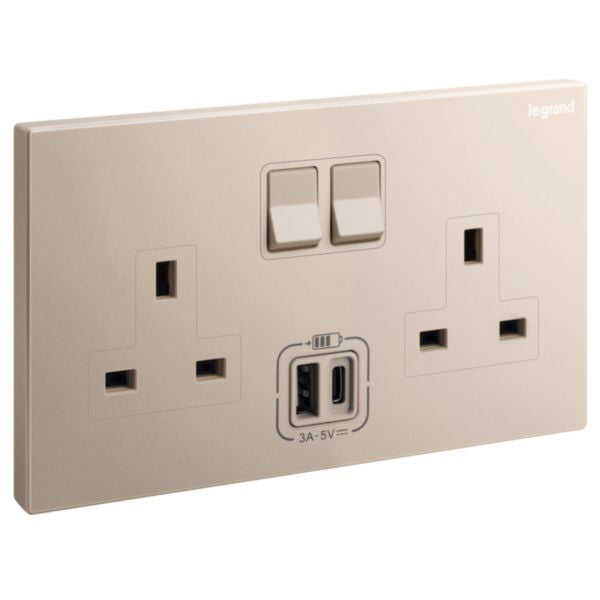

Shop Legrand Galion 2 Gang British Standard Switched Socket 13A USB Charger Rose Gold | 282443-C1 In Iraq Best Prices
Premium 2-gang British Standard switched socket outlet with integrated 3A USB Type-A and Type-C chargers, 15W charging power, rose gold finish, screw terminals, and child safety shutters
The Galion 2 gangs British Standard switched single pole socket outlet is a premium wiring device designed for modern homes and commercial spaces. This sophisticated outlet combines two 2P+E British standard 13A socket outlets with integrated 3A USB Type-A and Type-C chargers, delivering 15W of charging power. The rose gold finish adds an elegant aesthetic touch to any interior design scheme. The product features screw-type terminals for secure and enhanced electrical contacts, marked terminals for easy identification, and a strip length indicator to avoid wire waste during installation.
The Galion outlet is sold as a complete unit ready for immediate installation, with honeycomb design supporting frame that ensures stability and rigidity. It incorporates safety shutters to maximize child protection while providing convenient charging capabilities for smartphones, tablets, and other USB-powered devices. The device is delivered with paint and dust protection, along with screws for both flush-mounting and surface-mounting installation options, making it versatile for various building configurations.
With its thermoplastic construction, halogen-free materials, and lacquered matt finish, this outlet meets stringent electrical safety standards. Operating within a temperature range of -5 to 35°C, it provides reliable performance in diverse environmental conditions. The IP20 protection rating and IK04 impact resistance ensure durability in residential and light commercial applications. The product complies with British Standard specifications and includes multiple international certifications for quality assurance.
Key Features
- Two 2P+E British Standard 13A socket outlets with 250V rated voltage
- Integrated 3A USB Type-A and Type-C chargers providing 15W total charging power
- Screw-type terminals for secure and enhanced electrical contacts
- Safety shutters for maximum child protection and device security
- Honeycomb design supporting frame for exceptional stability and rigidity
- Marked terminals for easy wire identification during installation
- Strip length indicator to minimize wire waste
- Thermoplastic construction with halogen-free materials
- Rose gold metallic finish with lacquered matt surface
- Suitable for both flush-mounted and surface-mounted installation
- IP20 protection rating and IK04 impact resistance
- Operating temperature range -5 to 35°C for reliable performance
- Complies with British Standard specifications
- Delivered with mounting screws for flexible installation options
- Paint and dust protection included for product integrity
Technical Specifications
| Specification |
Value |
| Product Type | 2 Gang British Standard Switched Socket Outlet with USB Chargers |
| Model | British Standard |
| Socket Configuration | 2 x 2P+E British Standard 13A, 250V + USB A & C chargers 3A, 5Vdc |
| Nominal Voltage | 250V AC |
| Nominal Current | 13A per socket |
| USB Output Power | 15W total (3A per port) |
| USB Ports | 1 x Type-A, 1 x Type-C |
| Number of Socket Outlets | 2 switchable outlets |
| Connection Type | Screw terminals |
| Terminal Capacity | 1-4 mm² flexible or rigid cable |
| Assembly Arrangement | Basic element with full cover plate |
| Number of Modules | 4 modules |
| Material | Thermoplastic with halogen-free construction |
| Color | Rose Gold (Metallic) |
| Surface Finish | Lacquered Matt |
| Protective Contact Type | Flat |
| Device Width | 146 mm |
| Device Height | 86 mm |
| Device Depth | 30.5 mm |
| Built-in Depth | 18.8 mm |
| Minimum Installation Box Depth | 25 mm |
| Mounting Method | Flush-mounted with screw fastening |
| Installation Options | Flush-mounting or surface-mounting boxes, plastic or metal |
| Protection Rating | IP20 |
| Impact Resistance | IK04 |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Frequency | 50-60 Hz |
| Voltage Type | AC |
| With On/Off Switch | Yes |
| Safety Shutters | Yes - Enhanced contact protection |
| Terminal Marking | Yes - Marked terminals for easy identification |
| With Hinged Lid | No |
| Lockable | No |
| Eject Mechanism | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Miniature Fuse | No |
| Power Delivery Support | No |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| WiFi Support | No WiFi signal repeater or built-in Bluetooth speaker |
| SKU/Reference Number | 282443-C1 |
| EAN Code | 3414971855199 |
| Recommended Use | Inside use only |
| Installation Type | Ready to install - sold complete under one catalog number |
| Package Contents | Socket outlet with cover plate, mounting screws, paint and dust protection |
