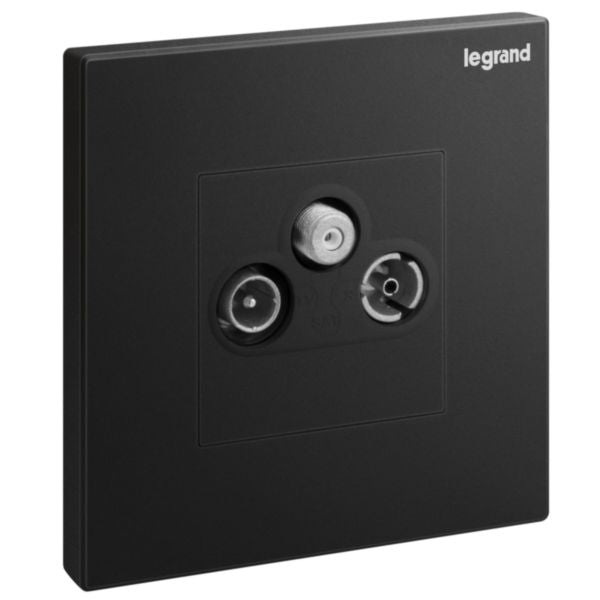

Shop Legrand Galion 1 Gang TV-R-SAT Socket Outlet Matt Black | 282459-C In Iraq Best Prices
Premium 1-gang TV-R-SAT socket outlet with honeycomb support frame, low 1dB attenuation, toolless installation, and halogen-free construction for reliable multimedia connectivity.
The Galion 1 Gang TV-R-SAT Socket Outlet in Matt Black is a premium multimedia connection solution designed for residential and commercial applications. This sophisticated outlet combines television, radio, and satellite connectivity in a single, elegant fixture, featuring a male connector with 9.52mm diameter for TV, a female connector for radio, and a female F-type screw connector for satellite reception. The product is delivered complete and ready to install with all necessary hardware included, featuring toolless installation for quick and effortless setup.
Engineered with precision and quality in mind, this socket outlet incorporates a honeycomb design supporting frame that ensures superior stability and rigidity. The low attenuation design maintains signal quality with only 1dB maximum loss, guaranteeing crystal-clear reception across all connected devices. The through-loss specifications of 1.5 dB at both 860 MHz and 2150 MHz demonstrate exceptional performance for digital and satellite signals. The matte black finish provides a contemporary aesthetic that complements modern interior designs while maintaining professional appearance in any setting.
This Legrand product meets stringent quality standards with halogen-free thermoplastic construction, IP20 degree of protection, and IK04 impact strength rating. Recommended for indoor use only, the outlet operates reliably across a temperature range of -5°C to 50°C. The flush-mounted design accommodates standard installation boxes with a minimum depth of 27.3mm, making it suitable for both new construction and renovation projects. Complete with mounting screws for both flush-mounted and surface-mounted boxes, this professional-grade socket outlet delivers dependable multimedia connectivity for years to come.
Key Features
- Multi-connector design with TV (9.52mm male), Radio (female), and Satellite (F-type screw) inputs
- Honeycomb support frame design for superior stability and rigidity
- Toolless installation for quick and effortless setup
- Low attenuation with 1dB maximum signal loss and 1.5dB through-loss at critical frequencies
- Halogen-free thermoplastic construction with IP20 protection and IK04 impact strength
- Complete package delivery with mounting screws for flush and surface-mounted installations
- Matte black finish providing contemporary aesthetic appeal
- Suitable for both new construction and renovation projects
- Reliable operation across -5°C to 50°C temperature range
- Professional-grade Legrand quality and durability
Technical Specifications
| Specification |
Value |
| Product Type | End Socket - TV/RD/SAT Outlet |
| Brand | Legrand - Galion Series |
| SKU/Reference | 282459-C |
| EAN Code | 3414971855977 |
| Number of Modules | 1 gang (Basic element with central cover plate) |
| Number of Outlets | 1 outlet (TV + Radio + Satellite) |
| Connector Types | Male 9.52mm (TV), Female (Radio), Female F-type screw (Satellite) |
| Installation Method | Flush-mounted with toolless installation |
| Mounting Type | Mounting with screw (includes screws for flush and surface-mounted boxes) |
| Through Loss at 860 MHz | 1.5 dB |
| Through Loss at 2150 MHz | 1.5 dB |
| Maximum Attenuation | 1 dB |
| Color | Matt Black |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Material | Thermoplastic |
| Material Quality | High-grade Thermoplastic |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Degree of Protection (IP Rating) | IP20 |
| Impact Strength (IK Rating) | IK04 |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 36.7 mm |
| Minimum Built-in Installation Box Depth | 27.3 mm |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Terminal Marking | No |
| Suitable for Cable Modem | No |
| Installation Location | Recommended for indoor use only |
| Delivery Package | Complete with paint and dust protection, includes mounting screws |
| Support Frame Design | Honeycomb design for stability and rigidity |
