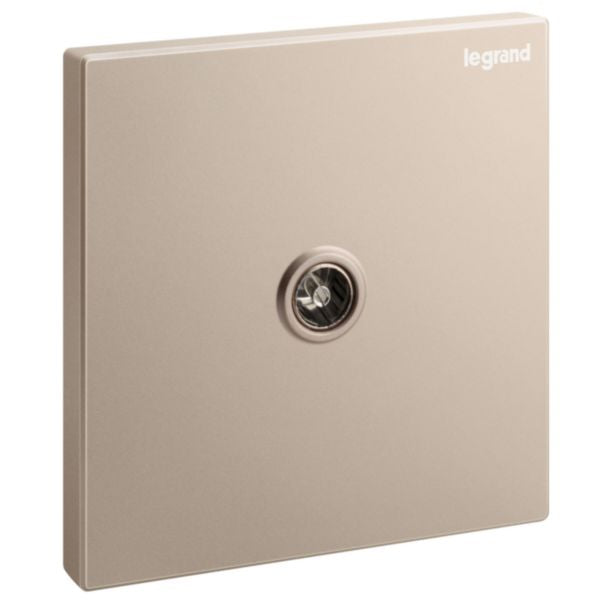

Shop Legrand Galion 1 Gang TV Female Terminal Socket Outlet Rose Gold | 282457-C1 In Iraq Best Prices
Premium Galion 1 Gang TV female terminal socket outlet with rose gold finish, featuring 9.5mm connector, 1dB maximum attenuation, toolless installation, and honeycomb support frame for optimal signal quality and stability.
The Galion 1 Gang TV Female Terminal Socket Outlet in Rose Gold is a premium wiring device designed for residential and commercial applications. This flush-mounted TV socket outlet features a 9.5mm female connector with exceptional signal quality and minimal attenuation of just 1dB maximum at 860 MHz. The product is delivered complete and ready for installation, featuring a sophisticated rose gold finish that complements modern interior designs.
This socket outlet utilizes a star cabling configuration where one socket connects to one cable from an antenna, splitter, or multiswitch, ensuring optimal signal transmission and installation flexibility. The honeycomb design supporting frame provides superior stability and rigidity, making it ideal for both new installations and renovation projects. The device is manufactured from high-quality thermoplastic material with halogen-free properties, meeting international safety standards and environmental regulations.
The Galion TV socket outlet comes with toolless installation capability and includes all necessary screws for both flush-mounting and surface-mounting applications on plastic or metal boxes. With an IP20 degree of protection and IK04 impact strength rating, it offers reliable performance in standard indoor environments. The product is protected with paint and dust protection during delivery, ensuring pristine condition upon arrival. Operating temperature range of -5 to 50°C makes it suitable for various climate conditions.
Key Features
- 9.5mm Female Connector with superior signal quality
- Minimal attenuation of 1dB maximum at 860 MHz for excellent signal transmission
- Star cabling configuration for flexible installation from antenna, splitter or multiswitch
- Honeycomb design supporting frame for enhanced stability and rigidity
- Toolless installation with included screws for flush or surface mounting
- Halogen-free thermoplastic material meeting international safety standards
- Rose gold finish complementing modern interior designs
- IP20 degree of protection and IK04 impact strength rating
- Operating temperature range -5 to 50°C for various climates
- Delivered with paint and dust protection ensuring pristine condition
Technical Specifications
| Specification |
Value |
| Product Type | TV Female Terminal Socket Outlet |
| Connector Type | 9.5mm Female Connector |
| Number of Gangs | 1 Gang |
| Number of Outlets | 1 |
| Mounting Method | Flush-mounted |
| Material | Thermoplastic (Halogen-free) |
| Colour | Rose Gold |
| Surface Finishing | Matt lacquered |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 32 mm |
| Minimum Built-in Installation Box Depth | 22.8 mm |
| Through Loss at 860 MHz | 1 dB maximum |
| Degree of Protection | IP20 |
| Degree of Impact Strength | IK04 |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Type of Fastening | Mounting with screw |
| Installation Type | Toolless installation |
| Included Accessories | Screws for flush-mounting or surface-mounting boxes, plastic or metal |
| Suitable for Cable Modem | No |
| DAB+ Support | No |
| Antimicrobial Treatment | No |
| Terminal Marking Indication | No |
| Reference Number | 282457-C1 |
| EAN Code | 3414971855670 |
Order Legrand Galion 1 Gang TV Female Terminal Socket Outlet Rose Gold | 282457-C1 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
