Shop Legrand Galion 1 Gang TV Female Terminal Socket Outlet Matt Black | 282457-C In Iraq Best Prices
Professional TV socket outlet with 9.5mm female connector, 1dB low attenuation, honeycomb support frame, toolless installation, and halogen-free construction for reliable indoor television distribution.

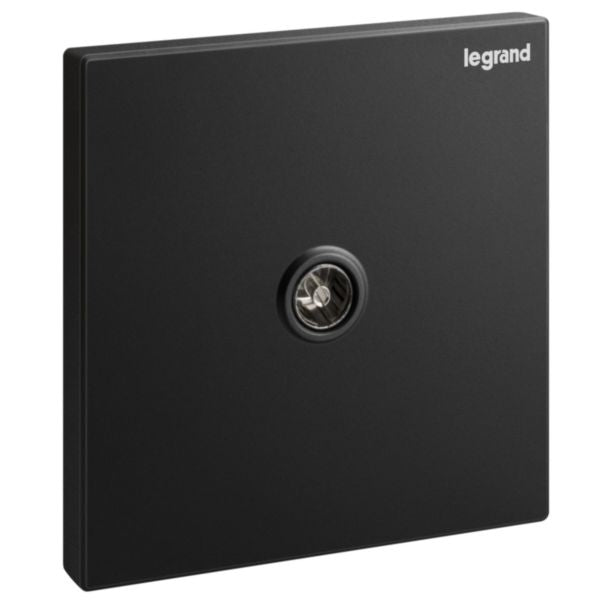

The Galion 1 Gang TV Female Terminal Socket Outlet in Matt Black (REF. 282457-C) is a professional-grade television socket designed for seamless integration into residential and commercial installations. This flush-mounted outlet features a 9.5mm female connector with exceptional low attenuation of just 1dB maximum, ensuring superior signal quality and minimal signal loss. The socket employs star cabling architecture where each socket connects directly to an antenna, splitter, or multiswitch, providing optimal flexibility and performance in television distribution systems.
Crafted from high-quality thermoplastic material with a lacquered matt black finish, this socket outlet combines durability with aesthetic appeal. The innovative honeycomb design supporting frame provides exceptional stability and rigidity, preventing signal degradation and physical damage. The product is delivered complete and ready to install, with protective paint and dust coating applied at the factory. Installation is toolless and straightforward, accommodating both flush-mounted and surface-mounted configurations through the included screws compatible with plastic or metal boxes.
With an IP20 protection rating and IK04 impact strength rating, this outlet is suitable for indoor use and offers reliable performance across a wide operating temperature range of -5°C to 50°C. The halogen-free construction meets environmental and safety standards, making it an excellent choice for modern building installations. The through loss specification of 1dB at 860MHz demonstrates its capability to handle contemporary broadcasting frequencies without compromise.
Key Features
- 9.5mm Female Connector with Low Attenuation - Delivers superior signal quality with maximum 1dB attenuation at 860MHz for optimal TV reception
- Honeycomb Design Support Frame - Provides exceptional stability, rigidity, and protection against signal degradation and physical damage
- Toolless Installation - Simple and quick installation process compatible with both flush-mounted and surface-mounted configurations
- Star Cabling Architecture - Each socket connects directly to antenna, splitter, or multiswitch for maximum flexibility and performance
- Halogen-Free Material Construction - Environmentally friendly thermoplastic material meets modern safety and sustainability standards
- Matt Black Lacquered Finish - Aesthetically pleasing durable coating that resists wear and maintains appearance over time
- Complete Ready-to-Install Package - Delivered with protective paint coating, dust protection, and mounting screws included
- Wide Operating Temperature Range - Functions reliably from -5°C to 50°C with storage capability from -10°C to 70°C
Technical Specifications
| Specification |
Value |
| Product Reference | 282457-C |
| EAN Code | 3414971855649 |
| Brand | Legrand - Galion |
| Socket Type | TV Female Terminal Socket Outlet |
| Connector Size | 9.5mm Female Connector |
| Number of Gangs | 1 Gang |
| Number of Outlets | 1 |
| Through Loss at 860 MHz | 1 dB Maximum |
| Installation Type | Flush-mounted with screw fastening |
| Mounting Method | Flush-mounted or Surface-mounted |
| Material | Thermoplastic |
| Surface Finish | Lacquered Matt Black |
| Color | Black |
| Halogen Free | Yes |
| IP Protection Rating | IP20 |
| Impact Strength Rating | IK04 |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 32 mm |
| Minimum Installation Box Depth | 22.8 mm |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Number of Modules | 1 Module System |
| Assembly Arrangement | Basic Element with Full Cover Plate |
| Installation Method | Toolless Installation |
| Cable Modem Compatible | No |
| DAB+ Compatible | No |
| Terminal Marking | No |
| Antimicrobial Treatment | No |
| Recommended Use | Indoor Use Only |
Order Legrand Galion 1 Gang TV Female Terminal Socket Outlet Matt Black | 282457-C at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
