Premium 1 gang TV female terminal socket outlet with 9.5mm connector, 1dB maximum attenuation, toolless installation, and honeycomb support frame for superior signal quality and stability.

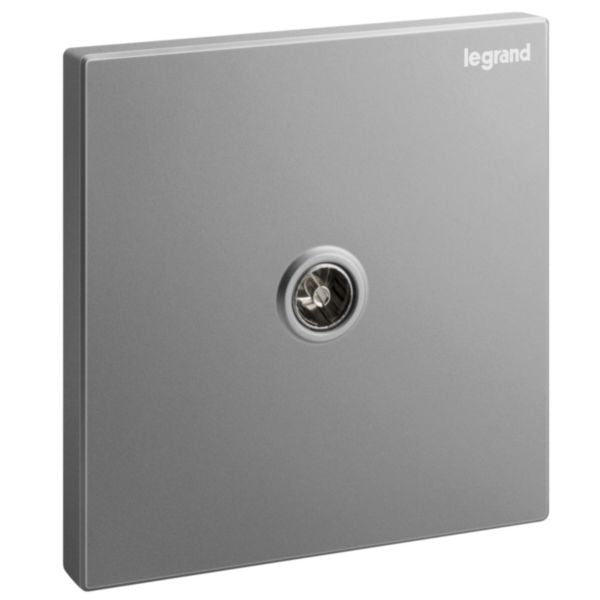

The Galion 1 Gang TV Female Terminal Socket Outlet in Dark Silver is a premium wiring device designed for reliable television signal distribution in residential and commercial installations. This flush-mounted socket outlet features a 9.5mm diameter female connector with exceptional low attenuation of only 1dB maximum, ensuring superior signal quality and minimal signal loss. The product incorporates a honeycomb design supporting frame that provides excellent stability and rigidity for long-term durability and performance.
This socket outlet is engineered for toolless installation, making it ideal for both professional installers and DIY enthusiasts. It comes complete and ready to install under a single catalog number, with all necessary mounting screws included for both flush-mounting and surface-mounting applications on plastic or metal boxes. The product features a thermoplastic construction with a lacquered matt finish, providing both aesthetic appeal and protection against environmental factors.
The Galion TV socket outlet supports star cabling configuration where one socket equals one cable to antenna, splitter, or multiswitch, offering flexible installation options. With an IP20 degree of protection and IK04 impact strength rating, this outlet is suitable for indoor use and provides reliable performance across operating temperatures from -5°C to 50°C. The product comes with paint and dust protection, ensuring pristine condition upon delivery and installation.
Key Features
- 9.5mm diameter female connector with low attenuation 1dB maximum for superior signal quality
- Toolless installation design for quick and easy mounting on flush or surface boxes
- Honeycomb design supporting frame providing excellent stability and rigidity
- Star cabling configuration supporting flexible installation options with antenna or multiswitch
- Complete package delivered with mounting screws for plastic and metal boxes with paint and dust protection
Technical Specifications
| Specification |
Value |
| Model | End socket TV outlet |
| Connector Type | Female terminal connector 9.5mm diameter |
| Through Loss at 860 MHz | 1 dB maximum |
| Mounting Method | Flush-mounted with screw fastening |
| Number of Modules | 1 module system |
| Number of Outlets | 1 outlet |
| Material | Thermoplastic with lacquered matt finish |
| Surface Protection | Lacquered |
| Halogen Free | Yes |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 32 mm |
| Minimum Installation Box Depth | 22.8 mm |
| Operating Temperature Range | -5°C to 50°C |
| Storage Temperature Range | -10°C to 70°C |
| Installation Type | Toolless installation |
| Cable Configuration | Star cabling - 1 socket = 1 cable to antenna, splitter or multiswitch |
| Recommended Use | Inside use only |
