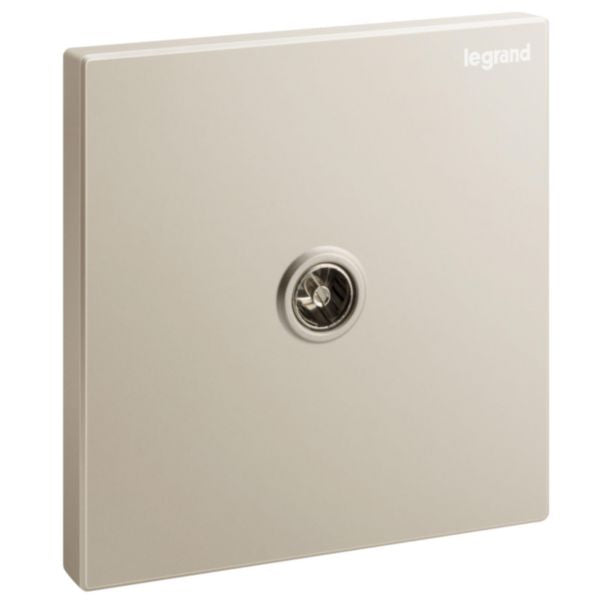

Shop Legrand Galion 1 Gang TV Female Terminal Socket Outlet Champagne | 282457-C2 In Iraq Best Prices
Professional TV socket outlet with 9.5mm female connector, low 1dB attenuation, toolless installation, and champagne finish for seamless television reception in residential and commercial applications.
The Galion 1 Gang TV Female Terminal Socket Outlet in Champagne is a professional-grade television connection solution designed for residential and commercial installations. This high-quality socket outlet features a 9.5mm female connector specifically engineered for optimal TV signal reception with minimal signal loss. The product is delivered complete and ready to install, incorporating advanced honeycomb design supporting frame technology that ensures exceptional stability and rigidity for long-lasting performance.
This TV socket outlet is engineered with low attenuation characteristics, with a maximum signal loss of just 1dB at 860 MHz, ensuring crystal-clear television reception. The star cabling configuration allows for efficient installation where each socket connects directly to a cable, antenna, or multiswitch, providing flexibility in system design. The socket is housed in a thermoplastic material body with lacquered, matt finish in an elegant champagne color that complements modern interior designs.
The Galion TV socket outlet is manufactured to the highest standards with halogen-free materials, ensuring safety and environmental compliance. It features toolless installation capability for quick and easy setup, and comes complete with mounting screws suitable for both flush-mounting and surface-mounting boxes, whether plastic or metal. With an IP20 protection rating and IK04 impact strength rating, this product delivers reliable performance in standard indoor environments.
Key Features
- 9.5mm female connector for optimal TV signal reception
- Low attenuation of 1dB maximum at 860 MHz for clear signal quality
- Star cabling configuration for flexible installation options
- Toolless installation for quick and easy setup
- Halogen-free thermoplastic material with lacquered matt champagne finish
- Complete package with mounting screws for flush and surface mounting
- Honeycomb design supporting frame for exceptional stability and rigidity
- IP20 protection rating suitable for standard indoor environments
- IK04 impact strength rating for reliable durability
- Delivered with paint and dust protection for pristine condition
Technical Specifications
| Specification |
Value |
| Product Type | TV Female Terminal Socket Outlet |
| Connector Type | 9.5mm Female Connector |
| Number of Modules | 1 Gang |
| Mounting Method | Flush-mounted |
| Number of Outlets | 1 |
| Through Loss at 860 MHz | 1 dB (Maximum) |
| Material | Thermoplastic |
| Surface Finish | Lacquered Matt |
| Color | Champagne |
| Halogen Free | Yes |
| IP Rating | IP20 |
| Impact Strength Rating | IK04 |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 32 mm |
| Minimum Built-in Installation Box Depth | 22.8 mm |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Installation Type | Toolless Installation |
| Fastening Type | Mounting with Screw |
| Assembly Arrangement | Basic Element with Full Cover Plate |
| Suitable for Cable Modem | No |
| DAB+ Compatible | No |
| Reference Number | 282457-C2 |
| EAN Code | 3414972022514 |
Order Legrand Galion 1 Gang TV Female Terminal Socket Outlet Champagne | 282457-C2 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
