Shop Legrand Galion 1 Gang F-Type TV Socket Outlet Rose Gold | 282449-C1 In Iraq Best Prices
Premium F-type TV socket outlet with rose gold finish, low attenuation design, and toolless installation for modern home entertainment systems

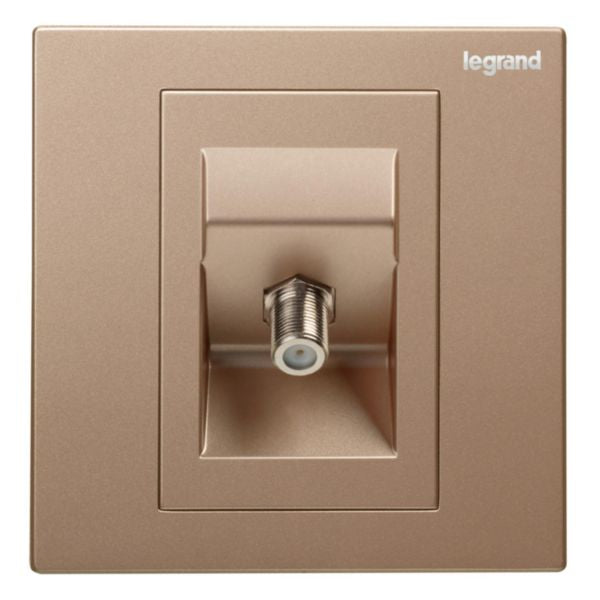

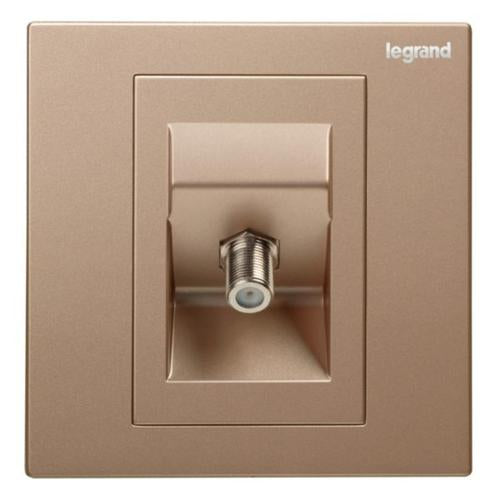

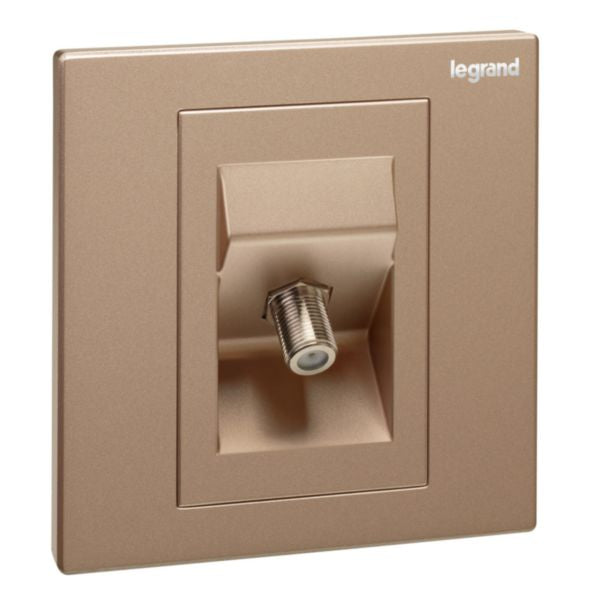

The Galion 1 Gang F-Type TV Socket Outlet in Rose Gold is a premium television connection solution designed for modern homes and buildings. This flush-mounted socket outlet features an F screw-type connector specifically engineered for satellite television reception with exceptional signal quality. The product is delivered complete and ready for installation, featuring a sophisticated rose gold finish that complements contemporary interior designs while maintaining functional excellence.
This TV socket outlet is equipped with advanced low attenuation technology, offering a maximum signal loss of just 1dB at 860 MHz, ensuring optimal picture and sound quality for your television viewing experience. The star cabling design supports a single cable connection from the antenna, splitter, or multiswitch to the socket, providing a clean and organized installation. The honeycomb design supporting frame delivers superior stability and rigidity, preventing signal interference and ensuring long-term reliability.
The Galion socket outlet is constructed from high-quality thermoplastic material that is halogen-free, making it environmentally responsible and safe for residential use. With an IP20 degree of protection and IK04 impact strength rating, this product is built to withstand everyday use in indoor environments. Installation is toolless and straightforward, with the product delivered complete with paint and dust protection, along with all necessary screws for both flush-mounting and surface-mounting applications on plastic or metal boxes.
Key Features
- F screw-type connector specifically designed for satellite television reception
- Low attenuation technology with maximum 1dB signal loss at 860 MHz
- Star cabling design supporting single cable connection from antenna or multiswitch
- Honeycomb design supporting frame for superior stability and signal integrity
- Toolless installation with complete delivery including screws and dust protection
- Halogen-free thermoplastic material for environmental and safety compliance
- Rose gold finish complementing contemporary interior design aesthetics
- IP20 protection degree suitable for indoor residential applications
Technical Specifications
| Specification |
Value |
| Product Type | End socket TV outlet |
| Connector Type | F screw-type connector for satellite |
| Number of Outlets | 1 gang |
| Mounting Method | Flush-mounted |
| Color | Rose Gold |
| Material | Halogen-free thermoplastic |
| Surface Protection | Lacquered Matt finish |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 48.5 mm |
| Minimum Built-in Installation Box Depth | 24.3 mm |
| Through Loss at 860 MHz | 1 dB maximum |
| Degree of Protection (IP) | IP20 |
| Degree of Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5°C to +50°C |
| Storage Temperature Range | -10°C to +70°C |
| Type of Fastening | Mounting with screw |
| Installation Method | Toolless installation |
| Cabling System | Star cabling: 1 socket = 1 cable to antenna, splitter or multiswitch |
| SKU | 282449-C1 |
| EAN | 3414971701335 |
Order Legrand Galion 1 Gang F-Type TV Socket Outlet Rose Gold | 282449-C1 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
