Shop Legrand Galion 1 Gang Double USB 2.4A Type-A Charger Matt Black | 282447-C In Iraq Best Prices
Galion dual USB 2.4A Type-A charger with 12W power output, ideal for charging two devices simultaneously. Features overvoltage protection, low passive consumption, and sleek Matt Black finish.

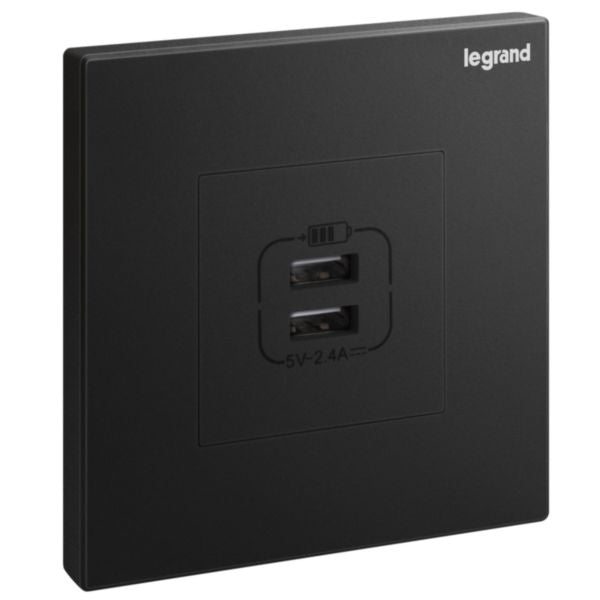

The Galion 1 Gang Double USB 2.4A Type-A USB Charger in Matt Black is a premium charging solution designed for modern homes and buildings. This innovative socket combines dual USB Type-A ports with a powerful 2.4A output capacity, delivering 12W of charging power ideal for simultaneously charging two portable devices such as smartphones, tablets, MP4 players, loudspeakers, smartwatches, gaming consoles, and power banks. The product features advanced overvoltage protection and maintains exceptionally low passive mode consumption of less than 0.1W, making it energy-efficient and environmentally responsible.
Crafted with the Galion design philosophy, this USB charger comes complete and ready to install as a single unit under catalog number 282447-C. The device incorporates a honeycomb design supporting frame that ensures superior stability and rigidity during installation and daily use. The product is delivered with paint and dust protection, along with all necessary mounting screws compatible with both flush-mounted and surface-mounted boxes, whether plastic or metal. The sleek Matt Black finish adds contemporary elegance to any interior decor while maintaining professional aesthetics.
With an operating voltage range of 100-240V and frequency compatibility of 50-60Hz, this USB charger is suitable for global use. The device features a maximum output current of 3000mA and maintains a consistent 5V output voltage. It includes a convenient battery pictogram indicator for charging status. Recommended for indoor use only, this product meets IP40 degree of protection and IK04 impact strength standards, ensuring durability and safety in residential and commercial environments.
Key Features
- Dual USB Type-A ports with 2.4A output capacity per port
- 12W total charging power ideal for smartphones, tablets, and portable devices
- Advanced overvoltage protection with passive mode consumption below 0.1W
- Honeycomb design supporting frame for enhanced stability and rigidity
- Universal voltage compatibility 100-240V AC, 50-60Hz frequency support
- Battery pictogram indicator for convenient charging status visualization
- Complete installation package with mounting screws for flush or surface mounting
- Sleek Matt Black finish with contemporary aesthetic design
- IP40 degree of protection and IK04 impact strength standards
- Halogen-free construction for environmental safety
Technical Specifications
| Specification |
Value |
| Product Model | Galion 1 Gang Double USB 2.4A Type-A Charger |
| Reference Number | 282447-C |
| EAN Code | 3414971855250 |
| USB Ports Configuration | 2x USB Type-A ports, 0x USB Type-C ports |
| Operating Voltage | 100-240V AC |
| Frequency Range | 50-60 Hz |
| Maximum Output Current | 3000 mA (3A) |
| Output Voltage | 5V DC |
| Power Output | 12W total (6W per port) |
| Power Consumption | 0.068W (active mode), <0.1W (passive mode) |
| Supply Current | 0.5A (Min-Max) |
| Connection Type | Screwed terminal 2P+E tap-off connection via 2.5 mm² terminals |
| Number of Terminals | 2 terminals |
| Terminal Capacity | 1.5-2.5 mm² flexible or rigid cable |
| Mounting Method | Flush-mounted or surface-mounted boxes (plastic or metal) |
| Device Dimensions | Width: 86mm, Height: 88mm, Depth: 40mm |
| Built-in Depth | 30.9mm |
| Minimum Installation Box Depth | 40mm |
| Colour | Matt Black |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | 5°C to 40°C |
| Storage Temperature Range | -20°C to 70°C |
| Number of Modules | 2 module system |
| Voltage Type | AC (Alternating Current) |
| Power Delivery Support | No |
| Antimicrobial Treatment | No |
| Wireless Capability | No |
| Halogen Free | Yes |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Stress Test Conformity (1000V) | No |
| Installation Accessories | Includes screws for flush-mounted and surface-mounted boxes, paint and dust protection |
| Recommended Use | Indoor use only |
| Compatible Devices | Smartphones, tablets, MP4 players, loudspeakers, smartwatches, gaming consoles, power banks |
Order Legrand Galion 1 Gang Double USB 2.4A Type-A Charger Matt Black | 282447-C at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
