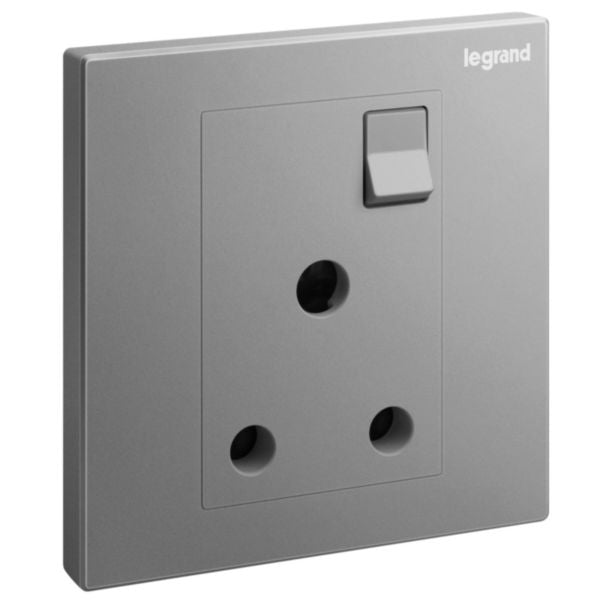

Shop Legrand Galion 1 Gang British Standard Switched Socket Outlet 15A Dark Silver | 282437-C3 In Iraq Best Prices
Premium 15A British Standard switched socket outlet with safety shutters, screw terminals, and honeycomb support frame. Ready-to-install with enhanced child protection and flexible mounting options.
The Galion 1 gang British Standard switched single pole socket outlet is a premium electrical accessory designed for residential and commercial applications. This 15A, 250V~ outlet features advanced safety mechanisms including honeycomb design supporting frame for enhanced stability and rigidity, along with safety shutters to maximize child protection. The outlet is equipped with screw type terminals for enhanced contacts and marked terminals for easy identification, ensuring secure and reliable electrical connections. The strip length indicator helps avoid waste of wires during installation, making it an efficient choice for professional electricians and DIY enthusiasts alike.
This switched socket outlet comes complete and ready to install under a single catalog number (282437-C3). The product is delivered with paint and dust protection, along with screws for both flush-mounting and surface-mounting installation options, compatible with plastic or metal boxes. The device features an eject mechanism for convenient plug removal and enhanced contact protection to ensure long-lasting performance. With its Dark Silver finish and modern design, the Galion socket outlet seamlessly integrates into contemporary home and building environments while maintaining the highest safety and quality standards.
The technical specifications include IP20 degree of protection and IK04 degree of impact strength, making it suitable for indoor use environments. Operating temperature range of -5 to 50°C ensures reliable performance across various climatic conditions. The outlet accepts cable sections of 1-4 mm² with both flexible and rigid cables, providing versatile installation options. This product is halogen-free and manufactured from high-quality thermoplastic material with a matt lacquered surface finish for durability and aesthetic appeal.
Key Features
- Safety shutters for maximum child protection and enhanced safety
- Screw type terminals for enhanced contacts and secure connections
- Honeycomb design supporting frame for superior stability and rigidity
- Marked terminals for easy identification during installation
- Strip length indicator to minimize wire waste
- Eject mechanism for convenient plug removal
- Enhanced contact protection for long-lasting durability
- Ready-to-install complete package with paint and dust protection
- Compatible with flush-mounting and surface-mounting boxes
- Halogen-free thermoplastic material for environmental safety
Technical Specifications
| Specification |
Value |
| Model | British Standard |
| Nominal Current | 15 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 |
| Socket Outlets Switchable | 1 |
| Protective Contact | Round |
| Connection Type | Screwed Terminal |
| Material | Thermoplastic |
| Material Quality | High-grade Plastic |
| Halogen Free | Yes |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Colour | Dark Silver |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 36.5 mm |
| Built-in Depth | 24.6 mm |
| Minimum Built-in Installation Box Depth | 30 mm |
| Degree of Protection (IP) | IP20 |
| Degree of Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5 to 50 °C |
| Storage Temperature Range | -10 to 70 °C |
| Voltage Type | AC |
| Terminals Capacity | 1-4 mm² |
| Cable Section | 1-4 mm² |
| Cable Nature for Connection | Flexible or Rigid |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with Screw |
| With On/Off Switch | Yes |
| With Enhanced Contact Protection | Yes |
| Eject-mechanism | Yes |
| Terminal Marking Indication | Yes |
| Concurrently Switching Neutral Conductor | No |
| With Complementary Luminous Signal | No |
| With Hinged Lid | No |
| Lockable | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Power Delivery | No |
| Product Reference | 282437-C3 |
| EAN Code | 3414971702837 |
Order Legrand Galion 1 Gang British Standard Switched Socket Outlet 15A Dark Silver | 282437-C3 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
