Shop Legrand Galion 1 Gang British Standard Switched Socket 13A Champagne | 282432-C2 In Iraq Best Prices
Premium 13A British Standard switched socket outlet with champagne finish, safety shutters, screw terminals, and honeycomb frame design for enhanced stability and child protection.

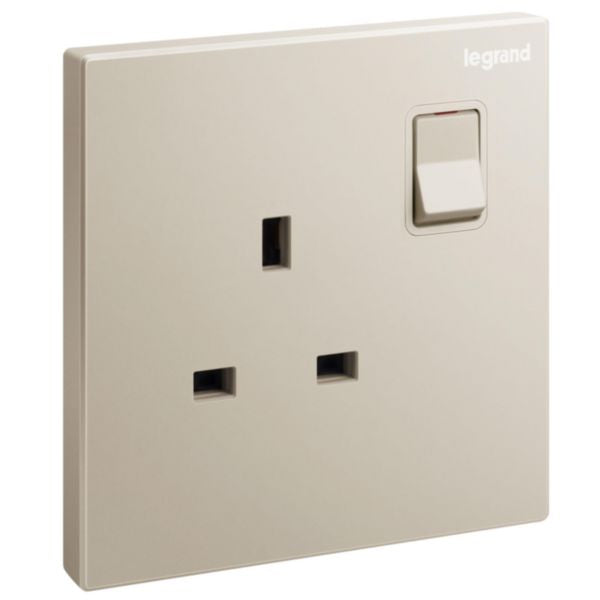

The Galion 1 Gang British Standard Switched Single Pole Socket Outlet is a premium electrical outlet designed for residential and commercial applications. This 13A, 250V socket outlet features a champagne finish that complements modern interior designs. The product is manufactured by Legrand, a trusted leader in electrical infrastructure solutions, and comes complete and ready for installation. It features screw-type terminals for secure and enhanced contacts, ensuring reliable electrical connections. The honeycomb design supporting frame provides exceptional stability and rigidity for long-lasting performance. Safety is a priority with fitted safety shutters to maximize child protection, making it ideal for family homes and facilities with children.
This socket outlet is specifically designed for British Standard applications and incorporates marked terminals for easy identification during installation and maintenance. The strip length indicator avoids waste of wires, making installation more efficient and cost-effective. The device features enhanced contact protection and operates at 50-60 Hz frequency with a nominal current of 13A and nominal voltage of 250V. It is suitable for IP20 degree of protection and IK04 impact strength rating. The compact dimensions of 86mm width, 88mm height, and 29.6mm depth make it compatible with standard flush-mounted installation boxes with a minimum depth of 25mm.
The Galion socket outlet is manufactured from high-quality thermoplastic material that is halogen-free and lacquered with a glossy finish for durability and aesthetic appeal. It includes a built-in on/off switch for convenient control and features terminal marking indication for proper wire connection. The product is delivered with paint and dust protection and includes screws for both flush-mounting and surface-mounting boxes, accommodating both plastic and metal installations. Operating temperature range is -5 to 50°C, with storage temperature range of -10 to 70°C, ensuring reliable performance in various environmental conditions.
Key Features
- 2P+E British Standard socket outlet rated 13A at 250V~
- Safety shutters to maximize child protection and security
- Screw-type terminals for secure and enhanced electrical contacts
- Honeycomb design supporting frame for superior stability and rigidity
- Marked terminals for easy identification during installation and maintenance
- Strip length indicator to minimize wire waste during installation
- Enhanced contact protection for reliable long-term performance
- Halogen-free thermoplastic material for environmental safety
- Includes on/off switch for convenient power control
- Supplied with mounting screws for flush and surface mounting
Technical Specifications
| Specification |
Value |
| Model | British Standard |
| Nominal Current | 13 A |
| Nominal Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| Socket Type | 2P+E British Standard |
| Number of Socket Outlets | 1 |
| Connection Type | Screwed Terminal |
| Number of Modules | 2 |
| Cable Section | 1-4 mm² |
| Material | Thermoplastic (Halogen-free) |
| Surface Finish | Lacquered Glossy |
| Color | Champagne |
| Device Width | 86 mm |
| Device Height | 88 mm |
| Device Depth | 29.6 mm |
| Built-in Depth | 18 mm |
| Minimum Installation Box Depth | 25 mm |
| Degree of Protection (IP) | IP20 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5 to 50°C |
| Storage Temperature Range | -10 to 70°C |
| Mounting Method | Flush-mounted |
| Type of Fastening | Mounting with Screw |
| With On/Off Switch | Yes |
| Enhanced Contact Protection | Yes |
| Safety Shutters | Yes |
| Terminal Marking Indication | Yes |
| Reference Number | 282432-C2 |
| EAN Code | 3414971700642 |
Order Legrand Galion 1 Gang British Standard Switched Socket 13A Champagne | 282432-C2 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
