Shop Legrand Forix Workstation 6 Gang Surface Mounting Box Legrand | 782496 In Iraq Best Prices
Professional 6-gang surface mounting workstation with IP2X protection, IK04 impact resistance, and flexible cable management for residential and commercial electrical installations.

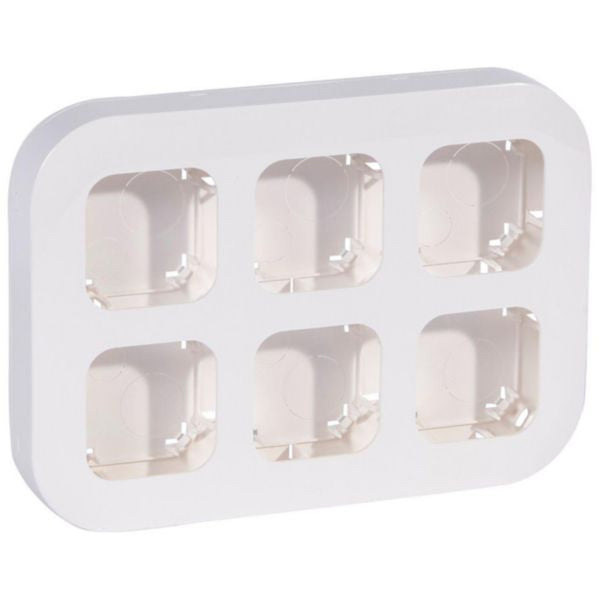

The Forix Workstation 6 Gang Surface Mounting Box is a professional-grade electrical installation component designed for modern building infrastructure. This horizontally or vertically mountable workstation provides a robust solution for cable management and device integration, conforming to IEC standards with comprehensive cable separation capabilities when fully equipped. The unit features pre-cut entries ranging from 20 x 12.5 mm up to 40 x 12.5 mm, allowing flexible integration of flush-mounting flexible conduits and surface-mounting mini-trunking systems.
Manufactured by Legrand with reference number 782496 and EAN 3245067824962, this workstation is constructed from high-quality thermoplastic material in white RAL 9003 with a glossy finish. It accommodates all Forix IP2X surface-mounting mechanisms or Mosaic/Arteor mechanisms with appropriate adapters, making it an ideal choice for residential and commercial applications. The unit maintains halogen-free construction standards and provides IP2X degree of protection with IK04 impact resistance rating.
This 6-gang workstation measures 280mm in width, 200mm in height, and 34.5mm in depth, offering a compact yet spacious design for equipment installation. It features labeled marking areas for organization, includes both a cover plate and main plate, and supports both horizontal and vertical mounting orientations. The product operates reliably across temperature ranges from -25°C to 60°C, ensuring durability in various environmental conditions.
Key Features
- IP2X degree of protection for safe electrical installation
- IK04 impact resistance rating for durability
- Horizontal and vertical mounting flexibility
- Pre-cut cable entries from 20 x 12.5 mm to 40 x 12.5 mm
- Halogen-free thermoplastic construction
- Accepts Forix IP2X, Mosaic, and Arteor mechanisms with adapters
- Label marking areas for organization
- Compatible with flush-mounting flexible conduits and mini-trunking
- Glossy white finish RAL 9003
- Temperature resistant from -25°C to 60°C
Technical Specifications
| Specification |
Value |
| Product Reference | 782496 |
| EAN Code | 3245067824962 |
| Brand | Legrand |
| Assembly Type | Surface mounted box |
| Number of Modules | 6 gang |
| Mounting Direction | Horizontal and vertical |
| Width | 280 mm |
| Height | 200 mm |
| Depth | 34.5 mm |
| Material | Thermoplastic |
| Color | White RAL 9003 |
| Surface Finish | Glossy |
| Degree of Protection | IP2X |
| Impact Resistance | IK04 |
| Halogen Free | Yes |
| Operating Temperature Range | -25°C to 60°C |
| Storage Temperature Range | -25°C to 60°C |
| Cable Entry Options | Pre-cut entries 20 x 12.5 mm to 40 x 12.5 mm |
| Compatible Mechanisms | Forix IP2X, Mosaic, Arteor with adapters |
| Standard Compliance | IEC standard |
