Description

Shop Legrand Forix One-way Switch 2P+E German Socket Outlet 16A 250V White | 782371 In Iraq Best Prices

Professional-grade Forix surface-mounted combination switch and German socket outlet with IP44 protection, 16A 250V capacity, and integrated lighting for residential and commercial applications.

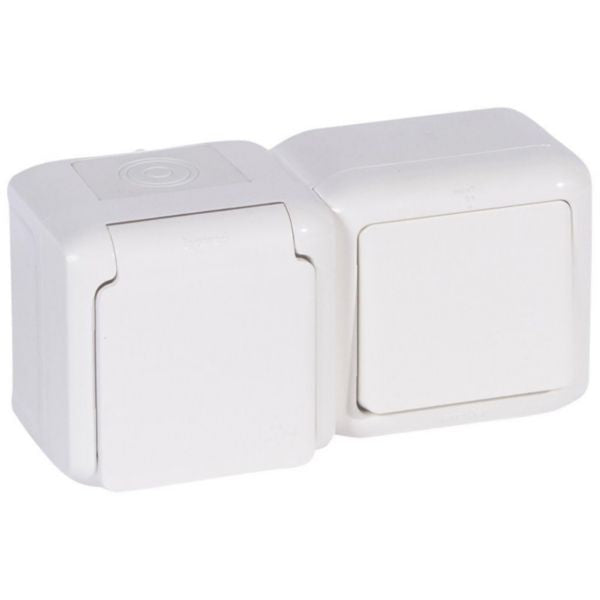

The Forix One-way Switch combined with a 2P+E German standard socket outlet is a premium surface-mounted electrical component designed for modern residential and commercial installations. This IP44-rated device combines functionality and durability, featuring a robust thermoplastic construction with a glossy white finish (RAL 9003). The product is engineered to meet international standards including IEC 60669-1 (2007) for switches and IEC 60884-1 (2006) for socket outlets, ensuring reliable performance and safety compliance. This combination unit integrates a one-way switch mechanism with protective contact (CEE 7/3 type F) socket outlet rated for 16A at 250V AC. The device features screw terminals for secure 2.5mm² cable connections and is equipped with integrated lighting capability that can be enhanced with optional illuminated rockers. The halogen-free thermoplastic material ensures environmental safety and fire resistance, making it suitable for various applications including kitchens, bathrooms, and commercial spaces where moisture resistance is essential. The Forix range represents a professional-grade solution for surface-mounted installations, offering horizontal and vertical mounting flexibility with comprehensive technical documentation and certification. Its sleek design, combined with IP44 protection rating and weatherproof capabilities, makes it an ideal choice for both residential renovations and new construction projects requiring reliable electrical switching and socket solutions.

Key Features

  • IP44 rated weatherproof protection for moisture-prone environments
  • Combination one-way switch with 2P+E German standard socket outlet
  • Surface-mounted design with horizontal and vertical mounting flexibility
  • Integrated lighting capability with optional illuminated rockers
  • Halogen-free thermoplastic construction for fire safety and environmental compliance
  • Screw terminals supporting 2.5mm² cable connections
  • 16A rated capacity at 250V AC for reliable power distribution
  • Glossy white finish (RAL 9003) for modern aesthetic appeal
  • Conforms to IEC 60669-1 and IEC 60884-1 international standards
  • Operating temperature range -25°C to +60°C for year-round reliability

Technical Specifications

Specification Value
Product TypeOne-way Switch with 2P+E German Socket Outlet Combination
Rated Voltage250V AC
Rated Current16A
Socket TypeCEE 7/3 (Type F) Protective Contact
Protection RatingIP44
MaterialHalogen-free Thermoplastic
ColorWhite (RAL 9003)
FinishGlossy
Mounting MethodSurface Mounted
Mounting DirectionHorizontal and Vertical
Fastening TypeScrew Mounting
Terminal TypeScrew Terminals
Cable Section2.5-2.5 mm²
Device Width140 mm
Device Height70 mm
Device Depth57 mm
Operating Temperature Range-25°C to +60°C
Storage Temperature Range-25°C to +60°C
IlluminationYes (with optional illuminated rockers)
Voltage TypeAC
Number of Socket Outlets1
Switch TypeOff Switch (One-way)
Operation MethodRocker/Button
Surface ProtectionUntreated
Standards ComplianceIEC 60669-1 (2007), IEC 60884-1 (2006)

Order Legrand Forix One-way Switch 2P+E German Socket Outlet 16A 250V White | 782371 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
