Shop Legrand Forix German Standard Double Socket 2x2P+E Surface Mount White | 782413 In Iraq Best Prices
Dual German standard socket outlet with 16A capacity, surface-mounted design, halogen-free thermoplastic construction, IP20 protection, and loop-through functionality for reliable electrical distribution.

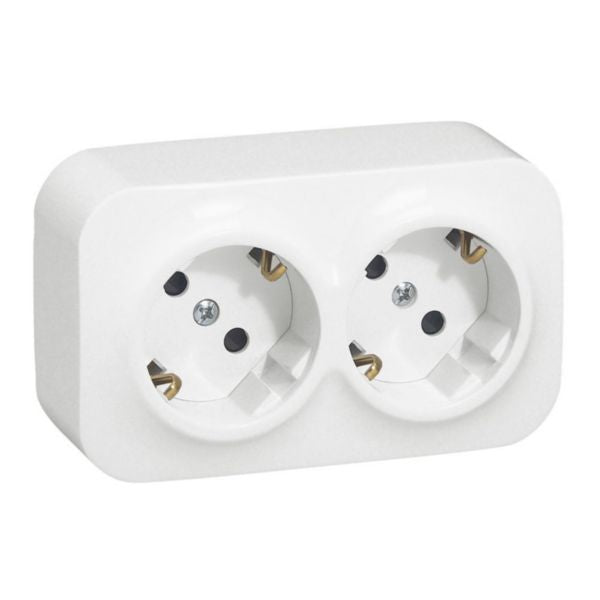

The Forix German Standard Socket 2x2P+E is a professional-grade surface-mounted electrical outlet designed for residential and commercial applications. This dual socket configuration provides convenient access to two independent German standard outlets (CEE 7/3 Type F) in a single compact unit. With a rated capacity of 16A at 250V~, this outlet is suitable for powering various electrical devices and appliances. The white thermoplastic construction offers durability and a clean aesthetic appearance suitable for modern interior designs.
This surface-mounting outlet features advanced safety characteristics including protective contact grounding, impact resistance rated at IK04, and IP20 protection rating against dust and moisture ingress. The screwed terminal connection type ensures secure and reliable electrical connections, while the loop-through function allows for convenient daisy-chaining of multiple outlets. The halogen-free material composition meets environmental compliance standards and RoHS directives, making it suitable for eco-conscious installations. Operating temperature range of -25°C to +60°C ensures reliable performance in various environmental conditions.
The Forix range represents Legrand's commitment to quality electrical infrastructure solutions. This particular model combines German standardization with European safety certifications, making it an ideal choice for installations requiring compliance with international electrical standards. The 110mm width, 65mm height, and 38.5mm depth dimensions allow for seamless integration into existing electrical systems and building infrastructure.
Key Features
- Dual German Standard CEE 7/3 Type F Socket Outlets for convenient dual-device connectivity
- 16A rated current capacity at 250V~ with 50-60Hz frequency compatibility
- Surface-mounted installation with screw fastening for easy wall integration
- IP20 protection rating against dust and moisture ingress with IK04 impact resistance
- Halogen-free thermoplastic white construction meeting RoHS compliance and environmental standards
- Loop-through function enabling daisy-chain connection of multiple outlets
- Protective contact grounding for enhanced electrical safety
- Operating temperature range -25°C to +60°C for versatile climate compatibility
- Screwed terminal connection type ensuring secure electrical connections
- Compact dimensions 110x65x38.5mm for seamless integration into existing installations
Technical Specifications
| Specification |
Value |
| Product Type | Socket outlet with protective contact CEE 7/3 (Type F) |
| Number of Sockets | 2 independent socket outlets |
| Rated Current | 16 A |
| Rated Voltage | 250 V~ |
| Frequency | 50-60 Hz |
| Protection Rating | IP20 (protection against dust and moisture) |
| Impact Strength Rating | IK04 |
| Material | Halogen-free thermoplastic |
| Color | White (RAL 9003) |
| Mounting Method | Surface mounted with screw fastening |
| Connection Type | Screwed terminal |
| Cable Section | 2.5 mm² (flexible or rigid) |
| Device Width | 110 mm |
| Device Height | 65 mm |
| Device Depth | 38.5 mm |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -25°C to +60°C |
| Loop-Through Function | Yes |
| Protective Contact | Yes (grounding) |
| RoHS Compliance | Yes |
| SKU | 782413 |
| EAN | 3245067824139 |
Order Legrand Forix German Standard Double Socket 2x2P+E Surface Mount White | 782413 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
