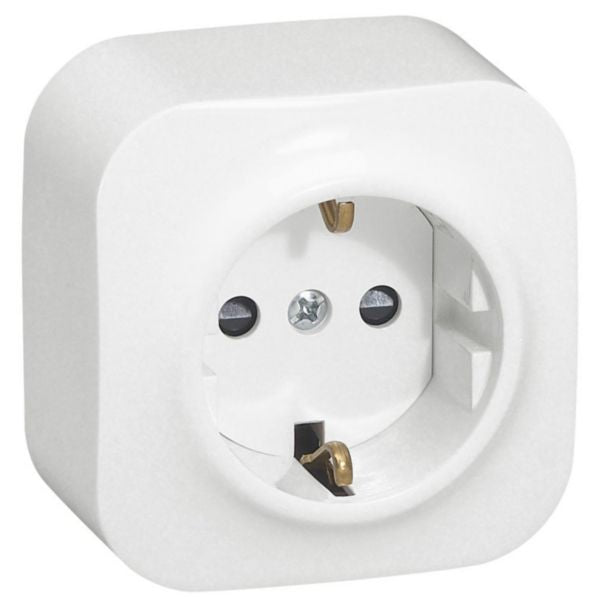

Shop Legrand Forix German Standard Socket 2P+E with Shutters IP2X 16A White | 782420 In Iraq Best Prices
Premium German standard socket outlet with child safety shutters, 16A 250V~, surface-mounted, halogen-free thermoplastic construction, complete with rocker and cover plate
The Forix German standard socket outlet is a premium surface-mounted electrical device designed for residential and commercial applications. This 2P+E socket outlet features protective contact type CEE 7/3 (type F) and is rated for 16A at 250V~ with 50-60 Hz frequency compatibility. The socket incorporates enhanced contact protection with integrated child safety shutters (IP2X) to prevent accidental contact with live parts. Manufactured by Legrand, this product meets IEC standards and is constructed from high-quality thermoplastic material that is halogen-free for environmental safety.
The Forix socket outlet features a sleek white glossy finish (RAL 9003) that complements modern interior designs. It is supplied as a complete mechanism with rocker and cover plate, ready for installation. The device supports a loop-through function, allowing for daisy-chain installation in multi-outlet configurations. With screw terminals accommodating flexible or rigid cables of 2.5mm² cross-section, installation is straightforward and secure. The socket maintains operational performance across a wide temperature range of -25°C to +60°C, making it suitable for various climatic conditions.
This surface-mounted socket outlet is ideal for kitchens, bedrooms, living rooms, and commercial spaces where reliable power distribution and child safety are priorities. The robust construction with IK04 impact strength rating ensures durability in everyday use. The product is compliant with RoHS directives and includes comprehensive technical documentation for installers and end-users.
Key Features
- German standard socket 2P+E with protective contact CEE 7/3 type F
- Enhanced child safety with IP2X protective shutters preventing accidental contact
- Surface-mounted installation with screw terminals for flexible or rigid cables
- Halogen-free thermoplastic material for environmental safety and durability
- Loop-through function enabling daisy-chain installation in multi-outlet configurations
- Wide operating temperature range -25°C to +60°C for diverse climatic conditions
- IK04 impact strength rating for robust performance in everyday use
- Complete package includes rocker and cover plate in white glossy finish
- Compliant with IEC standards and RoHS directives
- Rated for 16A at 250V~ with 50-60 Hz frequency compatibility
Technical Specifications
| Specification |
Value |
| Product Type | German Standard Socket Outlet 2P+E with Protective Contact CEE 7/3 (Type F) |
| Rated Current | 16 A |
| Rated Voltage | 250 V~ |
| Frequency | 50-60 Hz |
| Protection Degree | IP2X with enhanced contact protection and child safety shutters |
| Impact Strength Rating | IK04 |
| Installation Method | Surface mounted with screw terminals |
| Cable Compatibility | Flexible or rigid cables, 2.5-2.5 mm² cross-section |
| Material | Halogen-free thermoplastic |
| Finish | White glossy (RAL 9003) |
| Device Dimensions | Width: 65 mm, Height: 65 mm, Depth: 38.5 mm |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -25°C to +60°C |
| Number of Modules | 2 modules |
| Number of Socket Outlets | 1 |
| Active Contacts | 2 round contacts |
| Connection Type | Screwed terminal |
| Loop Through Function | Yes |
| Voltage Type | AC |
| Standards Compliance | IEC standards, RoHS compliant |
| SKU/Reference | 782420 |
| EAN Code | 3245067824207 |
| Brand | Legrand |
| Series | Forix |
