Shop Legrand Forix German Standard Socket 3x2P+E with Shutters IP2X 16A 250V Ivory | 782448 In Iraq Best Prices
Premium triple socket outlet with protective shutters, 16A/250V, IP2X safety rating, surface-mounted design in ivory finish for European standard CEE 7/3 plugs

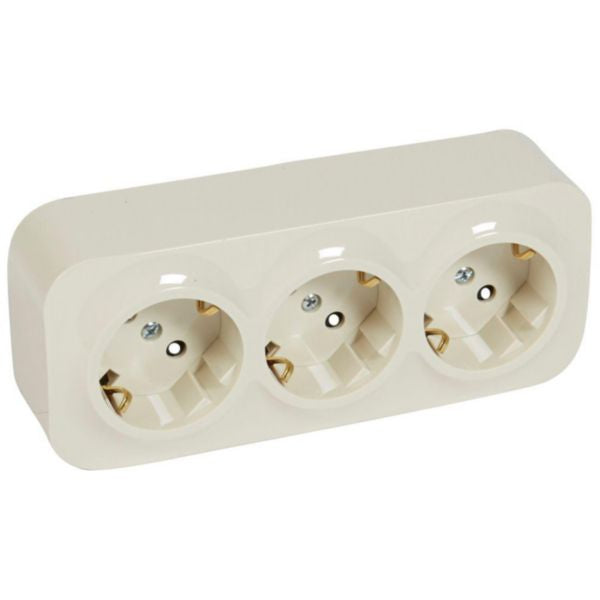

The Forix German Standard Socket 3x2P+E is a premium surface-mounted power outlet designed for modern residential and commercial applications. This triple socket outlet features protective shutters (IP2X rating) to prevent accidental contact with live conductors, ensuring enhanced safety for households and workplaces. With a nominal current rating of 16A and voltage of 250V~, it accommodates standard CEE 7/3 (Type F) plugs commonly used in European countries.
Manufactured by Legrand, a global leader in electrical and digital building infrastructure, this socket outlet combines functionality with aesthetic appeal. The ivory-colored thermoplastic housing features a glossy finish that complements contemporary interior designs. The device measures 155mm in width, 65mm in height, and 38.5mm in depth, making it suitable for various wall configurations. It operates reliably across a frequency range of 50-60 Hz and maintains performance in temperature conditions ranging from -25°C to 60°C.
The Forix socket outlet is equipped with screwed terminals for flexible or rigid cable connections (2.5-2.5 mm² cable section) and features loop-through functionality for daisy-chain installation. With its IK04 impact resistance rating and halogen-free construction, this product meets modern safety and environmental standards. The surface mounting method ensures easy installation on existing walls without requiring embedded conduits or extensive modifications.
Key Features
- Triple socket outlet with 3 x 2P+E configuration for simultaneous connection of multiple devices
- Protective shutters with IP2X rating prevent accidental contact with live conductors and ensure enhanced safety
- Surface-mounted design for easy installation on existing walls without embedded conduits
- Loop-through functionality allows daisy-chain installation for flexible electrical configurations
- Halogen-free thermoplastic housing meets modern environmental and safety standards
- Screwed terminal connections support flexible or rigid cables (2.5-2.5 mm² section)
- IK04 impact resistance rating provides durability in high-traffic areas
- Wide operating temperature range (-25°C to 60°C) ensures reliable performance in various climates
- Glossy ivory finish complements contemporary interior designs and décor
- Compatible with standard CEE 7/3 (Type F) European plugs
Technical Specifications
| Specification |
Value |
| Product Type | Surface-mounted socket outlet with protective contact |
| Model | CEE 7/3 (Type F) socket outlet with protective contact |
| Number of Socket Outlets | 3 (Triple configuration) |
| Contact Configuration | 2P+E (2 poles + earth/protective contact) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V~ |
| Frequency Range | 50-60 Hz |
| Degree of Protection (IP Rating) | IP21 (with enhanced contact protection/shutters) |
| Impact Resistance (IK Rating) | IK04 |
| Color | Ivory (Beige) |
| RAL Color Number | RAL 1013 (similar) |
| Surface Finish | Glossy |
| Material | Thermoplastic (halogen-free) |
| Mounting Method | Surface mounted |
| Fastening Type | Mounting with screw |
| Device Width | 155 mm |
| Device Height | 65 mm |
| Device Depth | 38.5 mm |
| Connection Type | Screwed terminal |
| Cable Section | 2.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -25°C to +60°C |
| Voltage Type | AC (Alternating Current) |
| Special Features | Protective shutters, loop-through function, enhanced contact protection |
| Protective Contact | Yes (CEE 7/3 Type F) |
| With Hinged Lid | No |
| With Function Lighting | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| SKU/Reference Number | 782448 |
| EAN Code | 3245067824481 |
| Manufacturer | Legrand |
| Product Range | Forix (Surface mounting) |
