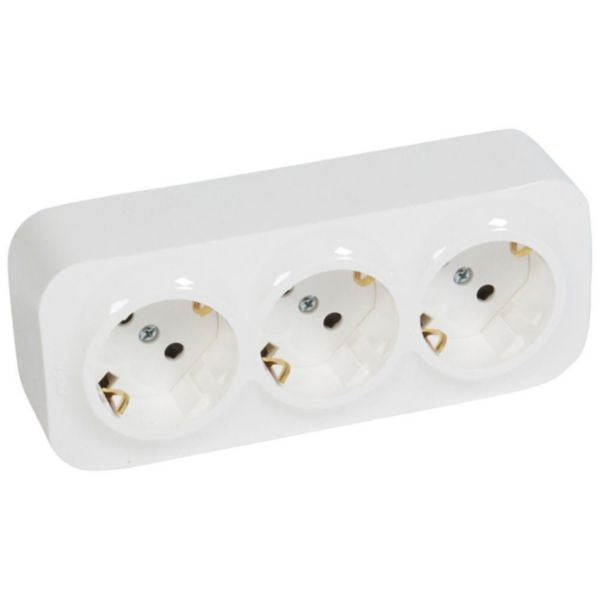

Shop Legrand Forix German Standard Socket 3x2P+E with Shutters IP2X 16A White | 782418 In Iraq Best Prices
Premium surface-mounted German standard triple socket with enhanced safety shutters, IP2X protection, 16A 250V rating, and halogen-free thermoplastic construction for safe and reliable power distribution.
The Forix German Standard Socket 3x2P+E is a premium surface-mounted power outlet designed for modern residential and commercial applications. This high-quality socket features three CEE 7/3 (Type F) German standard outlets, each rated for 16A at 250V AC, providing reliable power distribution for multiple devices simultaneously. The socket incorporates enhanced contact protection with integrated safety shutters (IP2X rating) that prevent accidental contact with live parts, making it ideal for households with children and safety-conscious installations.
This versatile outlet is constructed from durable thermoplastic material in a sleek white finish (RAL 9003), featuring a compact design measuring 155mm wide x 65mm high x 38.5mm deep. The surface-mounted installation method allows for easy retrofitting in existing installations without requiring wall modifications. With a temperature operating range of -25°C to 60°C, this socket maintains consistent performance across various environmental conditions. The device includes screwed terminal connections compatible with both flexible and rigid cables (2.5mm² section), ensuring secure and reliable electrical connections.
Compliant with IP21 protection rating and IK04 impact strength standards, the Forix socket delivers professional-grade safety and durability. The halogen-free thermoplastic construction meets RoHS directives and environmental standards. Each outlet features loop-through functionality, allowing for daisy-chain connections in multi-outlet installations. The product comes with comprehensive technical documentation and RoHS compliance certification, backed by Legrand's commitment to quality and safety.
Key Features
- Three CEE 7/3 German standard sockets (Type F) for simultaneous multi-device power distribution
- Enhanced contact protection with integrated safety shutters (IP2X rating) preventing accidental contact with live parts
- Rated for 16A at 250V AC with 50-60Hz frequency compatibility for reliable performance
- Surface-mounted installation with screw fastening for easy retrofitting without wall modifications
- Halogen-free thermoplastic construction meeting RoHS directives and environmental standards
- Compact design (155mm x 65mm x 38.5mm) with sleek white finish (RAL 9003) for aesthetic appeal
- Loop-through functionality enabling daisy-chain connections for extended outlet installations
- Wide operating temperature range (-25°C to 60°C) ensuring consistent performance in various environments
- IK04 impact strength rating providing excellent mechanical durability and protection
- Screwed terminal connections compatible with 2.5mm² flexible or rigid cables
Technical Specifications
| Specification |
Value |
| Product Model | Socket outlet with protective contact CEE 7/3 (Type F) |
| Number of Socket Outlets | 3 |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| Degree of Protection (IP) | IP21 |
| Impact Strength (IK) | IK04 |
| Material | Thermoplastic (Halogen-free) |
| Color | White (RAL 9003) |
| Device Width | 155 mm |
| Device Height | 65 mm |
| Device Depth | 38.5 mm |
| Mounting Method | Surface mounted |
| Type of Fastening | Mounting with screw |
| Connection Type | Screwed terminal |
| Cable Section | 2.5 mm² |
| Operating Temperature Range | -25°C to 60°C |
| Storage Temperature Range | -25°C to 60°C |
| Contact Protection | Enhanced with safety shutters |
| Loop Through Function | Yes |
| RoHS Compliance | Yes |
| Reference Number | 782418 |
| EAN Code | 3245067824184 |
| Brand | Legrand |
| Product Range | Forix (Surface mounting) |
Order Legrand Forix German Standard Socket 3x2P+E with Shutters IP2X 16A White | 782418 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
