Shop Legrand Forix German Standard Socket 2P+E Surface Mounting IP2X 16A | 782411 In Iraq Best Prices
Premium Forix German standard 2P+E socket outlet with surface mounting, IP2X protection, 16A 250V AC rating, thermoplastic construction, and halogen-free design for safe and reliable power distribution in residential and commercial spaces.

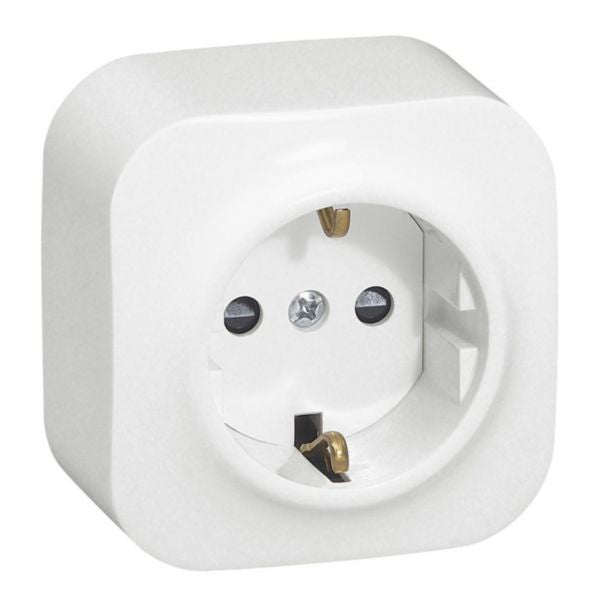

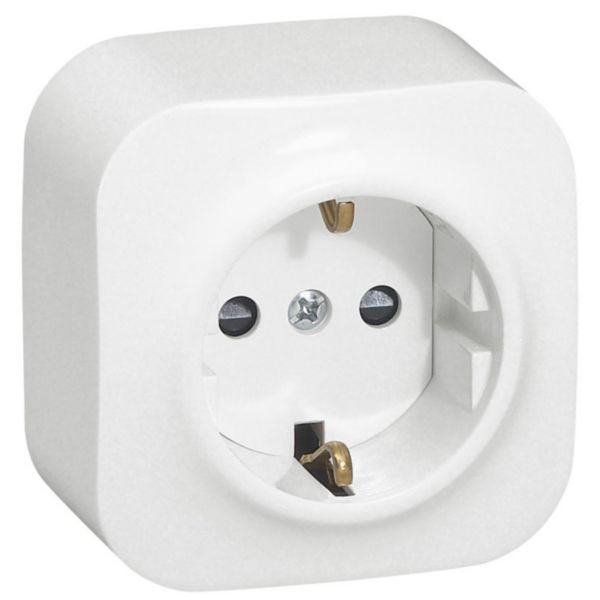

The Forix German standard socket outlet (2P+E, CEE 7/3 type F) is a premium surface-mounted electrical socket designed for residential and commercial applications. This socket outlet features IP2X protection rating and is rated for 16A at 250V AC, making it suitable for standard European electrical installations. The socket is constructed with high-quality thermoplastic material with a glossy white finish (RAL 9003), providing both durability and aesthetic appeal. It includes a protective contact system and is equipped with screw terminals for secure cable connections. The device dimensions are 65mm width x 65mm height x 38.5mm depth, allowing for compact installation on walls and surfaces.
The Forix socket outlet incorporates advanced safety features including enhanced contact protection and is halogen-free, meeting modern environmental standards and safety regulations. It supports both flexible and rigid cable connections with a cable section range of 2.5-2.5mm², ensuring compatibility with standard electrical installations. The socket operates reliably within a temperature range of -25°C to +60°C, making it suitable for various climate conditions. With its IK04 degree of impact strength, the socket provides excellent protection against accidental damage. The product is fully compliant with IEC standards and includes a complete mounting mechanism with rocker and cover plate for easy installation.
This Forix socket outlet is ideal for modern homes and offices requiring reliable power distribution. Its surface-mounting design eliminates the need for complex wall modifications, making installation quick and straightforward. The product comes with comprehensive documentation including technical sheets and installation instructions. Reference number 782411 ensures easy identification and ordering. The socket is backed by international agreements and certifications, guaranteeing quality and safety standards compliance.
Key Features
- German standard CEE 7/3 type F socket outlet with 2P+E configuration
- Surface mounting design for easy installation without wall modifications
- IP2X protection rating ensuring safety against accidental contact
- 16A 250V AC rating suitable for standard European electrical systems
- Halogen-free thermoplastic construction meeting modern environmental standards
- Screw terminal connections supporting 2.5-2.5mm² cable sections
- IK04 impact strength rating providing excellent protection against damage
- Operating temperature range of -25°C to +60°C for reliable performance
- Complete mechanism supplied with rocker and cover plate
- Compliant with IEC standards and international safety certifications
Technical Specifications
| Specification |
Value |
| Product Type | German Standard Socket Outlet |
| Model | Socket outlet with protective contact CEE 7/3 (type F) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 |
| Number of Active Contacts (Round) | 2 |
| Protection Rating (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Mounting Method | Surface mounted |
| Assembly Arrangement | Basic element with full cover plate |
| Connection Type | Screwed terminal |
| Cable Section Range | 2.5-2.5 mm² |
| Cable Type | Flexible or rigid |
| Device Width | 65 mm |
| Device Height | 65 mm |
| Device Depth | 38.5 mm |
| Material | Thermoplastic |
| Color | White |
| RAL Number (Similar) | RAL 9003 |
| Surface Finishing | Glossy |
| Halogen Free | Yes |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -25°C to +60°C |
| Voltage Type | AC |
| Type of Fastening | Mounting with screw |
| With Loop Through Function | Yes |
| Protective Contact | Other |
| Concurrently Switching Neutral Conductor | No |
| Socket Outlets Phase-Separated | No |
| With Enhanced Contact Protection | No |
| With Hinged Lid | No |
| Lockable | No |
| Reference Number | 782411 |
| EAN Code | 3245067824115 |
Order Legrand Forix German Standard Socket 2P+E Surface Mounting IP2X 16A | 782411 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
