Shop Legrand Forix French Standard Socket 2P+E Surface Mounting IP2X 16A White | 782417 In Iraq Best Prices
Premium Forix surface-mounted French standard socket with 16A/250V capacity, child protection shutters, and IP2X protection rating for safe residential and commercial electrical applications.

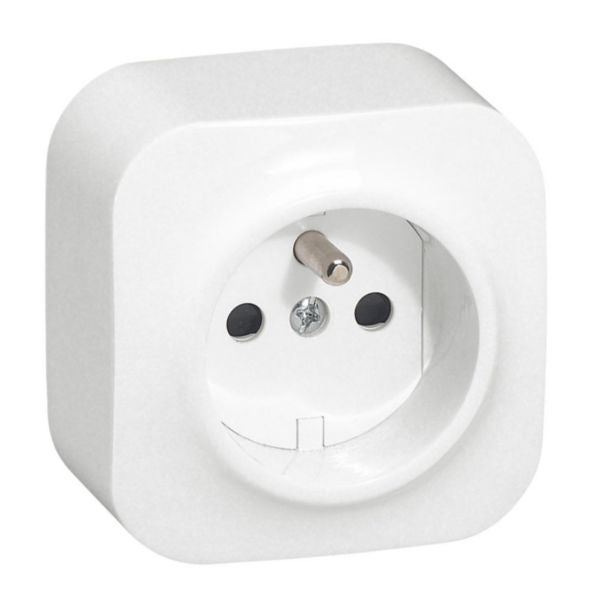

The Forix French standard socket 2P+E is a premium surface-mounted electrical outlet designed for reliable power distribution in residential and commercial applications. This high-quality socket features advanced child protection with integrated shutters, ensuring safe electrical access for families with children. Manufactured by Legrand, a global leader in electrical infrastructure, the Forix socket combines durability with modern design aesthetics.
This socket outlet is engineered to meet rigorous international standards including IEC compliance and French electrical regulations. With a nominal rating of 16A at 250V AC (50-60 Hz), it provides robust power delivery for standard household and light commercial appliances. The surface-mounting design allows for flexible installation on walls and surfaces, making it ideal for both new constructions and retrofit applications. The socket features screw terminals for secure cable connections, supporting flexible or rigid cables with a section range of 2.5-2.5 mm².
The Forix socket is constructed from high-quality thermoplastic material with a glossy white finish (RAL 9003), offering excellent durability and aesthetic appeal. It maintains an IP2X protection rating against contact with dangerous parts and includes enhanced contact protection mechanisms. The device operates reliably across a wide temperature range from -25°C to 60°C, making it suitable for diverse environmental conditions. With its compact dimensions of 65mm width, 65mm height, and 38.5mm depth, the Forix socket integrates seamlessly into any interior design while delivering dependable electrical performance.
Key Features
- French standard 2P+E socket with integrated child protection shutters for enhanced safety
- 16A 250V AC rated capacity suitable for standard household and light commercial appliances
- Surface-mounted design for flexible installation on walls and various surfaces
- IP2X protection rating with enhanced contact protection mechanisms
- Screw terminal connections supporting flexible or rigid cables (2.5mm² section)
- Thermoplastic construction with glossy white finish (RAL 9003) for durability and aesthetics
- Wide operating temperature range (-25°C to 60°C) for diverse environmental conditions
- Compact dimensions (65x65x38.5mm) for seamless interior integration
- IEC compliant and meets French electrical standards for reliability
- Halogen-free material composition for environmental safety
Technical Specifications
| Specification |
Value |
| Product Model | Forix French Standard Socket 2P+E |
| Reference Number | 782417 |
| EAN Code | 3245067824177 |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V AC |
| Frequency | 50-60 Hz |
| Socket Type | French standard 2P+E with shutters |
| Protection Rating | IP2X (IP21 suitable degree) |
| Impact Strength Rating | IK04 |
| Connection Type | Screw terminals |
| Cable Section | 2.5 mm² (flexible or rigid) |
| Material | Thermoplastic (halogen-free) |
| Finish | Glossy white (RAL 9003) |
| Mounting Method | Surface mounted with screw fastening |
| Device Width | 65 mm |
| Device Height | 65 mm |
| Device Depth | 38.5 mm |
| Operating Temperature Range | -25°C to +60°C |
| Storage Temperature Range | -25°C to +60°C |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 |
| Earthing Pin | Round protective contact |
| Active Contacts | 2 round contacts |
| Child Protection | Yes - integrated shutters |
| Enhanced Contact Protection | Yes |
| Voltage Type | AC (Alternating Current) |
| Standards Compliance | IEC compliant, French electrical standards |
| Surface Protection | Untreated thermoplastic |
| Manufacturer | Legrand |
| Product Category | Wiring devices - Power outlets |
Order Legrand Forix French Standard Socket 2P+E Surface Mounting IP2X 16A White | 782417 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
