Shop Legrand Forix 2P+E German Standard Socket Outlet Surface Mounting 16A 250V White | 782373 In Iraq Best Prices
Premium IP44-rated German standard socket outlet with surface mounting, 16A 250V capacity, protective shutters, and halogen-free thermoplastic construction for reliable indoor and outdoor electrical connectivity.

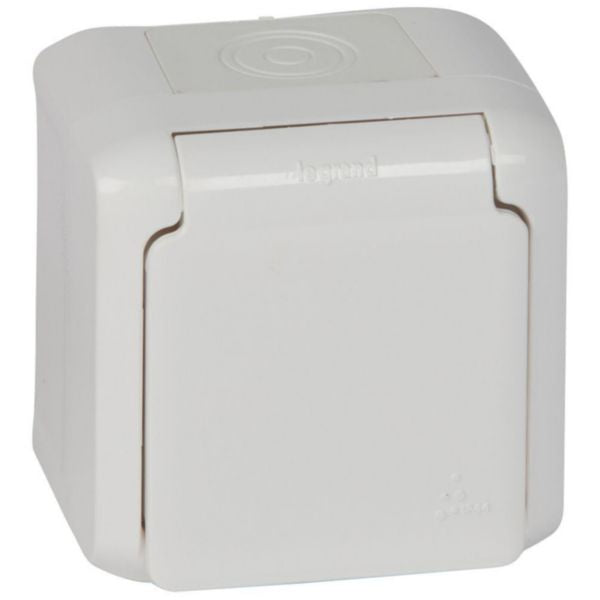

The Forix 2P+E German standard socket outlet is a premium surface-mounted electrical outlet designed for modern residential and commercial applications. This high-quality outlet features IP44 protection rating, making it suitable for both indoor and outdoor use in various environmental conditions. The socket outlet complies with IEC 60884-1 (07-2006) standards and is manufactured with thermoplastic material that is halogen-free, ensuring safety and environmental compliance.
This surface-mounting socket outlet is equipped with protective shutters and a hinged lid for enhanced contact protection. The device operates at 16A nominal current with 250V nominal voltage, supporting both 50-60 Hz frequencies. The Forix outlet features screw terminals for secure cable connections with cable sections ranging from 2.5-2.5 mm². With dimensions of 70mm width, 70mm height, and 57mm depth, this compact outlet integrates seamlessly into any installation while maintaining a professional appearance with its glossy white finish (RAL 9003).
The Forix socket outlet is designed for reliability and durability, featuring a loop-through function for convenient installation. It offers an IK07 degree of impact strength and operates reliably across temperature ranges from -25°C to 60°C. This German standard socket outlet is ideal for applications requiring robust electrical connectivity with superior protection against dust and moisture ingress, making it a trusted choice for demanding installations.
Key Features
- IP44 protection rating suitable for indoor and outdoor applications
- German standard 2P+E socket outlet with protective shutters and hinged lid
- 16A 250V nominal current and voltage with 50-60 Hz frequency support
- Surface mounting design with screw terminals for secure cable connections
- Halogen-free thermoplastic material with glossy white finish (RAL 9003)
- IK07 impact strength rating for enhanced durability
- Loop-through function for convenient daisy-chain installation
- Operating temperature range from -25°C to 60°C
- Complies with IEC 60884-1 (07-2006) standards
- Enhanced contact protection with hinged lid design
Technical Specifications
| Specification |
Value |
| Product Type | Socket outlet with protective contact CEE 7/3 (type F) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V~ |
| Frequency | 50-60 Hz |
| Protection Rating | IP44 |
| Impact Strength | IK07 |
| Mounting Method | Surface mounted |
| Connection Type | Screw terminals |
| Cable Section | 2.5-2.5 mm² |
| Material | Halogen-free thermoplastic |
| Color | White (RAL 9003) |
| Surface Finishing | Glossy |
| Device Width | 70 mm |
| Device Height | 70 mm |
| Device Depth | 57 mm |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -25°C to 60°C |
| Number of Modules | 2 |
| Hinged Lid | Yes |
| Enhanced Contact Protection | Yes |
| Loop Through Function | Yes |
| Standards Compliance | IEC 60884-1 (07-2006) |
| Reference Number | 782373 |
| EAN | 3245067823736 |
