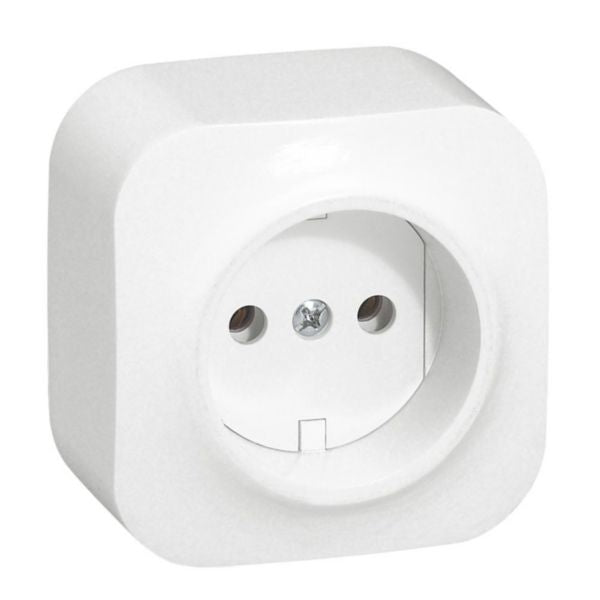

Shop Legrand Forix 2P Socket Outlet Surface Mounting IP2X 16A 250V White | 782410 In Iraq Best Prices

Professional surface-mounted 2P socket outlet with 16A/250V capacity, IP2X protection, and white glossy finish for reliable residential and commercial power distribution

The Forix 2P socket outlet is a professional-grade surface mounting electrical socket designed to meet IEC standards for residential and commercial applications. This white finish outlet features a 2-pole configuration without shutters, providing reliable power distribution at 16A and 250V AC. The socket is equipped with screw terminals for secure cable connections and is housed in a durable thermoplastic enclosure with a glossy finish. The Forix range combines modern design with practical functionality, offering complete mechanisms supplied with rocker and cover plate for easy installation. With IP2X protection rating and IK04 impact strength, this outlet is suitable for standard indoor environments. The device dimensions of 65mm x 65mm x 38.5mm make it compatible with standard wall mounting installations. Operating across 50-60Hz frequencies, this socket outlet supports flexible or rigid cables with cross-sections of 2.5mm², ensuring versatile installation options.

Key Features

2-pole socket outlet without shutters for direct power access
16A 250V AC rated capacity with 50-60Hz frequency compatibility
IP2X protection rating with IK04 impact strength for standard indoor use
Surface mounting design with screw terminals for secure cable connections
Complete assembly with rocker and cover plate included
Thermoplastic housing with glossy white finish RAL 9003
Loop through function for daisy-chain installation capability
Flexible or rigid cable support with 2.5mm² cross-section capacity
Compact dimensions 65x65x38.5mm for standard wall compatibility
Halogen-free material construction for environmental safety

Technical Specifications

Specification	Value
Product Type	2P Socket Outlet (CEE 7/1 unearthed)
Mounting Method	Surface mounted with screw fastening
Rated Current	16 A
Rated Voltage	250 V AC
Frequency	50-60 Hz
Protection Rating	IP2X
Impact Strength	IK04
Number of Poles	2 active contacts (round)
Number of Modules	2 module system
Connection Type	Screwed terminal
Cable Section	2.5-2.5 mm²
Cable Type	Flexible or rigid
Device Width	65 mm
Device Height	65 mm
Device Depth	38.5 mm
Material	Thermoplastic (halogen-free)
Surface Finish	Glossy white (RAL 9003)
Colour	White
Protective Contact	None
Operating Temperature	-25 to +60 °C
Storage Temperature	-25 to +60 °C
Shutters	Without shutters
With Hinged Lid	No
With Enhanced Contact Protection	No
Lockable	No
Loop Through Function	Yes
Overvoltage Protection	No
Fault Current Protection	No
Reference Number	782410
EAN Code	3245067824108

Order Legrand Forix 2P Socket Outlet Surface Mounting IP2X 16A 250V White | 782410 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
