Description

Shop Legrand Forix 2P Socket Outlet Surface Mounting IP2X 16A 250V Ivory | 782440 In Iraq Best Prices

Premium Forix 2P surface-mounted socket outlet with 16A 250V capacity, IP2X protection, and ivory glossy finish. Compliant with IEC standards, featuring screw terminals and complete installation accessories.

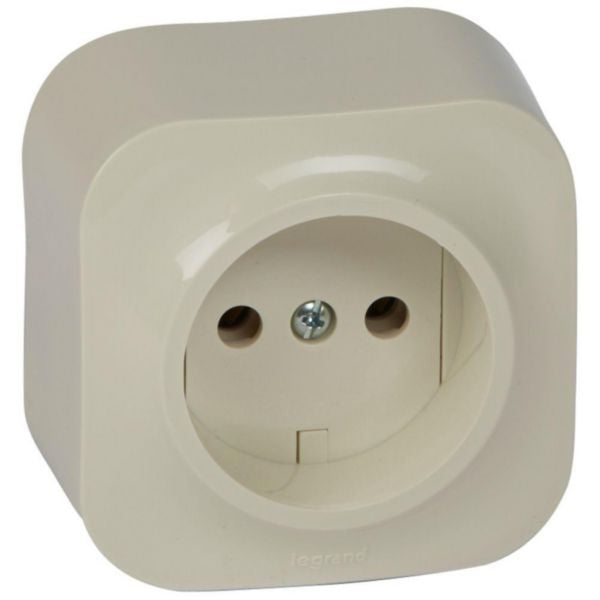

The Forix 2P socket outlet is a premium surface-mounted electrical outlet designed for modern residential and commercial installations. This device features a robust thermoplastic construction with a glossy ivory finish (RAL 1013), providing both aesthetic appeal and durability. The outlet conforms to IEC standards and offers complete mechanisms supplied with rocker and cover plate, ensuring professional-grade installation and operation. This 16A 250V~ socket outlet is engineered with screw terminals (IP2X protection) and is suitable for degree of protection IP20 and impact strength IK04. The device dimensions of 65mm width x 65mm height x 38.5mm depth make it compatible with standard wall installations. The outlet features a 2-module system assembly arrangement with basic element and full cover plate, providing a sleek and integrated appearance. The Forix socket outlet is halogen-free and designed for safe operation across a wide temperature range (-25°C to +60°C). It supports flexible or rigid cable connections with a 2.5mm² cable section, making it versatile for various installation scenarios. The product includes loop-through functionality and is manufactured to the highest quality standards, backed by comprehensive technical documentation and compliance certifications including RoHS compliance.

Key Features

Surface-mounted installation with professional-grade design and ivory glossy finish
16A 250V~ capacity with CEE 7/1 unearthed socket configuration
IP2X screw terminals with enhanced safety and secure connections
Halogen-free thermoplastic construction for environmental safety
Complete mechanisms supplied with rocker and full cover plate included
IP20 degree of protection and IK04 impact strength rating
Wide operating temperature range from -25°C to +60°C
Loop-through functionality for flexible installation configurations

Technical Specifications

Specification	Value
Product Type	2P Socket Outlet (Unearthed)
Nominal Current	16 A
Nominal Voltage	250 V~
Frequency	50-60 Hz
Socket Configuration	CEE 7/1 unearthed with 2 round active contacts
Mounting Method	Surface mounted with screw fastening
Connection Type	Screw terminals IP2X
Cable Section	2.5-2.5 mm²
Cable Type	Flexible or rigid
Degree of Protection	IP20
Impact Strength	IK04
Device Dimensions	Width: 65 mm, Height: 65 mm, Depth: 38.5 mm
Material	Thermoplastic (Halogen-free)
Color	Ivory (RAL 1013) with glossy finish
Surface Finishing	Glossy
Assembly Arrangement	Basic element with full cover plate (2 modules)
Operating Temperature Range	-25°C to +60°C
Storage Temperature Range	-25°C to +60°C
Number of Socket Outlets	1
Special Features	Loop-through functionality, no shutters, without luminous signal
Standards Compliance	IEC standards, RoHS compliant
Reference Number	782440
EAN Code	3245067824405
Brand	LEGRAND
Series	Forix (Surface mounting)

Order Legrand Forix 2P Socket Outlet Surface Mounting IP2X 16A 250V Ivory | 782440 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
