Description

The Fluke i5S AC Current Clamp is designed to extend the capabilities of your Fluke 430 series power quality analyzer or ScopeMeter test tool. Specially configured for precise low-current measurements, it is ideal for assessing secondary current transformers.

Key Features:

  • Low-Level Current Measurement: Accurately measures AC currents up to 5 A, with a continuous range from 10 mA to 6 A.
  • Compact Design: Its small dimensions (116 x 43 x 23 mm) make it easy to transport and store.
  • Non-Intrusive Testing: Allows for accurate readings without the need to break the circuit.
  • Safety Rated: CAT III 600 V, suitable for use on insulated conductors only.

Specifications:

Specification Details
Nominal Current Range 5 A
Continuous Current Range 10 mA to 6 A
Maximum Non-Destructive Current 70 A
Lowest Measurable Current 10 mA
Basic Accuracy (48 Hz to 65 Hz) 10 mA to 1 A: 1% + 5 mA; 1 A to 5 A: 1%
Usable Frequency 40 Hz to 5 kHz
Output Level 400 mV/A
Input Load Impedance > 1 MΩ in parallel with up to 47 pF
Crest Factor ≤ 3, add 0.7% to accuracy
Safety CAT III 600 V per IEC/EN61010-1, Pollution Degree 2
Maximum Voltage 600 V AC
Maximum Conductor Diameter 15 mm
Output Cable Length 2.5 m
Dimensions 116 x 43 x 23 mm
Weight 200 g



Read more

Product form

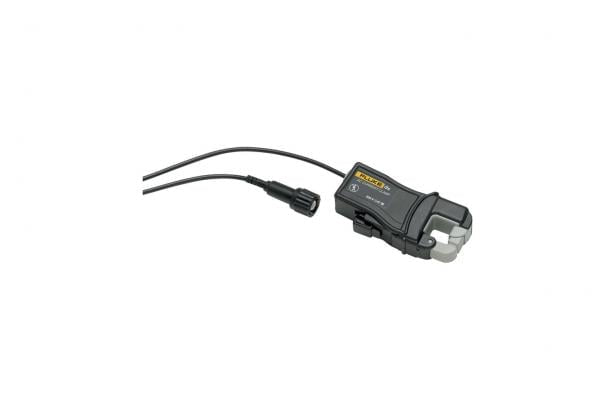

Fluke i5S AC Current Clamp

Fluke

Low-level AC current clamp measuring up to 5 A, ideal for accurate measurements on secondary current transformers. Read more

    SKU: 2508467

          Low-level AC current clamp measuring up to 5 A, ideal for accurate measurements on secondary current transformers.

          Description

          The Fluke i5S AC Current Clamp is designed to extend the capabilities of your Fluke 430 series power quality analyzer or ScopeMeter test tool. Specially configured for precise low-current measurements, it is ideal for assessing secondary current transformers.

          Key Features:

          • Low-Level Current Measurement: Accurately measures AC currents up to 5 A, with a continuous range from 10 mA to 6 A.
          • Compact Design: Its small dimensions (116 x 43 x 23 mm) make it easy to transport and store.
          • Non-Intrusive Testing: Allows for accurate readings without the need to break the circuit.
          • Safety Rated: CAT III 600 V, suitable for use on insulated conductors only.

          Specifications:

          Specification Details
          Nominal Current Range 5 A
          Continuous Current Range 10 mA to 6 A
          Maximum Non-Destructive Current 70 A
          Lowest Measurable Current 10 mA
          Basic Accuracy (48 Hz to 65 Hz) 10 mA to 1 A: 1% + 5 mA; 1 A to 5 A: 1%
          Usable Frequency 40 Hz to 5 kHz
          Output Level 400 mV/A
          Input Load Impedance > 1 MΩ in parallel with up to 47 pF
          Crest Factor ≤ 3, add 0.7% to accuracy
          Safety CAT III 600 V per IEC/EN61010-1, Pollution Degree 2
          Maximum Voltage 600 V AC
          Maximum Conductor Diameter 15 mm
          Output Cable Length 2.5 m
          Dimensions 116 x 43 x 23 mm
          Weight 200 g



          Read more
