Description

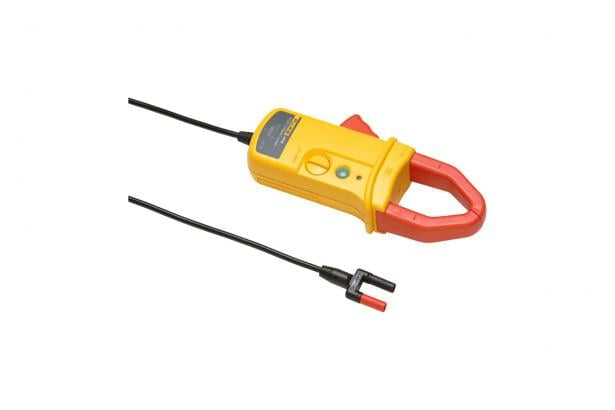

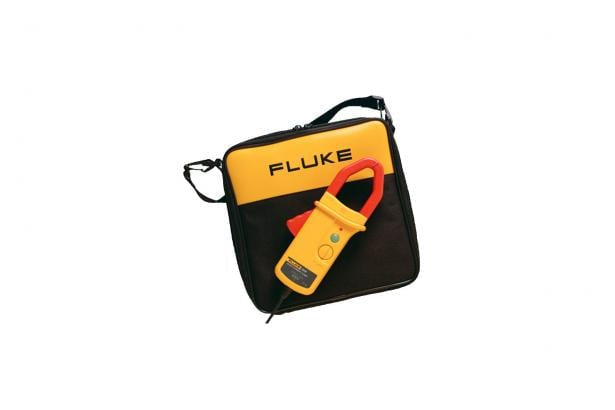

The Fluke i410 AC/DC Current Clamp is engineered to extend the measurement capabilities of digital multimeters, enabling precise current readings without interrupting the circuit. It utilizes a Hall-effect sensor powered by a 9V battery to measure currents ranging from 1A to 400A AC/DC. The clamp provides an output of 1mV per amp, ensuring straightforward interpretation of readings on the connected multimeter. Its design includes a maximum conductor diameter of 32 mm, accommodating a variety of conductor sizes. The i410 is rated for CAT III 600V environments, ensuring safety during use in industrial settings. Additionally, the i410-KIT variant offers a convenient carrying case for the clamp and multimeter, providing extra storage for test leads, probes, and manuals.

Specification :

Specification Details
Measurement Range 1A to 400A AC/DC
Output Sensitivity 1mV per amp
Accuracy ±3.5% ±0.5A (45-400 Hz)
Frequency Range DC to 3 kHz
Maximum Conductor Size 32 mm diameter
Safety Rating CAT III 600V
Power Supply 9V Alkaline battery
Battery Life Approximately 60 hours continuous use
Dimensions 209 x 78 x 48 mm
Weight 500 g

Read more

Product form

Fluke i410 AC/DC Current Clamp

Fluke

The Fluke i410 expands your DMM's functionality, measuring AC/DC currents up to 400A with a 1mV/A output, featuring a large jaw for easy conductor access. Read more

    SKU: 617727

          The Fluke i410 expands your DMM's functionality, measuring AC/DC currents up to 400A with a 1mV/A output, featuring a large jaw for easy conductor access.

          Description

          The Fluke i410 AC/DC Current Clamp is engineered to extend the measurement capabilities of digital multimeters, enabling precise current readings without interrupting the circuit. It utilizes a Hall-effect sensor powered by a 9V battery to measure currents ranging from 1A to 400A AC/DC. The clamp provides an output of 1mV per amp, ensuring straightforward interpretation of readings on the connected multimeter. Its design includes a maximum conductor diameter of 32 mm, accommodating a variety of conductor sizes. The i410 is rated for CAT III 600V environments, ensuring safety during use in industrial settings. Additionally, the i410-KIT variant offers a convenient carrying case for the clamp and multimeter, providing extra storage for test leads, probes, and manuals.

          Specification :

          Specification Details
          Measurement Range 1A to 400A AC/DC
          Output Sensitivity 1mV per amp
          Accuracy ±3.5% ±0.5A (45-400 Hz)
          Frequency Range DC to 3 kHz
          Maximum Conductor Size 32 mm diameter
          Safety Rating CAT III 600V
          Power Supply 9V Alkaline battery
          Battery Life Approximately 60 hours continuous use
          Dimensions 209 x 78 x 48 mm
          Weight 500 g

          Read more
