Description

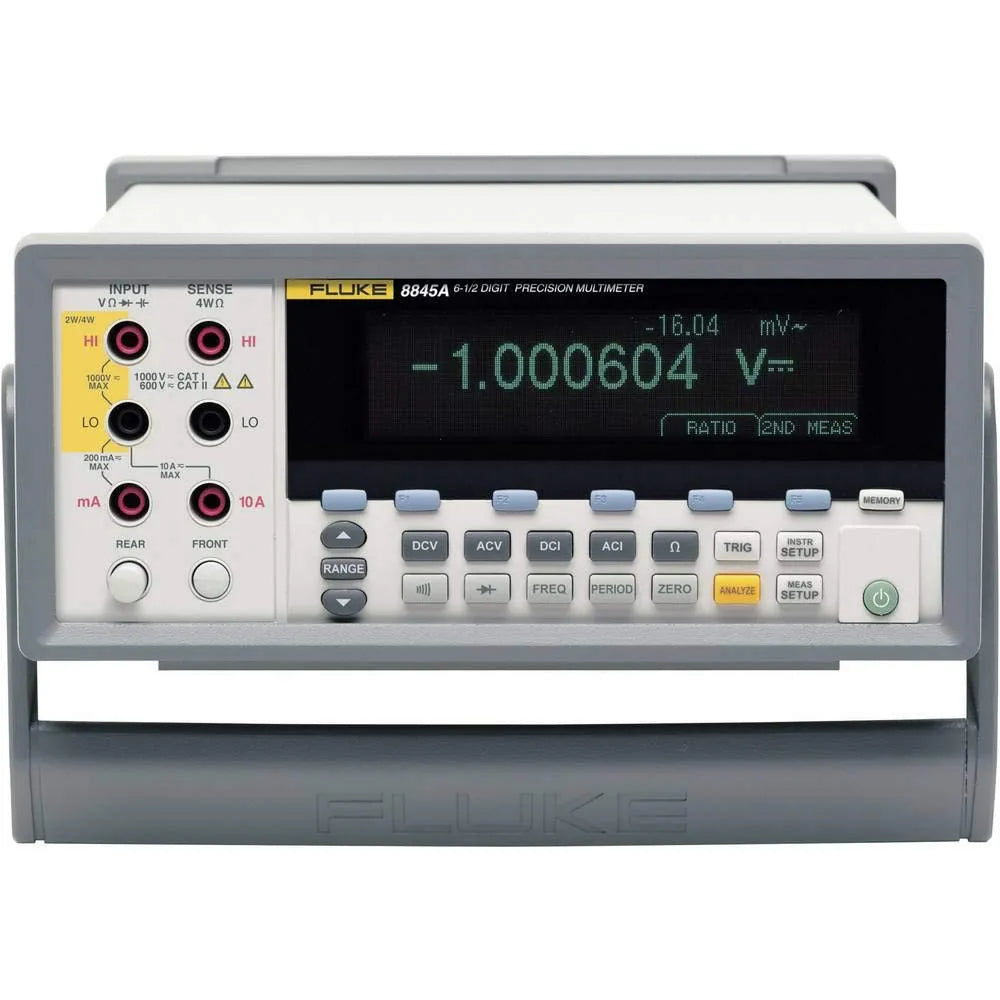

The Fluke 8845A is a high-precision 6.5-digit multimeter designed for demanding bench or system applications. It measures AC/DC voltage and current, resistance, frequency, and period with exceptional accuracy and resolution.

Fluke

Product Description:

The Fluke 8845A 6.5 Digit Precision Multimeter offers the precision and versatility required for the most demanding measurements, whether on the bench or integrated into a system. This high-performance multimeter measures volts, ohms, and amps with a basic DC voltage accuracy of up to 0.0035%. It also measures frequency and period, and includes functions of a counter and thermometer. Graphical display modes such as Trendplot™ paperless recorder mode, statistics, and histograms provide deeper insights into measurement data.

Key Features:

High Precision: 6.5-digit resolution with basic DC voltage accuracy up to 0.0035%.
Multiple Measurement Functions: Measures AC/DC voltage and current, resistance, frequency, and period.
Dual Display: Allows simultaneous measurement of two parameters from one test connection.
Graphical Analysis: Features Trendplot™, statistics, and histogram modes for data analysis.
Connectivity: Standard interfaces include RS-232, IEEE-488, and Ethernet for remote control and data transfer.
Emulation Modes: Emulates Fluke 45 and Agilent 34401A commands for easy integration into existing systems.

Specifications:

Specification	Details
Display Resolution	6.5 digits
DC Voltage Accuracy	Up to 0.0035%
Current Range	100 µA to 10 A
Resistance Range	100 Ω to 100 MΩ
Frequency Range	Up to 300 kHz
Interfaces	RS-232, IEEE-488, Ethernet
Dimensions	88 mm (H) x 217 mm (W) x 297 mm (D)
Weight	3.6 kg (8 lbs)

Fluke 6.5 Digit Precision Multimeter | 8845A

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

The Fluke 8845A is a high-precision 6.5-digit multimeter designed for demanding bench or system applications. It measures AC/DC voltage and current, resistance, frequency, and period with exceptional accuracy and resolution. Read more

SKU: 2577352

The Fluke 8845A is a high-precision 6.5-digit multimeter designed for demanding bench or system applications. It measures AC/DC voltage and current, resistance, frequency, and period with exceptional accuracy and resolution.

Description

The Fluke 8845A is a high-precision 6.5-digit multimeter designed for demanding bench or system applications. It measures AC/DC voltage and current, resistance, frequency, and period with exceptional accuracy and resolution.

Fluke

Product Description:

The Fluke 8845A 6.5 Digit Precision Multimeter offers the precision and versatility required for the most demanding measurements, whether on the bench or integrated into a system. This high-performance multimeter measures volts, ohms, and amps with a basic DC voltage accuracy of up to 0.0035%. It also measures frequency and period, and includes functions of a counter and thermometer. Graphical display modes such as Trendplot™ paperless recorder mode, statistics, and histograms provide deeper insights into measurement data.

Key Features:

High Precision: 6.5-digit resolution with basic DC voltage accuracy up to 0.0035%.
Multiple Measurement Functions: Measures AC/DC voltage and current, resistance, frequency, and period.
Dual Display: Allows simultaneous measurement of two parameters from one test connection.
Graphical Analysis: Features Trendplot™, statistics, and histogram modes for data analysis.
Connectivity: Standard interfaces include RS-232, IEEE-488, and Ethernet for remote control and data transfer.
Emulation Modes: Emulates Fluke 45 and Agilent 34401A commands for easy integration into existing systems.

Specifications:

Specification	Details
Display Resolution	6.5 digits
DC Voltage Accuracy	Up to 0.0035%
Current Range	100 µA to 10 A
Resistance Range	100 Ω to 100 MΩ
Frequency Range	Up to 300 kHz
Interfaces	RS-232, IEEE-488, Ethernet
Dimensions	88 mm (H) x 217 mm (W) x 297 mm (D)
Weight	3.6 kg (8 lbs)
