Description

The Fluke 787B ProcessMeter™ enhances your troubleshooting capabilities by integrating the functionalities of a safety-rated digital multimeter and a mA loop calibrator into one compact device. Building upon the trusted measurement features of the Fluke 87V, the 787B allows for precise measurement, sourcing, and simulation of mA currents, making it an ideal tool for diagnosing and calibrating current loop applications. With compatibility for the Fluke Connect® mobile app and desktop software, technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere.*

Specifications:

Specification	Details
DC Voltage Measurement	Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V Accuracy: ±0.1% + 1 digit
AC Voltage Measurement	Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V Accuracy: ±0.7% + 2 digits (True-RMS)
DC Current Measurement	Range: 0 to 1 A Accuracy: ±0.2% + 2 digits
AC Current Measurement	Range: 0 to 1 A Accuracy: ±1% + 2 digits (True-RMS)
Resistance Measurement	Ranges: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ Accuracy: ±0.2% + 1 digit (up to 4 MΩ); ±1% + 2 digits (40 MΩ)
Frequency Measurement	Range: 0 to 20 kHz Accuracy: ±0.005% + 1 digit
Loop Current Source/Simulate	Range: 0 to 20.000 mA or 4 to 20.000 mA Accuracy: ±0.05% + 2 counts
Display	4,000 counts (30,000 counts for DC current)
Safety Rating	CAT IV 600 V / CAT III 1000 V
Power Supply	Four AA alkaline batteries
Battery Life	Approximately 140 hours (measurement mode); 10 hours (sourcing 12 mA)
Dimensions	203 mm x 100 mm x 50 mm
Weight	600 g

Features:

Combines a 1000 V, True-RMS digital multimeter with a mA loop calibrator.
Allows measurement, sourcing, and simulation of mA currents.
Features manual step (100%, 25%, coarse, fine) plus auto step and auto ramp.
Equipped with a clear LCD with backlight for easy reading.
Designed to meet 1000 V IEC 61010 CAT III and 600 V CAT IV safety standards.
Compatible with Fluke Connect® for wireless data logging (requires IR3000FC module, not included).

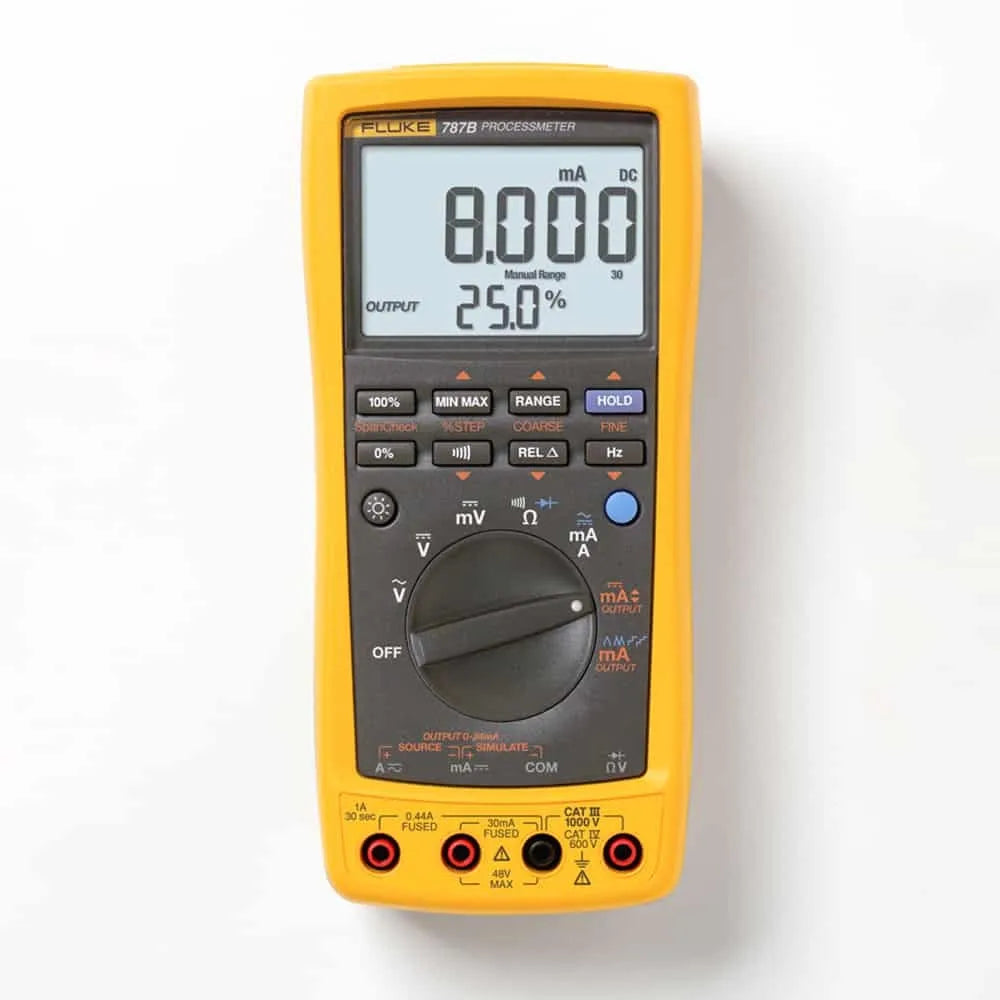

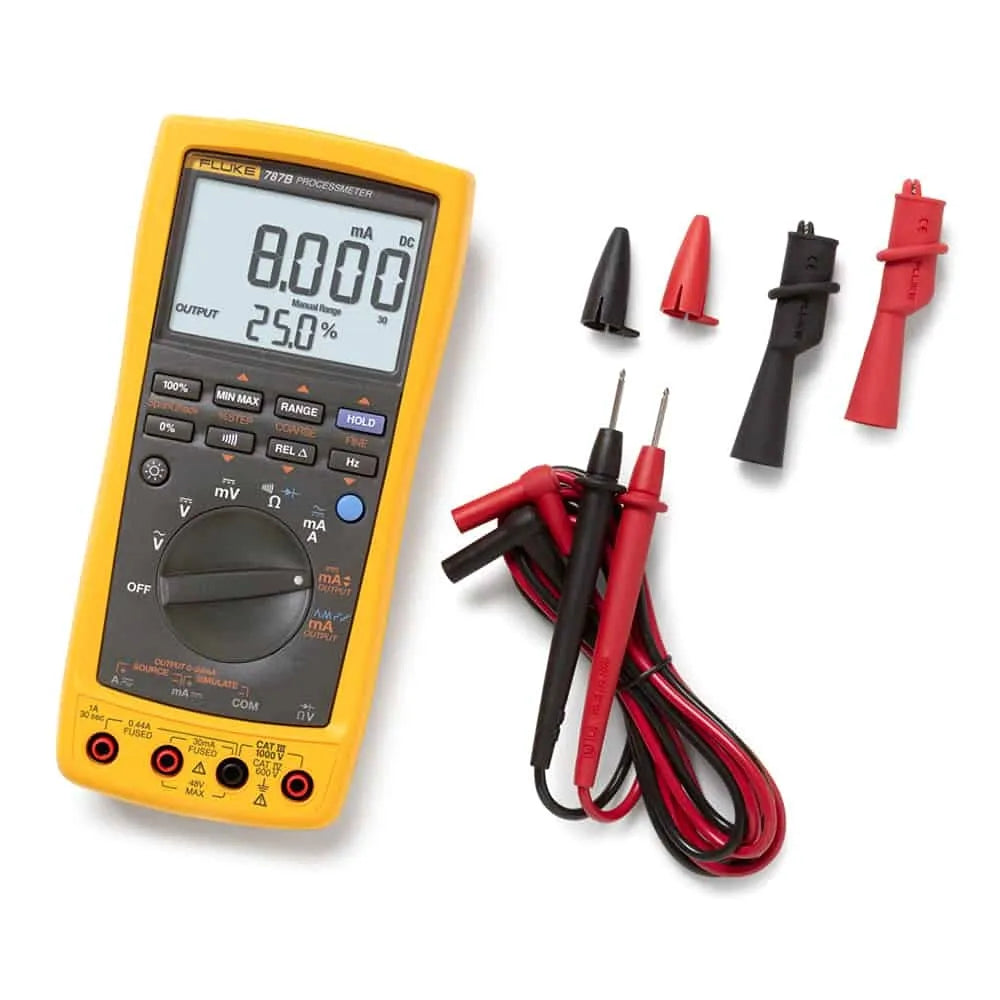

Fluke 787B ProcessMeter™

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Combines a digital multimeter and mA loop calibrator into a single, compact tool for efficient troubleshooting and calibration. Read more

SKU: 4777186

Combines a digital multimeter and mA loop calibrator into a single, compact tool for efficient troubleshooting and calibration.

The Fluke 787B ProcessMeter™ enhances your troubleshooting capabilities by integrating the functionalities of a safety-rated digital multimeter and a mA loop calibrator into one compact device. Building upon the trusted measurement features of the Fluke 87V, the 787B allows for precise measurement, sourcing, and simulation of mA currents, making it an ideal tool for diagnosing and calibrating current loop applications. With compatibility for the Fluke Connect® mobile app and desktop software, technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere.*

Specifications:

Specification	Details
DC Voltage Measurement	Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V Accuracy: ±0.1% + 1 digit
AC Voltage Measurement	Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V Accuracy: ±0.7% + 2 digits (True-RMS)
DC Current Measurement	Range: 0 to 1 A Accuracy: ±0.2% + 2 digits
AC Current Measurement	Range: 0 to 1 A Accuracy: ±1% + 2 digits (True-RMS)
Resistance Measurement	Ranges: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ Accuracy: ±0.2% + 1 digit (up to 4 MΩ); ±1% + 2 digits (40 MΩ)
Frequency Measurement	Range: 0 to 20 kHz Accuracy: ±0.005% + 1 digit
Loop Current Source/Simulate	Range: 0 to 20.000 mA or 4 to 20.000 mA Accuracy: ±0.05% + 2 counts
Display	4,000 counts (30,000 counts for DC current)
Safety Rating	CAT IV 600 V / CAT III 1000 V
Power Supply	Four AA alkaline batteries
Battery Life	Approximately 140 hours (measurement mode); 10 hours (sourcing 12 mA)
Dimensions	203 mm x 100 mm x 50 mm
Weight	600 g

Features:

Combines a 1000 V, True-RMS digital multimeter with a mA loop calibrator.
Allows measurement, sourcing, and simulation of mA currents.
Features manual step (100%, 25%, coarse, fine) plus auto step and auto ramp.
Equipped with a clear LCD with backlight for easy reading.
Designed to meet 1000 V IEC 61010 CAT III and 600 V CAT IV safety standards.
Compatible with Fluke Connect® for wireless data logging (requires IR3000FC module, not included).

Fluke 787B ProcessMeter™
