Description

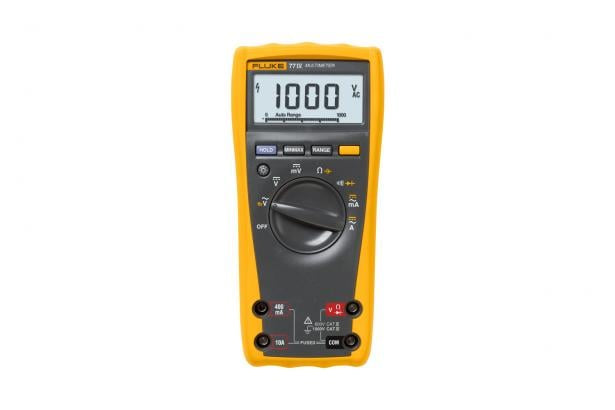

The Fluke 77 IV Digital Multimeter is designed to handle a wide range of electrical and electronic testing applications. Building upon the legacy of Fluke's original 70 Series, this multimeter offers enhanced measurement functions, adherence to updated safety standards, and a larger, more readable display. It features both auto and manual ranging capabilities, a large backlit display for use in dimly lit areas, and Min/Max recording to capture signal fluctuations. The ergonomic design includes an overmolded housing with integrated probe holders for convenience.

Specifications:

Specification Value
Voltage Range Up to 1000 V AC/DC
Current Range Up to 10 A continuous (20 A for 30 s)
Capacitance Range 1 nF to 9,999 μF
Frequency Range 0.1 Hz to 200 kHz
Resistance Range Up to 50 MΩ
Safety Rating CAT III 1000 V / CAT IV 600 V
Display Large backlit
Dimensions 185 x 90 x 43 mm
Weight Approximately 420 g
Power Source 9V battery

Read more

Product form

Fluke 77 IV Digital Multimeter

Fluke

Versatile digital multimeter with a wide 1000 V measurement range, suitable for electrical and electronic troubleshooting. Read more

    SKU: 3947835

      Versatile digital multimeter with a wide 1000 V measurement range, suitable for electrical and electronic troubleshooting.

      Description

      The Fluke 77 IV Digital Multimeter is designed to handle a wide range of electrical and electronic testing applications. Building upon the legacy of Fluke's original 70 Series, this multimeter offers enhanced measurement functions, adherence to updated safety standards, and a larger, more readable display. It features both auto and manual ranging capabilities, a large backlit display for use in dimly lit areas, and Min/Max recording to capture signal fluctuations. The ergonomic design includes an overmolded housing with integrated probe holders for convenience.

      Specifications:

      Specification Value
      Voltage Range Up to 1000 V AC/DC
      Current Range Up to 10 A continuous (20 A for 30 s)
      Capacitance Range 1 nF to 9,999 μF
      Frequency Range 0.1 Hz to 200 kHz
      Resistance Range Up to 50 MΩ
      Safety Rating CAT III 1000 V / CAT IV 600 V
      Display Large backlit
      Dimensions 185 x 90 x 43 mm
      Weight Approximately 420 g
      Power Source 9V battery
