Description

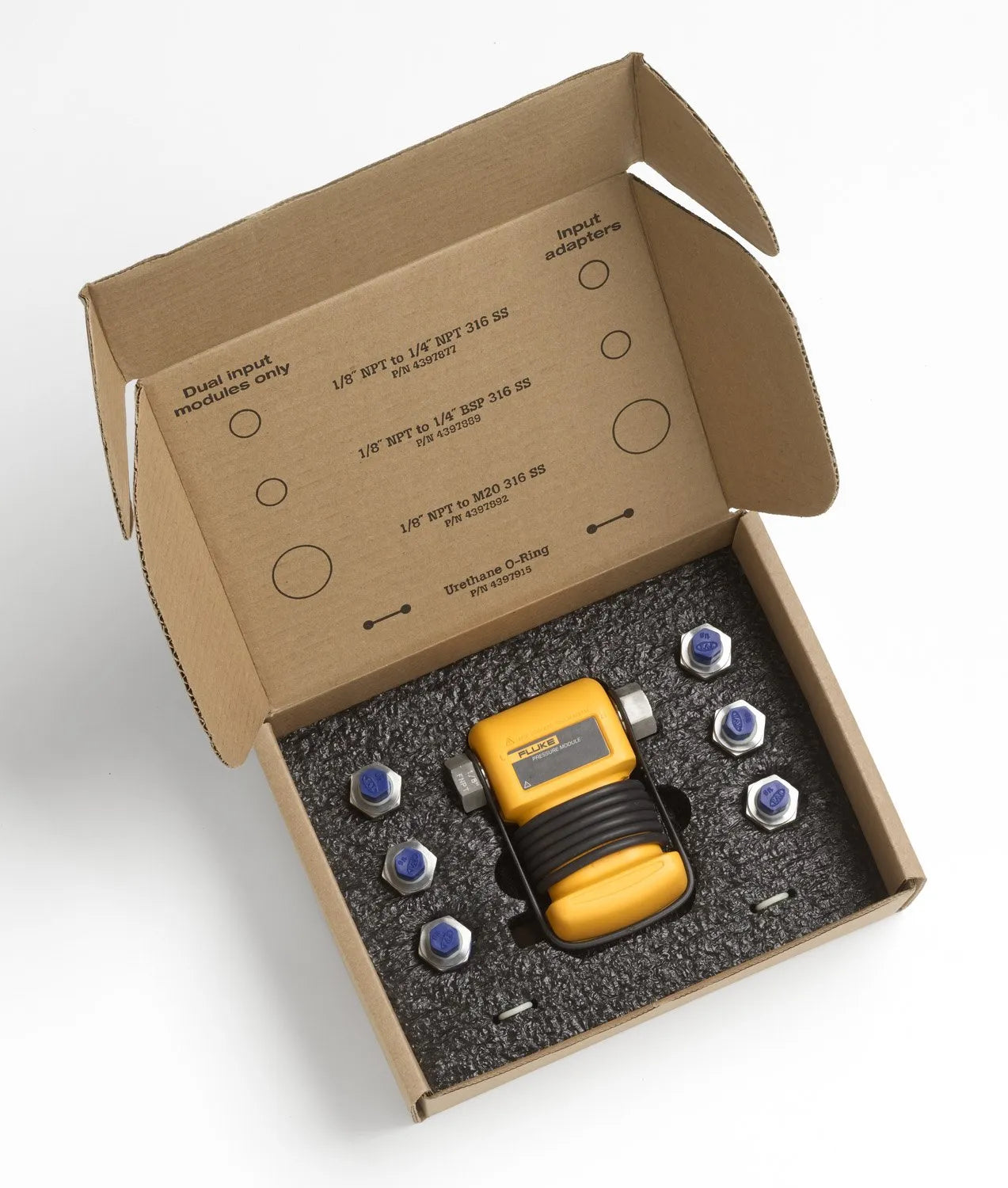

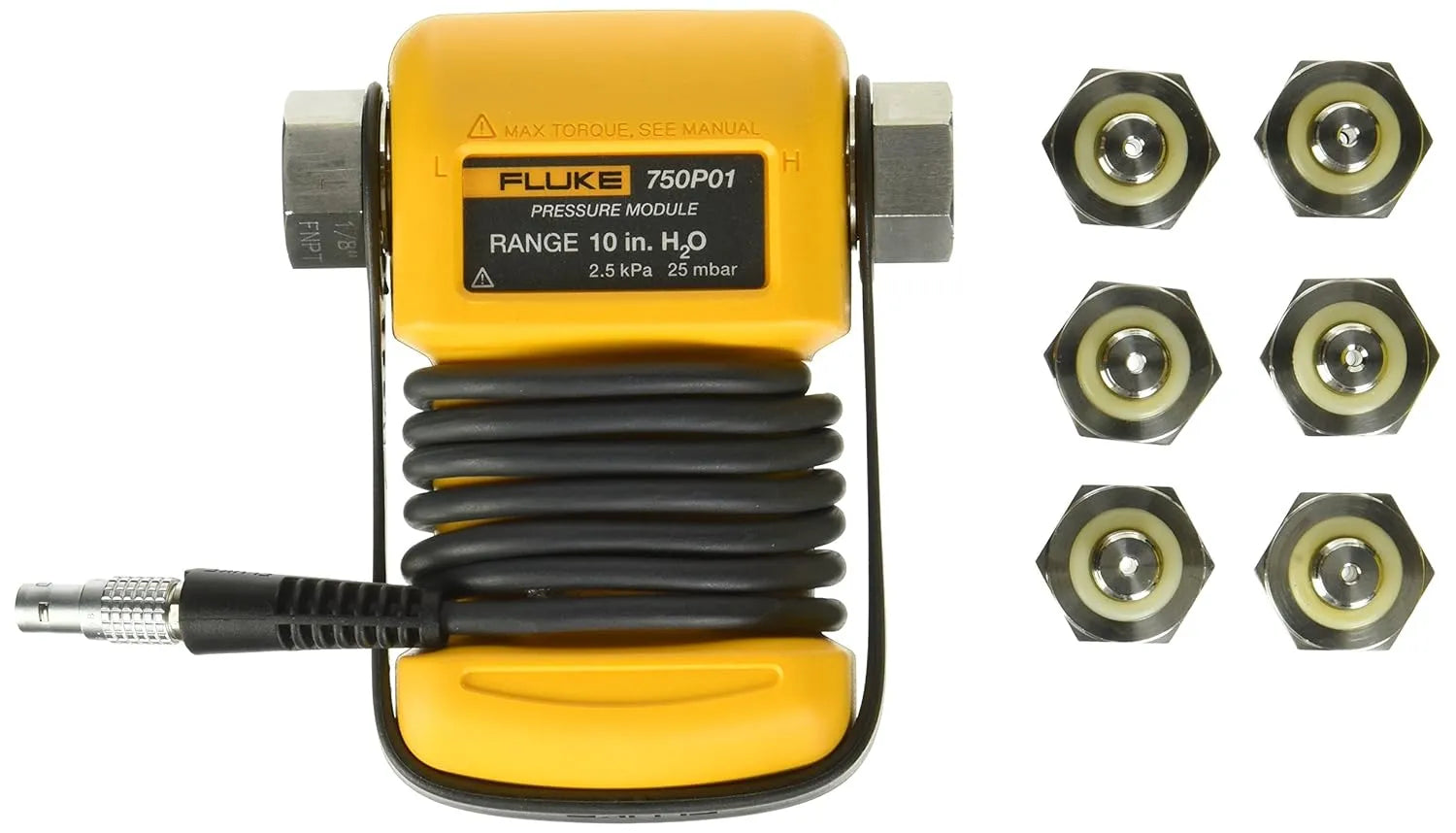

The Fluke 750P01 Pressure Module provides accurate differential pressure measurements within the range of 0 to 10 in H₂O (0 to 25 mBar). Designed for use with Fluke 750 and 740 series calibrators, it reduces measurement errors through digital data transfer. The module is temperature compensated from 0°C to 50°C, ensuring consistent performance even in varying conditions. It features a rugged design suitable for industrial environments and includes adapters and a traceable calibration certificate.

Key Features:

Measurement Range: 0 to 10 in H₂O (0 to 25 mBar)
High Accuracy: Reference uncertainty ±0.1%
Temperature Compensated: Operates effectively from 0°C to 50°C
Digital Communication: Reduces errors with direct data transfer to Fluke calibrators
Durable Design: Built to withstand harsh industrial conditions

Specifications:

Specification	Details
Range	0 to 10 in H₂O (0 to 25 mBar)
Burst Rating	3x maximum rated pressure
Hi Side Media	Dry Air
Lo Side Media	Dry Air
Reference Uncertainty	±0.1%
Total Uncertainty (1-Year)	±0.2% (15–35 °C)
Total Uncertainty (6-Month)	±0.15% (15–35 °C)
Weight	0.4 kg

Fluke Pressure Module 0 - 25 mBar | 750P01

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

High-precision differential pressure module designed for low-pressure measurements from 0 to 10 in H₂O (0 to 25 mBar), ideal for industrial calibration. Read more

SKU: 4352281

High-precision differential pressure module designed for low-pressure measurements from 0 to 10 in H₂O (0 to 25 mBar), ideal for industrial calibration.

The Fluke 750P01 Pressure Module provides accurate differential pressure measurements within the range of 0 to 10 in H₂O (0 to 25 mBar). Designed for use with Fluke 750 and 740 series calibrators, it reduces measurement errors through digital data transfer. The module is temperature compensated from 0°C to 50°C, ensuring consistent performance even in varying conditions. It features a rugged design suitable for industrial environments and includes adapters and a traceable calibration certificate.

Key Features:

Measurement Range: 0 to 10 in H₂O (0 to 25 mBar)
High Accuracy: Reference uncertainty ±0.1%
Temperature Compensated: Operates effectively from 0°C to 50°C
Digital Communication: Reduces errors with direct data transfer to Fluke calibrators
Durable Design: Built to withstand harsh industrial conditions

Specifications:

Specification	Details
Range	0 to 10 in H₂O (0 to 25 mBar)
Burst Rating	3x maximum rated pressure
Hi Side Media	Dry Air
Lo Side Media	Dry Air
Reference Uncertainty	±0.1%
Total Uncertainty (1-Year)	±0.2% (15–35 °C)
Total Uncertainty (6-Month)	±0.15% (15–35 °C)
Weight	0.4 kg
