Description

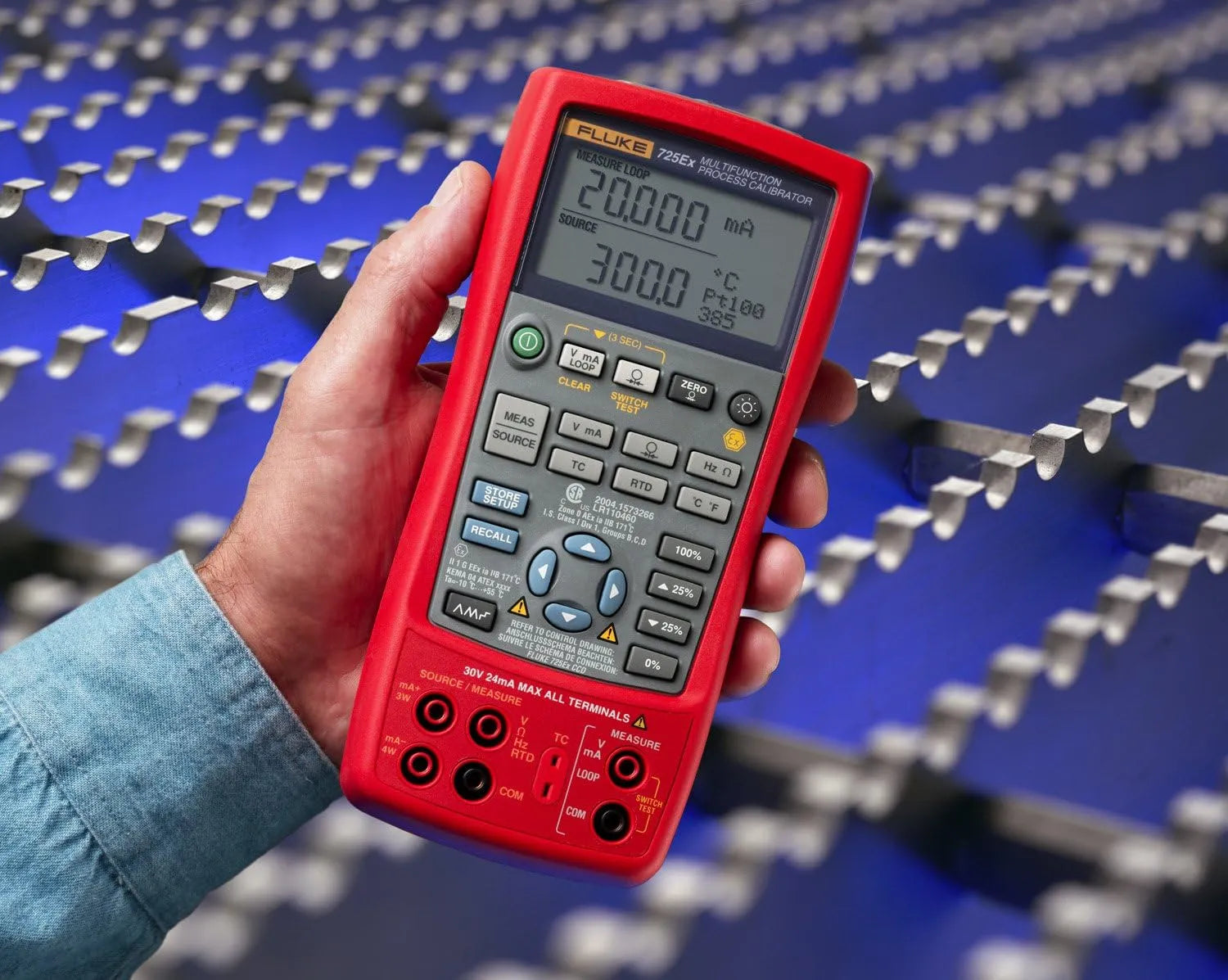

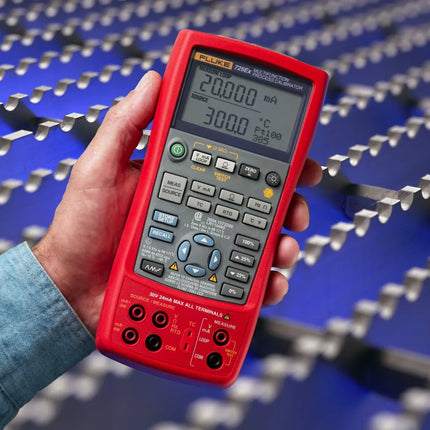

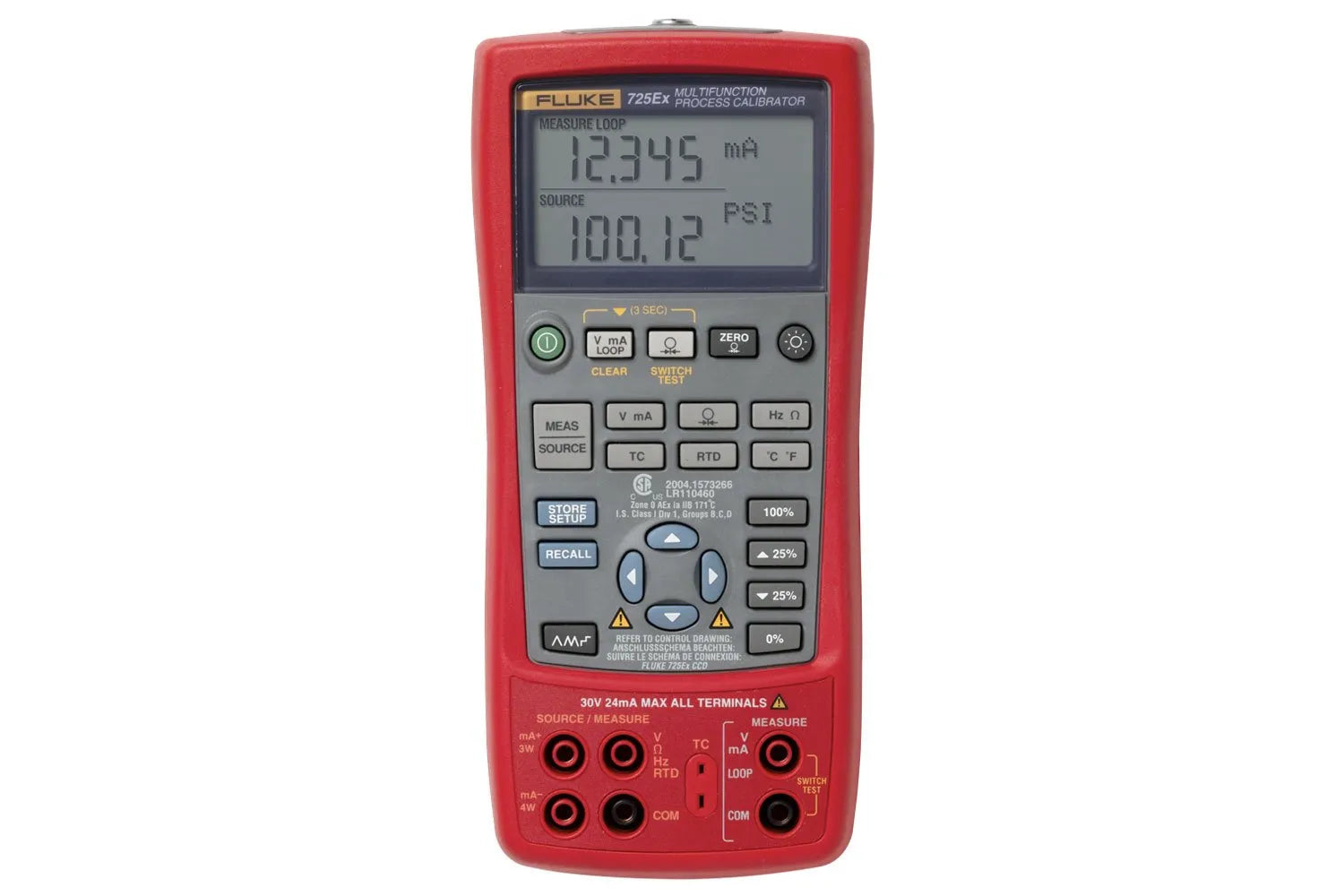

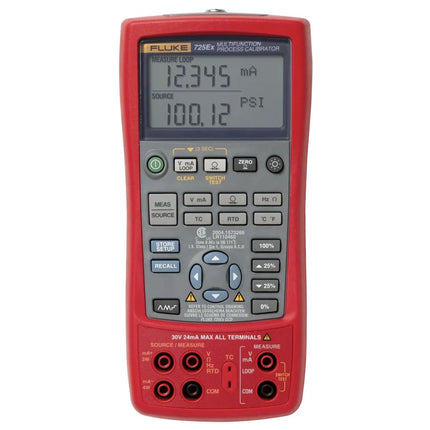

The Fluke 725Ex is a powerful and easy-to-use calibrator tailored for hazardous environments. It sources and measures mA, volts, temperature (RTDs and thermocouples), frequency, and ohms. Combined with Fluke 700PEx Pressure Modules (sold separately), it can measure pressure up to 3,000 psi (200 bar). Its rugged design and reliable performance make it a trusted tool for professionals.

Key Features:

Intrinsically safe for hazardous areas (I.S. Class I, Division 1, Groups B-D).
Sources and measures mA, volts, RTDs, thermocouples, frequency, and ohms.
Pressure measurement up to 3,000 psi with Fluke 700PEx Pressure Modules.
Dual display for simultaneous input and output values.
Auto-stepping and auto-ramping for remote testing.
Rugged and durable design for field use.

Specifications:

Specification	Details
Safety Compliance	Intrinsically Safe (I.S.) Class I, Division 1 Groups B-D
Voltage Range	Source/measure: 0-30V DC
Current Range	Source/measure: 0-24 mA
Pressure Range	Up to 3,000 psi with 700PEx Modules
Temperature Types	RTDs and thermocouples
Frequency Range	1 Hz to 10 kHz
Display Type	Dual display for input and output
Power Supply	Batteries
Weight	1.3 kg (approx.)

Fluke Intrinsically Safe Multifunction Process Calibrator | 725Ex

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

An intrinsically safe, multifunction process calibrator designed for use in hazardous environments, capable of sourcing and measuring various process parameters. Read more

SKU: 2098179

An intrinsically safe, multifunction process calibrator designed for use in hazardous environments, capable of sourcing and measuring various process parameters.

The Fluke 725Ex is a powerful and easy-to-use calibrator tailored for hazardous environments. It sources and measures mA, volts, temperature (RTDs and thermocouples), frequency, and ohms. Combined with Fluke 700PEx Pressure Modules (sold separately), it can measure pressure up to 3,000 psi (200 bar). Its rugged design and reliable performance make it a trusted tool for professionals.

Key Features:

Intrinsically safe for hazardous areas (I.S. Class I, Division 1, Groups B-D).
Sources and measures mA, volts, RTDs, thermocouples, frequency, and ohms.
Pressure measurement up to 3,000 psi with Fluke 700PEx Pressure Modules.
Dual display for simultaneous input and output values.
Auto-stepping and auto-ramping for remote testing.
Rugged and durable design for field use.

Specifications:

Specification	Details
Safety Compliance	Intrinsically Safe (I.S.) Class I, Division 1 Groups B-D
Voltage Range	Source/measure: 0-30V DC
Current Range	Source/measure: 0-24 mA
Pressure Range	Up to 3,000 psi with 700PEx Modules
Temperature Types	RTDs and thermocouples
Frequency Range	1 Hz to 10 kHz
Display Type	Dual display for input and output
Power Supply	Batteries
Weight	1.3 kg (approx.)
