Description

The Fluke 710 Milliamp Loop Valve Tester is engineered for technicians who require precise and efficient testing of HART-enabled smart control valves. This tester features built-in test procedures and an intuitive user interface, allowing users to perform valve tests quickly and easily. The device sources a 4-20 mA signal to move the smart control valve while simultaneously interpreting the valve's HART feedback to verify its movement to the expected position. The ValveTrack™ Software enables further analysis and trending by uploading logged valve tests to a PC.

Key Features:

  • High Accuracy: 0.01% of reading, ensuring precise measurements.
  • HART Communication: Supports a range of HART commands for comprehensive valve testing.
  • User-Friendly Design: Quick-Set rotary encoder knob for fast setup and operation.
  • Integrated 250Ω Resistor: Built-in resistor for HART communication.
  • Multiple Measurement Functions: Source, simulate, and measure mA signals; measure voltage up to 30V DC.
  • Data Logging: Selectable capture intervals from 1 to 60 seconds with a capacity of 9,800 records or 99 sessions.
  • Compact and Durable: Rugged design with a protective holster.
  • Battery Efficient: Operates for up to 40 hours with six AAA batteries.
  • Loop Power: Provides 24V DC loop power.
  • Backlit Display: Ensures clear visibility in various lighting conditions.

Specifications:

Specification Details
Functions mA source, mA simulate, mA read, mA read/loop power, volts read
Measurement Range 0 to 24 mA (current), 0 to 30 V DC (voltage)
Resolution 1 µA (mA ranges), 1 mV (voltage ranges)
Accuracy 0.01% ± 2 counts (@23° ± 5°C)
Operating Temperature -10°C to 55°C (14°F to 131°F)
Humidity 10% to 95% non-condensing
Display 128 x 64 pixels LCD with backlight
Battery Type 6 AAA alkaline batteries
Battery Life Up to 40 hours (continuous use)
Loop Compliance Voltage 24V DC @ 20mA
Over-Voltage Protection 240V AC
Overload Current Protection 28mA DC
EMC Compliance EN61326 Annex A (Portable Instruments)
Dimensions 15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)
Weight 0.3 kg (9.5 oz)
Included Accessories Stackable test lead set, extended tooth alligator clip set, TP220 test probes, AC280 SureGrip™ hook clips, Lemo to USB upload/download cable, ValveTrack™ software (free download), soft case, six AAA batteries (installed), product manual CD-ROM, quick reference guide, safety information

Read more

Product form

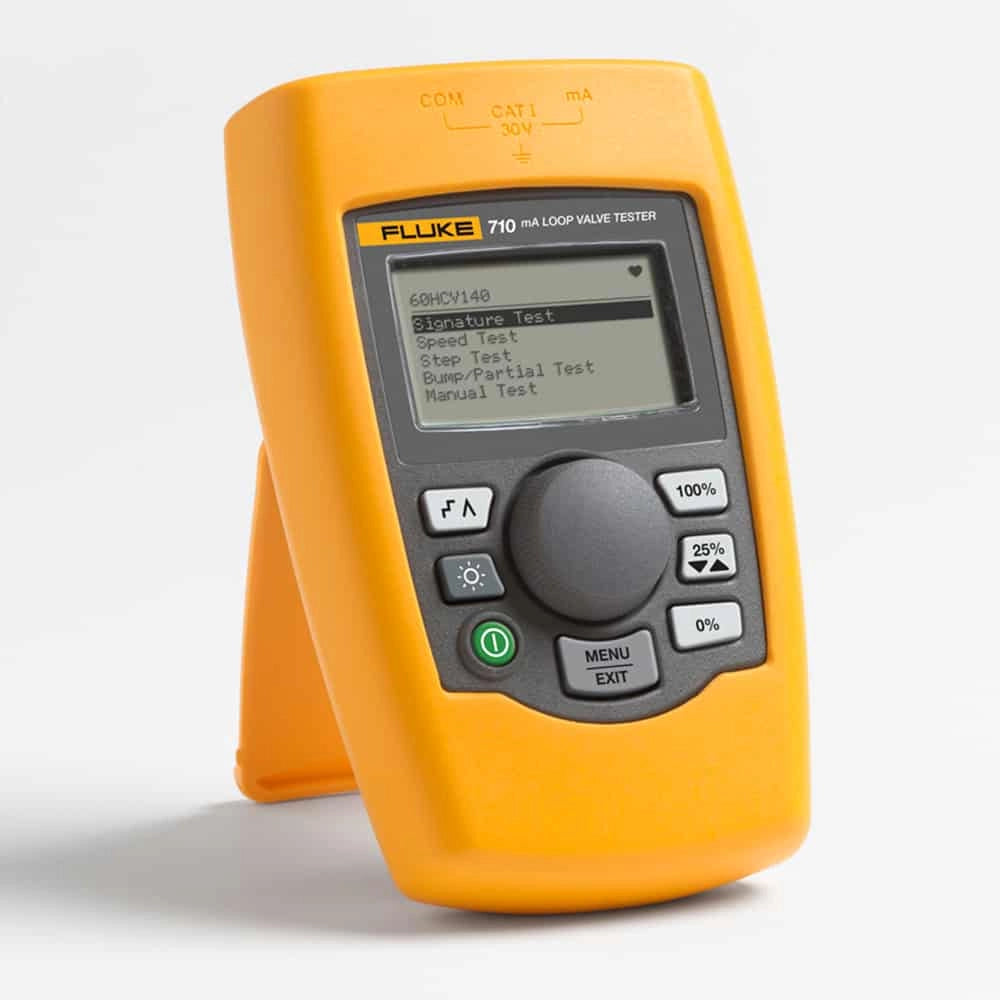

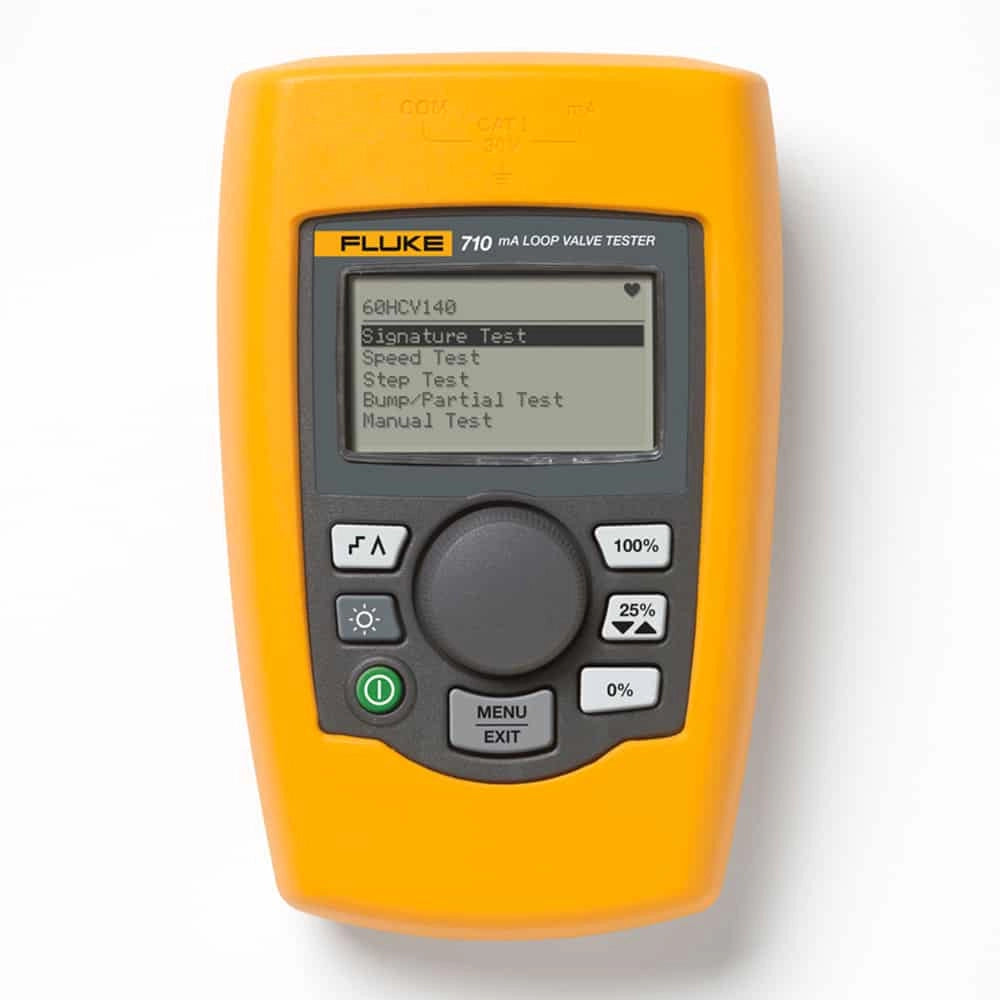

Fluke 710 Milliamp Loop Valve Tester

Fluke

High-accuracy loop valve tester with HART communication capabilities, 0.01% precision, built-in 250Ω resistor, and 24V DC loop power, designed for efficient testing of smart control valves. Read more

    SKU: 4991049

          High-accuracy loop valve tester with HART communication capabilities, 0.01% precision, built-in 250Ω resistor, and 24V DC loop power, designed for efficient testing of smart control valves.
