Description

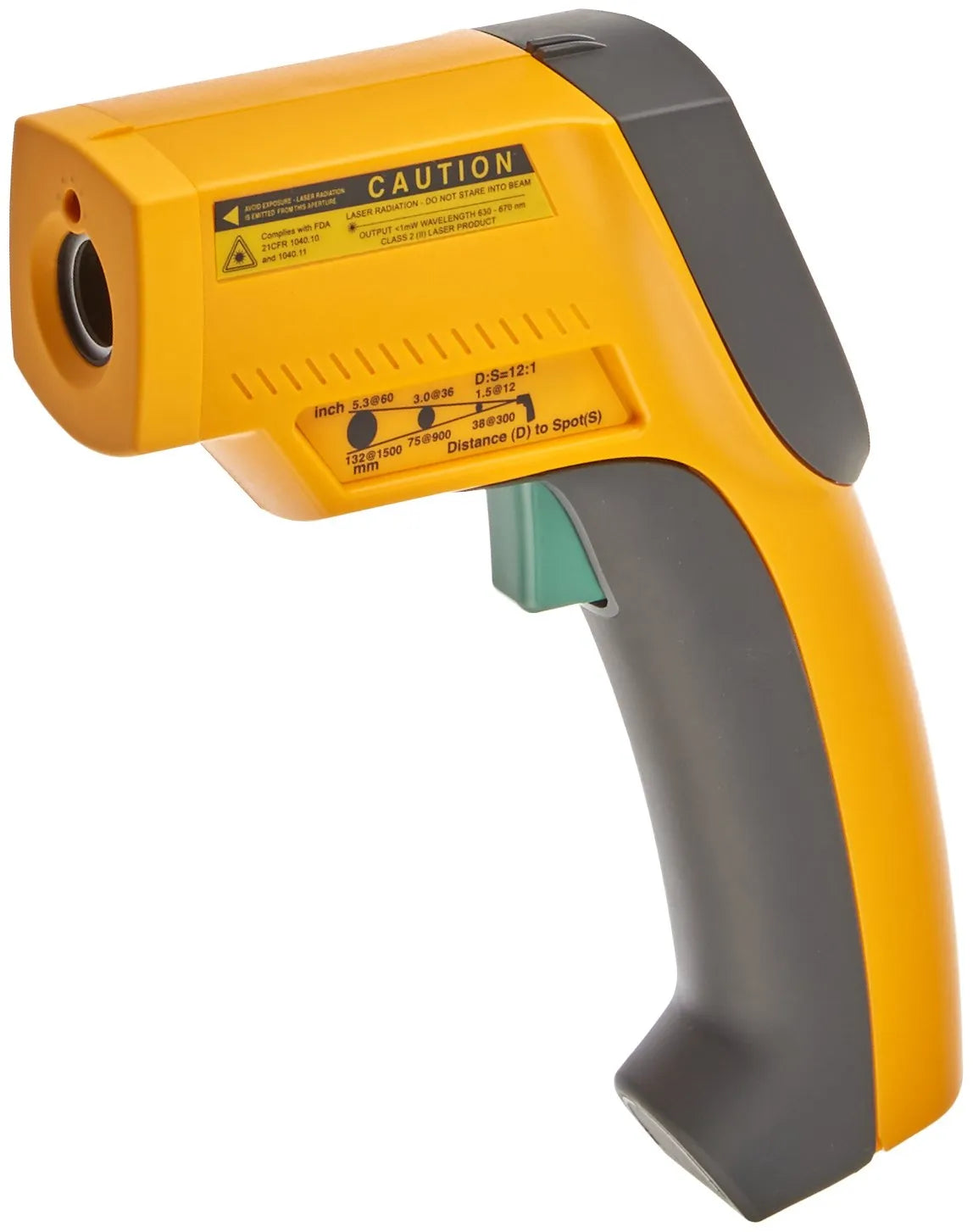

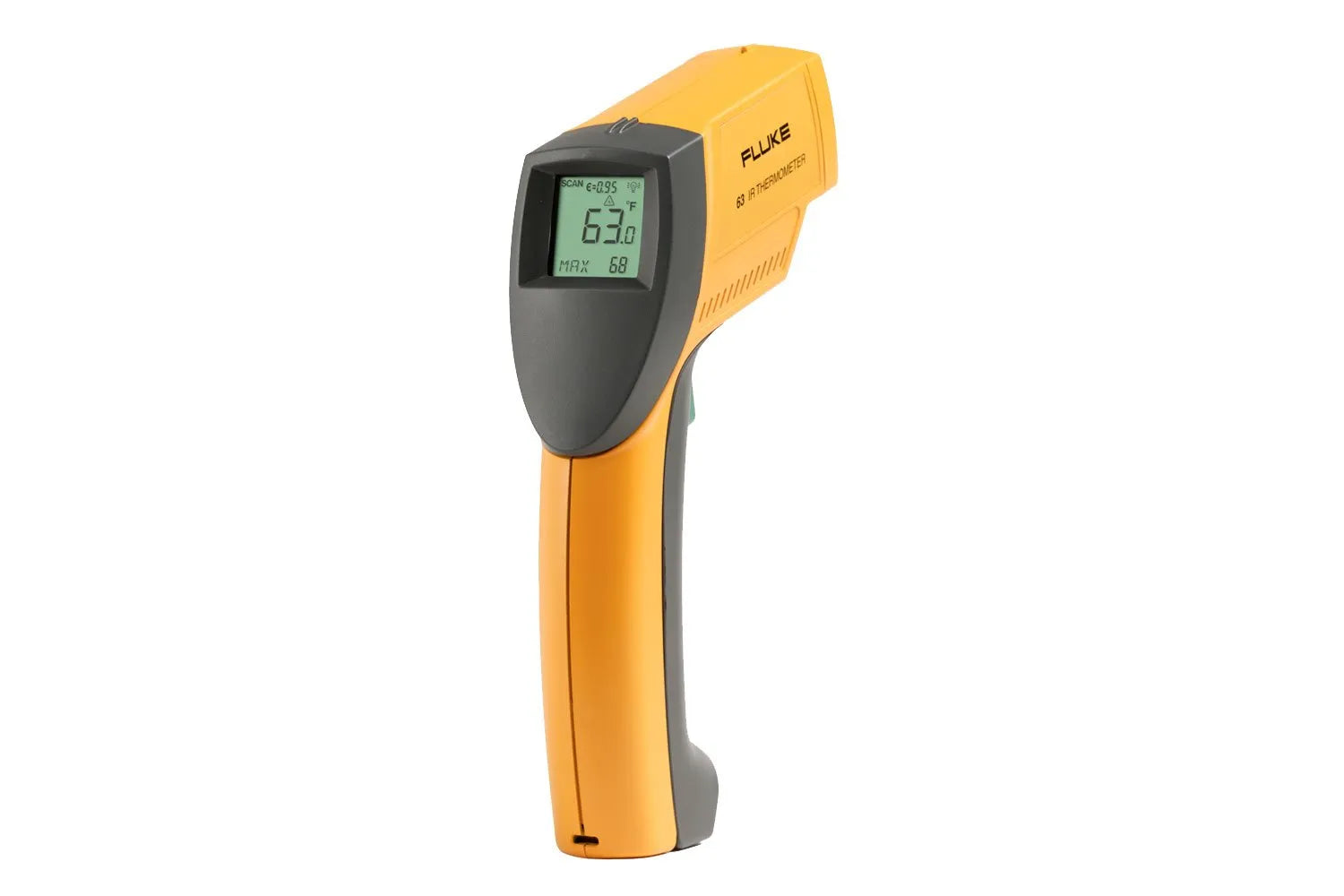

The Fluke 63 Infrared Thermometer is a handheld, non-contact temperature measurement tool designed for professionals requiring quick and accurate readings. With a temperature range of -32°C to 535°C (-25°F to 999°F), it is suitable for monitoring electrical motors, inspecting electrical panels, troubleshooting heating and ventilation problems, and diagnosing automotive issues. The device features a 12:1 distance-to-spot ratio, allowing users to measure smaller targets from a safe distance. Enhanced optics ensure precise measurements in hard-to-reach or hazardous areas. The single-dot laser sighting system guides measurements to the correct target, and the backlit display provides clear temperature readings, including the maximum temperature recorded during a session. Its rugged design and ergonomic grip make it durable and easy to handle in various industrial environments.

Specifications:

Specification	Details
Temperature Range	-32°C to 535°C (-25°F to 999°F)
Accuracy	-32 to -26°C (-25 to -15°F): ±3°C (±5°F) -26 to -18°C (-15 to 0°F): ±2.5°C (±4°F) -18 to 23°C (0 to 73°F): ±2°C (±3°F) 23 to 510°C (73 to 950°F): ±1% of reading or ±1°C (±2°F), whichever is greater Above 510°C (950°F): ±1.5% of reading
Repeatability	±0.5% of reading or ±1°C (±2°F), whichever is greater
Response Time	≤0.5 seconds (95% of reading)
Spectral Response	8 to 14 µm
Emissivity	Preset at 0.95
Distance-to-Spot Ratio	12:1
Display Resolution	0.2°C (0.5°F)
Power	9V alkaline or NiCd battery
Battery Life	10 hours with laser and backlight on; 40 hours with laser and backlight off
Dimensions	200 x 160 x 55 mm (8 x 6 x 2 in)
Weight	320 g (11 oz)
Operating Temperature	0 to 50°C (32 to 120°F)
Storage Temperature	-20 to 60°C (-13 to 158°F) without battery
Relative Humidity	10 to 90%
Display Hold	7 seconds
Backlit Display	Yes
Laser Sighting	Single-dot laser
Max Temperature Display	Yes
Tripod Mount	Yes

Features:

Non-Contact Measurement: Safely measure surface temperatures of hot, hazardous, or hard-to-reach objects without direct contact.
High Accuracy and Repeatability: Provides reliable temperature readings with high accuracy (±1%) and repeatability (±0.5%).
Laser Targeting: Single-dot laser sighting system for precise targeting and accurate measurements.
Backlit Display: Easy-to-read backlit display allows for use in poorly lit areas.
Durable Design: Rugged, ergonomic construction designed to withstand tough industrial environments.
Max Temperature Display: Captures and displays the maximum temperature reading during a measurement session.
Quick Response Time: Fast response time of ≤0.5 seconds ensures efficient data collection.

Fluke 63 Infrared Thermometer

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

The Fluke 63 Infrared Thermometer offers non-contact temperature measurements from -32°C to 535°C with a 12:1 distance-to-spot ratio, ideal for professionals monitoring electrical systems and diagnosing HVAC issues. Read more

SKU: FLUKE-63

The Fluke 63 Infrared Thermometer offers non-contact temperature measurements from -32°C to 535°C with a 12:1 distance-to-spot ratio, ideal for professionals monitoring electrical systems and diagnosing HVAC issues.

Description

The Fluke 63 Infrared Thermometer is a handheld, non-contact temperature measurement tool designed for professionals requiring quick and accurate readings. With a temperature range of -32°C to 535°C (-25°F to 999°F), it is suitable for monitoring electrical motors, inspecting electrical panels, troubleshooting heating and ventilation problems, and diagnosing automotive issues. The device features a 12:1 distance-to-spot ratio, allowing users to measure smaller targets from a safe distance. Enhanced optics ensure precise measurements in hard-to-reach or hazardous areas. The single-dot laser sighting system guides measurements to the correct target, and the backlit display provides clear temperature readings, including the maximum temperature recorded during a session. Its rugged design and ergonomic grip make it durable and easy to handle in various industrial environments.

Specifications:

Specification	Details
Temperature Range	-32°C to 535°C (-25°F to 999°F)
Accuracy	-32 to -26°C (-25 to -15°F): ±3°C (±5°F) -26 to -18°C (-15 to 0°F): ±2.5°C (±4°F) -18 to 23°C (0 to 73°F): ±2°C (±3°F) 23 to 510°C (73 to 950°F): ±1% of reading or ±1°C (±2°F), whichever is greater Above 510°C (950°F): ±1.5% of reading
Repeatability	±0.5% of reading or ±1°C (±2°F), whichever is greater
Response Time	≤0.5 seconds (95% of reading)
Spectral Response	8 to 14 µm
Emissivity	Preset at 0.95
Distance-to-Spot Ratio	12:1
Display Resolution	0.2°C (0.5°F)
Power	9V alkaline or NiCd battery
Battery Life	10 hours with laser and backlight on; 40 hours with laser and backlight off
Dimensions	200 x 160 x 55 mm (8 x 6 x 2 in)
Weight	320 g (11 oz)
Operating Temperature	0 to 50°C (32 to 120°F)
Storage Temperature	-20 to 60°C (-13 to 158°F) without battery
Relative Humidity	10 to 90%
Display Hold	7 seconds
Backlit Display	Yes
Laser Sighting	Single-dot laser
Max Temperature Display	Yes
Tripod Mount	Yes

Features:

Non-Contact Measurement: Safely measure surface temperatures of hot, hazardous, or hard-to-reach objects without direct contact.
High Accuracy and Repeatability: Provides reliable temperature readings with high accuracy (±1%) and repeatability (±0.5%).
Laser Targeting: Single-dot laser sighting system for precise targeting and accurate measurements.
Backlit Display: Easy-to-read backlit display allows for use in poorly lit areas.
Durable Design: Rugged, ergonomic construction designed to withstand tough industrial environments.
Max Temperature Display: Captures and displays the maximum temperature reading during a measurement session.
Quick Response Time: Fast response time of ≤0.5 seconds ensures efficient data collection.
