Description

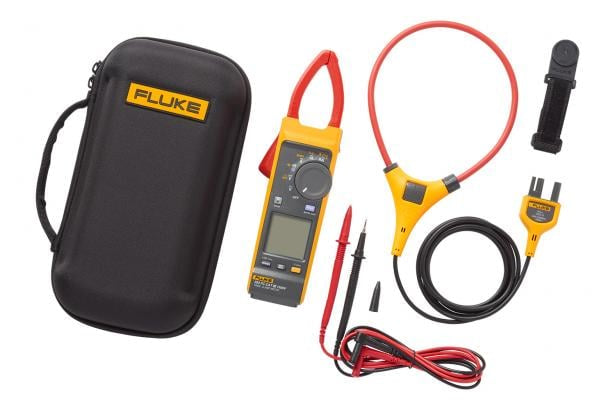

The Fluke 393 FC CAT III 1500 V True-RMS Solar Clamp Meter is engineered for professionals working in high-voltage DC environments, particularly in solar photovoltaic (PV) installations. It measures up to 1500 V DC and 1000 V AC using test leads, and up to 999.9 A DC or AC through the clamp jaw. The included iFlex® flexible current probe extends AC current measurement capabilities up to 2500 A, providing enhanced flexibility in tight spaces. The meter features a thin jaw design, allowing access to cables in crowded combiner boxes, and is rated IP54, making it suitable for outdoor use. Additional functionalities include DC power measurement displaying readings in kilowatts, an audio polarity indicator to prevent accidental miswires, and visual continuity that provides a bright green light in the display, ideal for working in dark or noisy environments. The Fluke 393 FC is safety rated for CAT III 1500 V, ensuring user protection during high-voltage measurements.

Specification :

Specification Value
DC Voltage Range Up to 1500 V
AC Voltage Range Up to 1000 V
AC Current Range Up to 1000 A (2500 A with iFlex®)
DC Current Range Up to 1000 A
DC Power Measurement Displays in kilowatts
Resistance Measurement Up to 60,000 Ω
Frequency Measurement 5 Hz to 500 Hz
Safety Rating CAT III 1500 V
IP Rating IP54
Wireless Connectivity Fluke Connect® compatibility
Dimensions 293 x 96 x 52 mm
Weight 870 g

Read more

Product form

Fluke 393 FC CAT III 1500 V True-RMS Solar Clamp Meter with iFlex

Fluke

Specialized clamp meter designed for solar photovoltaic (PV) installations, measuring up to 1500 V DC and 1000 V AC, with a thin jaw for accessing cables in crowded combiner boxes, includes iFlex® flexible current probe extending AC current measurements up to 2500 A, and rated IP54 for outdoor use. Read more

    SKU: 5274900

      Specialized clamp meter designed for solar photovoltaic (PV) installations, measuring up to 1500 V DC and 1000 V AC, with a thin jaw for accessing cables in crowded combiner boxes, includes iFlex® flexible current probe extending AC current measurements up to 2500 A, and rated IP54 for outdoor use.

      Description

      The Fluke 393 FC CAT III 1500 V True-RMS Solar Clamp Meter is engineered for professionals working in high-voltage DC environments, particularly in solar photovoltaic (PV) installations. It measures up to 1500 V DC and 1000 V AC using test leads, and up to 999.9 A DC or AC through the clamp jaw. The included iFlex® flexible current probe extends AC current measurement capabilities up to 2500 A, providing enhanced flexibility in tight spaces. The meter features a thin jaw design, allowing access to cables in crowded combiner boxes, and is rated IP54, making it suitable for outdoor use. Additional functionalities include DC power measurement displaying readings in kilowatts, an audio polarity indicator to prevent accidental miswires, and visual continuity that provides a bright green light in the display, ideal for working in dark or noisy environments. The Fluke 393 FC is safety rated for CAT III 1500 V, ensuring user protection during high-voltage measurements.

      Specification :

      Specification Value
      DC Voltage Range Up to 1500 V
      AC Voltage Range Up to 1000 V
      AC Current Range Up to 1000 A (2500 A with iFlex®)
      DC Current Range Up to 1000 A
      DC Power Measurement Displays in kilowatts
      Resistance Measurement Up to 60,000 Ω
      Frequency Measurement 5 Hz to 500 Hz
      Safety Rating CAT III 1500 V
      IP Rating IP54
      Wireless Connectivity Fluke Connect® compatibility
      Dimensions 293 x 96 x 52 mm
      Weight 870 g
