Description

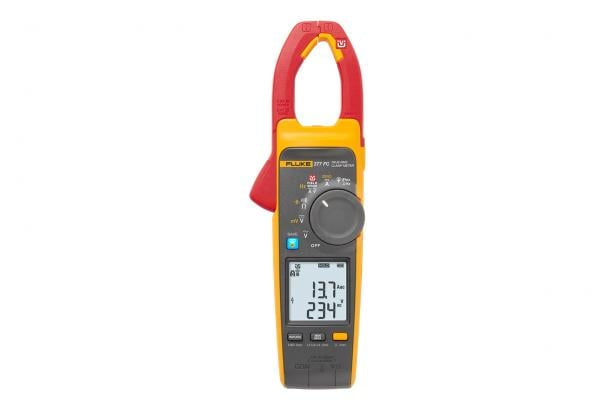

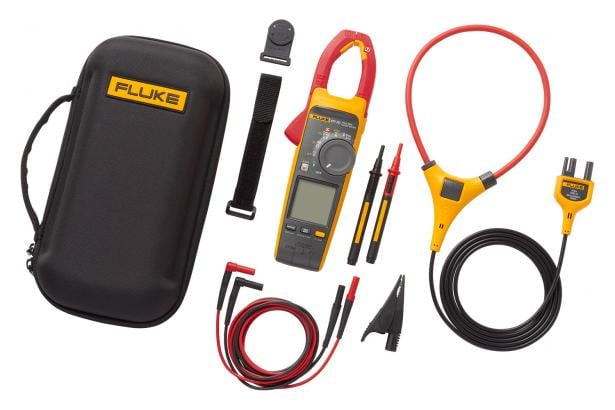

The Fluke 378 FC True-RMS Non-Contact Voltage AC/DC Clamp Meter is designed for professionals seeking safer and faster testing methods. Utilizing FieldSense™ technology, it allows for accurate voltage and current measurements without direct contact with live conductors. Simply clip the black test lead to any electrical ground, place the clamp jaw around the conductor, and reliable measurements are displayed. The included iFlex® flexible current probe expands AC current measurement capabilities up to 2500 A, providing enhanced flexibility in tight spaces. The meter features a unique power quality (PQ) function that automatically detects and displays power quality issues related to current, voltage, or power factor, enabling quick determination of upstream supply or downstream equipment problems. With Fluke Connect® wireless connectivity, users can transmit measurements to smartphones or tablets for real-time collaboration and data logging. The Fluke 378 FC is safety rated for CAT IV 600 V and CAT III 1000 V environments, ensuring user protection during high-voltage measurements.

Specification :

Specification Value
AC Current Range Up to 1000 A (2500 A with iFlex®)
DC Current Range Up to 1000 A
AC Voltage Range Up to 1000 V
DC Voltage Range Up to 1000 V
Resistance Range Up to 60,000 Ω
Frequency Measurement 5 Hz to 500 Hz
iFlex® Compatibility Yes, included
Power Quality Detection Yes, detects issues with current, voltage, and power factor
Safety Rating CAT IV 600 V / CAT III 1000 V
Wireless Connectivity Fluke Connect® compatibility
Display Backlit LCD
Dimensions 256 x 100 x 47 mm
Weight 600 g
