Description

The Fluke 289 is engineered to meet the demands of professionals dealing with intricate electrical systems. Its large 50,000-count, ¼ VGA dot matrix display with a white backlight ensures clear visibility of multiple measurement parameters simultaneously. The built-in data logger and TrendCapture™ feature allow users to record and graphically review up to 10,000 events and readings directly on the device, facilitating quick identification of anomalies without the need for a PC. The multimeter's expanded memory can store up to 15,000 recorded events, enabling extended monitoring sessions. Additional functionalities include a selectable AC filter (smoothing mode) to stabilize rapidly changing or noisy signals, adjustable recording and auto-hold thresholds, and a low-pass filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment. The Fluke 289 is also compatible with the Fluke Connect® mobile app (requires the Fluke ir3000 FC Infrared Connector, sold separately), allowing for wireless data sharing and real-time analysis.

Specifications:

Specification	Details
Voltage Range	Up to 1000 V AC/DC
Current Range	Up to 10 A (20 A for 30 seconds)
Frequency Range	0.01 Hz to 100 kHz
Capacitance Range	1 nF to 100 mF
Resistance Range	Up to 500 MΩ
Temperature Range	-200 °C to 1350 °C (-328 °F to 2462 °F)
Safety Compliance	CAT III 1000 V, CAT IV 600 V
Data Logging Memory	Up to 15,000 recorded events
Display Resolution	50,000 counts
Battery Life	Approximately 200 hours
Dimensions	211 x 98 x 52 mm (8.3 x 3.9 x 2.0 inches)
Weight	870 g (1.9 lbs)

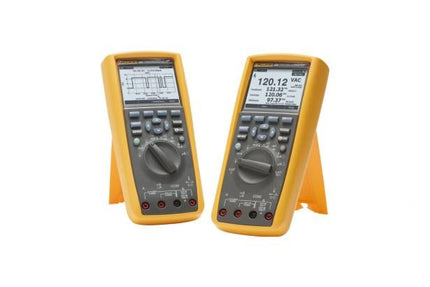

Fluke 289 True-RMS Industrial Logging Multimeter

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Advanced multimeter with data logging and TrendCapture™ for efficient troubleshooting in industrial applications. Read more

SKU: 3947801

Shipped today? Order within: Dec 13, 2025 17:00:00 +0300

Shipped today? Order within: Dec 13, 2025 17:00:00 +0300

Advanced multimeter with data logging and TrendCapture™ for efficient troubleshooting in industrial applications.

Description

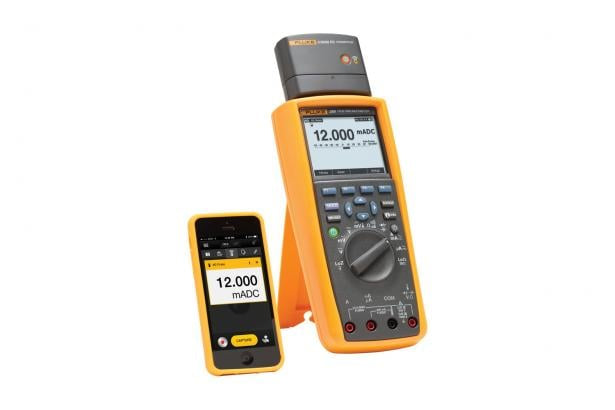

The Fluke 289 is engineered to meet the demands of professionals dealing with intricate electrical systems. Its large 50,000-count, ¼ VGA dot matrix display with a white backlight ensures clear visibility of multiple measurement parameters simultaneously. The built-in data logger and TrendCapture™ feature allow users to record and graphically review up to 10,000 events and readings directly on the device, facilitating quick identification of anomalies without the need for a PC. The multimeter's expanded memory can store up to 15,000 recorded events, enabling extended monitoring sessions. Additional functionalities include a selectable AC filter (smoothing mode) to stabilize rapidly changing or noisy signals, adjustable recording and auto-hold thresholds, and a low-pass filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment. The Fluke 289 is also compatible with the Fluke Connect® mobile app (requires the Fluke ir3000 FC Infrared Connector, sold separately), allowing for wireless data sharing and real-time analysis.

Specifications:

Specification	Details
Voltage Range	Up to 1000 V AC/DC
Current Range	Up to 10 A (20 A for 30 seconds)
Frequency Range	0.01 Hz to 100 kHz
Capacitance Range	1 nF to 100 mF
Resistance Range	Up to 500 MΩ
Temperature Range	-200 °C to 1350 °C (-328 °F to 2462 °F)
Safety Compliance	CAT III 1000 V, CAT IV 600 V
Data Logging Memory	Up to 15,000 recorded events
Display Resolution	50,000 counts
Battery Life	Approximately 200 hours
Dimensions	211 x 98 x 52 mm (8.3 x 3.9 x 2.0 inches)
Weight	870 g (1.9 lbs)
