Description

The Fluke 289 FlukeView® Forms Combo Kit is engineered for professionals requiring precise and comprehensive diagnostics in industrial settings.
With its built-in data logger and TrendCapture capability, the Fluke 289 allows for monitoring equipment performance over time, aiding in the identification of intermittent issues.
The included FlukeView® Forms software enables users to overlay logged data from multiple sessions or devices, facilitating the analysis of cause-and-effect relationships and condition monitoring.

Key Features:

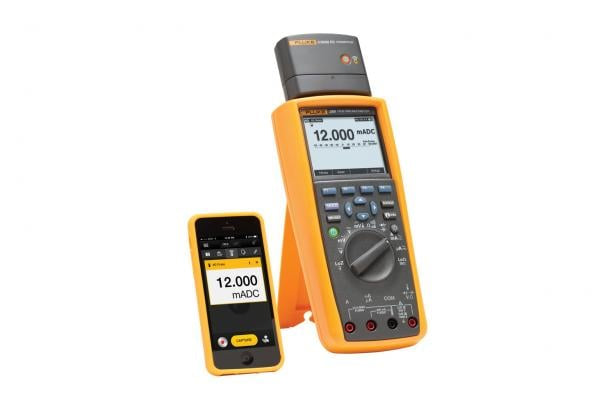

Compatibility with the Fluke Connect® mobile app and all Fluke FC enabled test tools using the optional ir3000 FC infrared connector.
TrendCapture feature that graphically displays logged data sessions to quickly identify anomalies.
Selectable AC filter (smoothing mode) for steadier readings in rapidly changing or noisy signals.
Low Pass filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment.
Low impedance voltage function (LoZ Volts) to eliminate ghost voltages.
On-board help screens for measurement functions, providing quick guidance during use.
Real-time clock for automatic time stamping of saved readings.
True-RMS AC voltage and current measurements for accurate readings on non-linear signals.
Peak capture to record transients as fast as 250 μs.

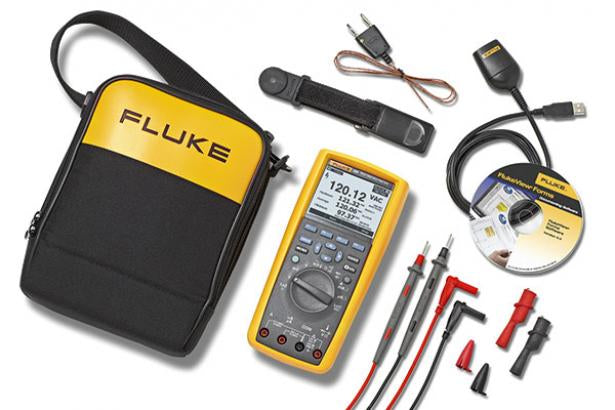

Premium test leads and alligator clips included for enhanced measurement capabilities.

Specifications:

Specification	Range
DC Voltage	50.000 mV to 1000.0 V
AC Voltage	50.000 mV to 1000.0 V
DC Current	500.00 μA to 10.000 A
AC Current	500.00 μA to 10.000 A
Resistance	50.000 Ω to 500.0 MΩ
Capacitance	1.000 nF to 100 mF
Frequency	99.999 Hz to 999.99 kHz
